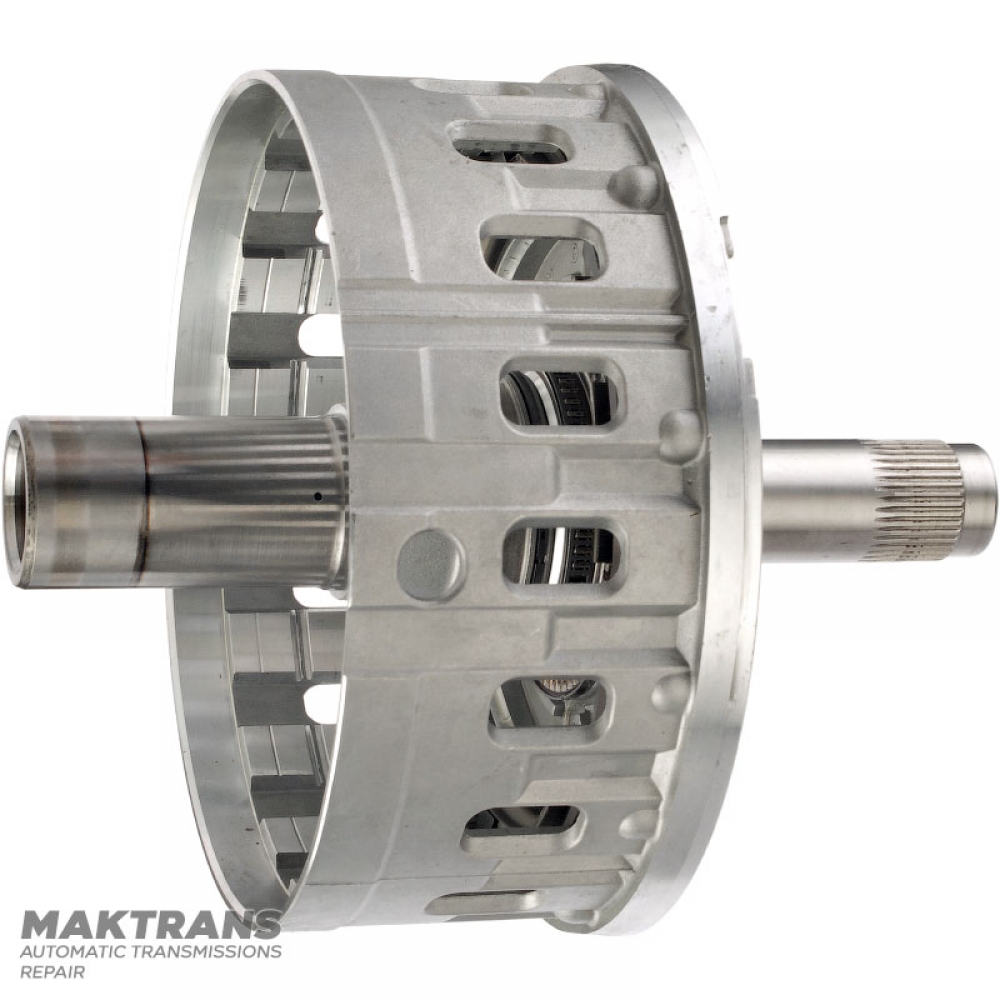

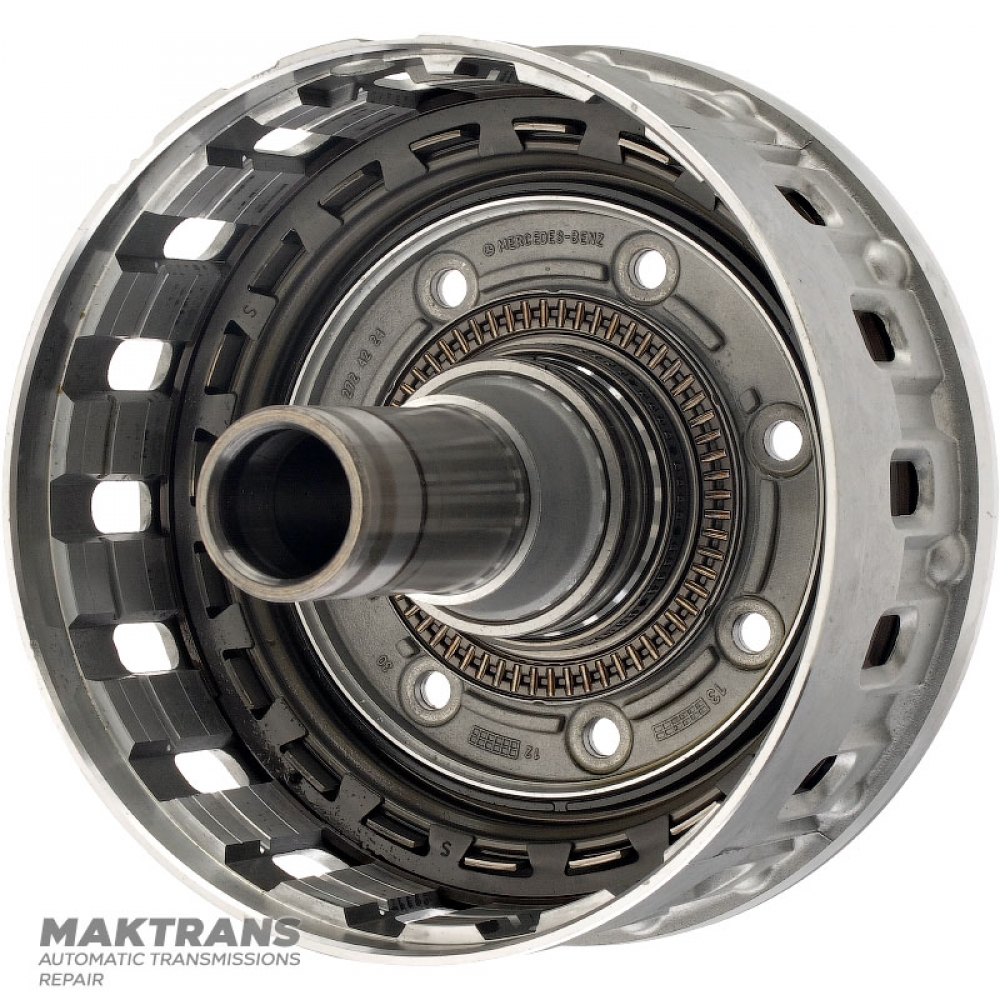

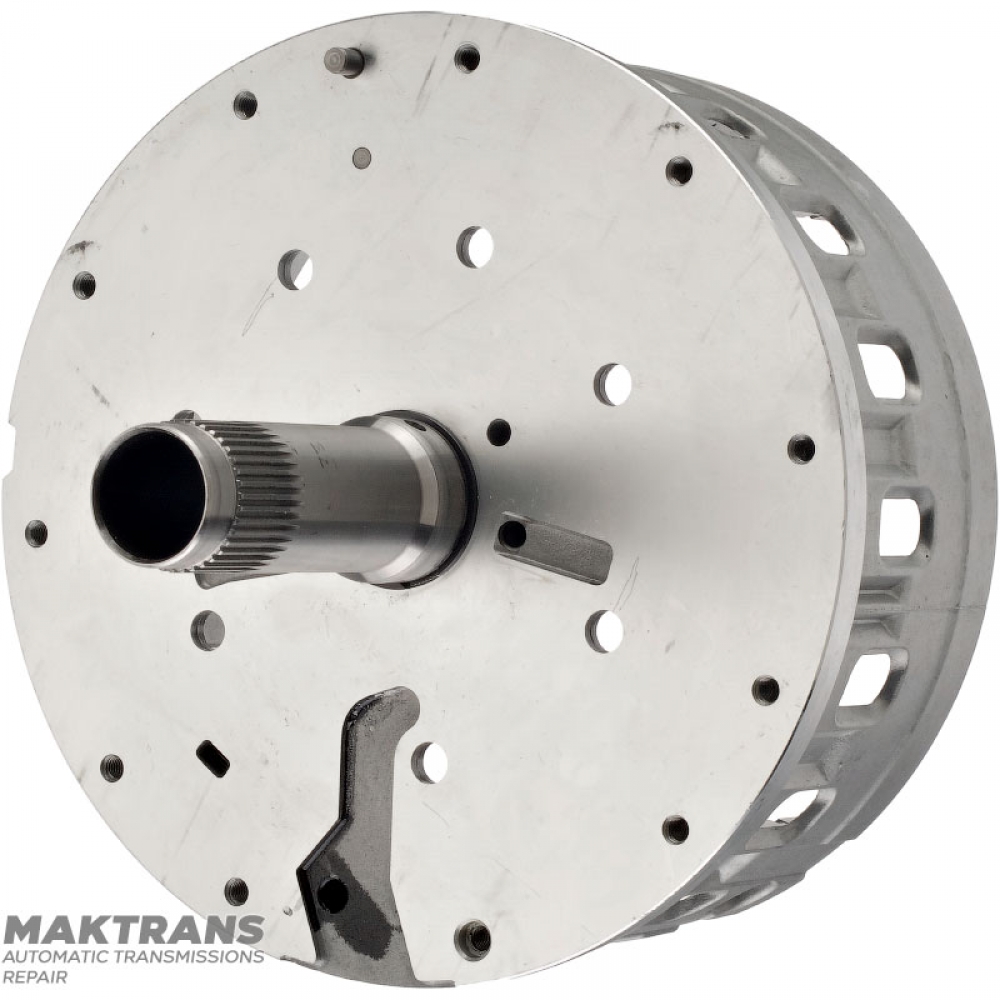

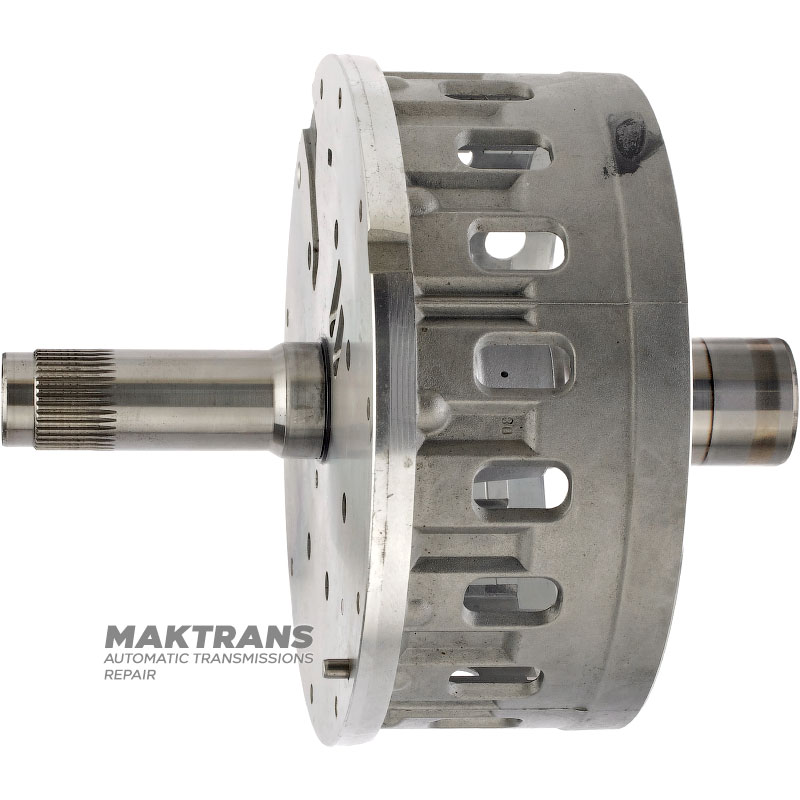

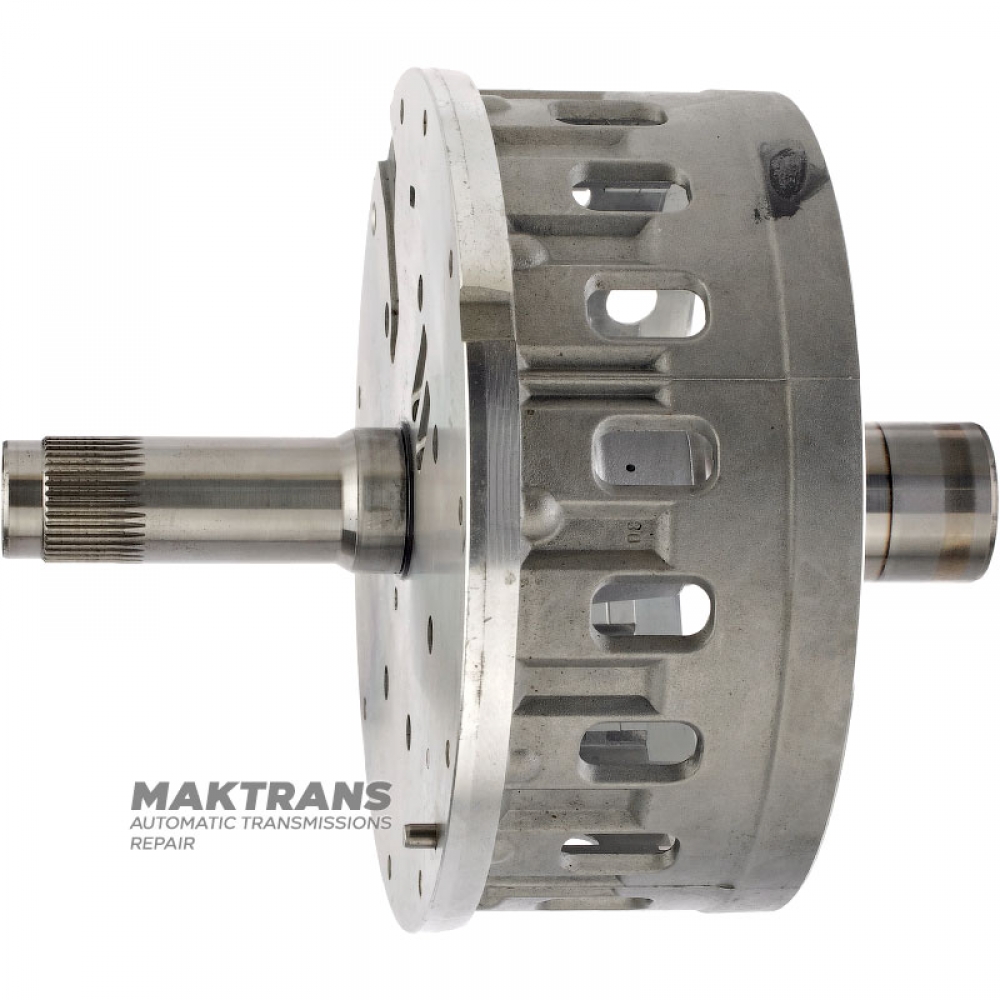

Oil Pump Hub / Clutch Basket B1 Brake (without discs) Mercedes-Benz 722.9 R2202724224, A2202724224 - Empty, without discs, (overall height 250 mm, stator height (front) 101 mm))

• Overall height - 249 mm;

Front side:

• Stator height - 101 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 31.75 mm;

The outer diameter of the aluminum body is 217.95 mm;


Back side:

• Stator height (from aluminum housing) - 142 mm;
• Outer diameter - 42 mm;
• Number of Teflon rings - 2 pcs.;
• Outer diameter over Teflon rings - 65.55 mm;

B1 Brake Drum:

• Height from piston to retaining ring - 24 mm;
