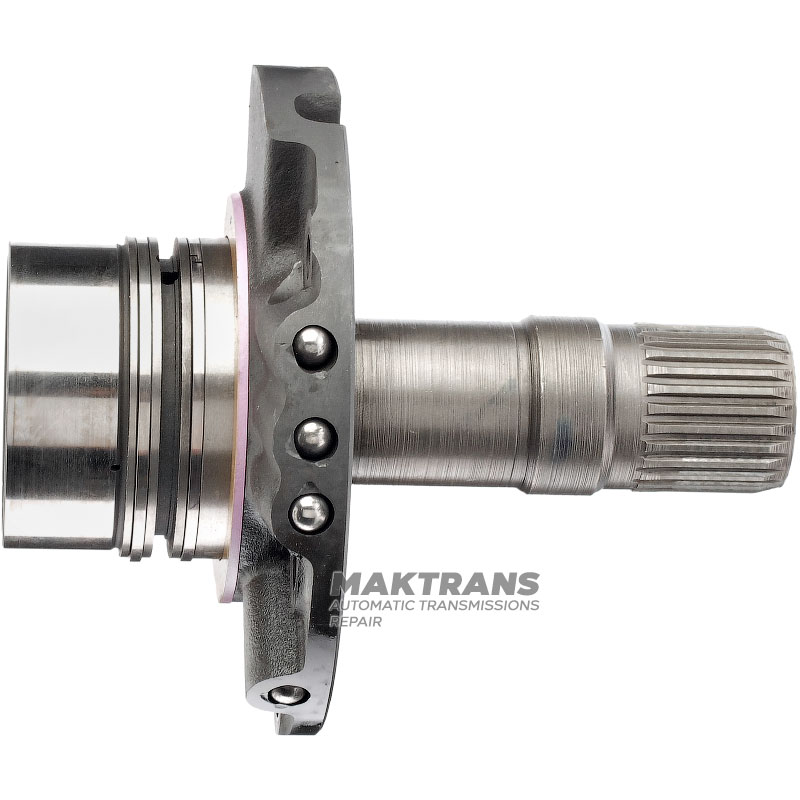

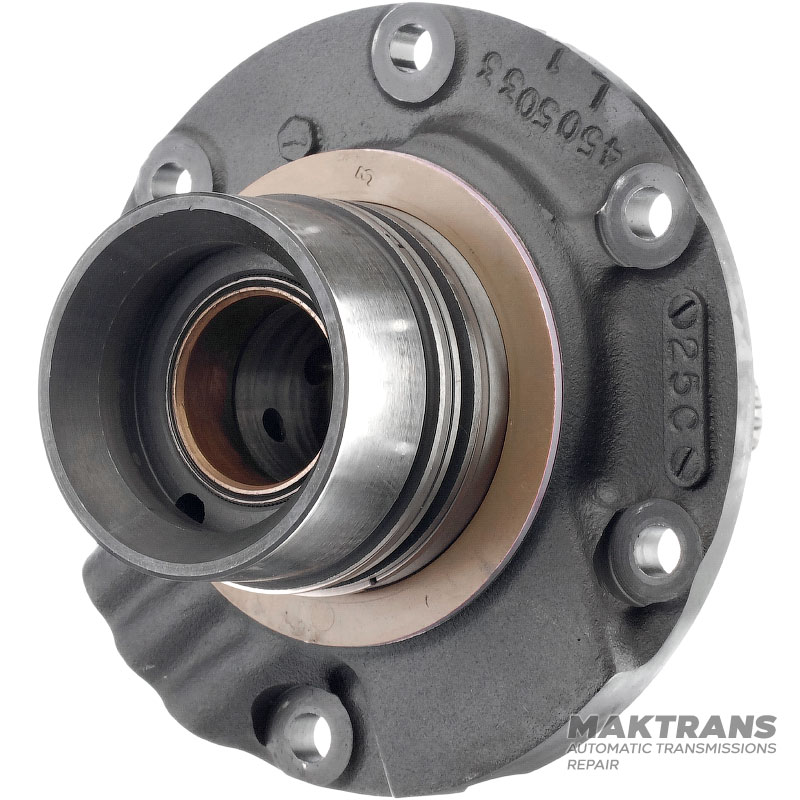

Oil pump hub DODGE CHRYSLER 47RE 4617625 3743689 - height 162 mm, 27 splines (outer Ø 35 mm)

• Total height - 162 mm;
• Number of splines - 27 pcs.;
• The outer diameter of the spline part is 35 mm;
• Stator height (front side) - 99 mm;
• Outer diameter of the flange - 137.55 mm;
• Stator height (rear side) - 47 mm;
• The outer diameter of the working part of the stator is 63.25 mm;
• Outer diameter of cast iron split rings - 66.05 mm;
• Number of cast iron sealing rings - 2 pcs.;

Tags: 461 7625 4617625 461-7625
