Main Specifications
Condition (used, new):
used and inspected
Type:

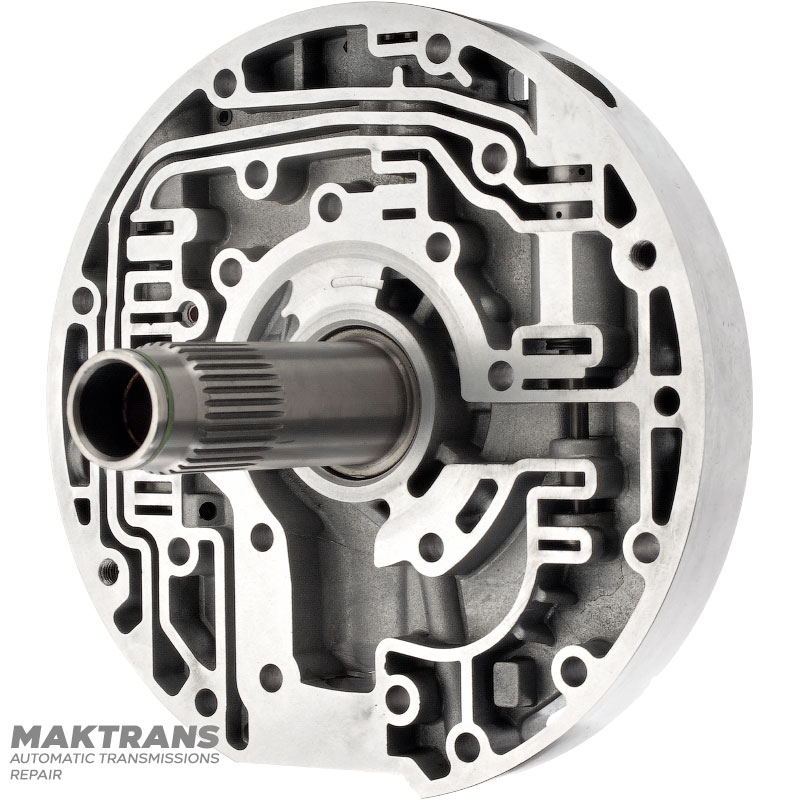

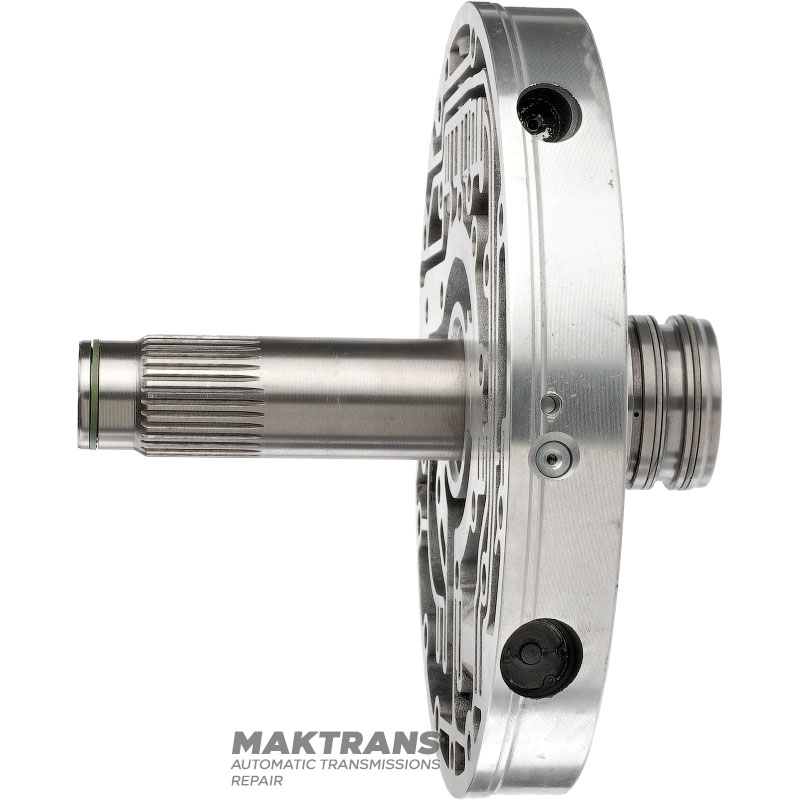

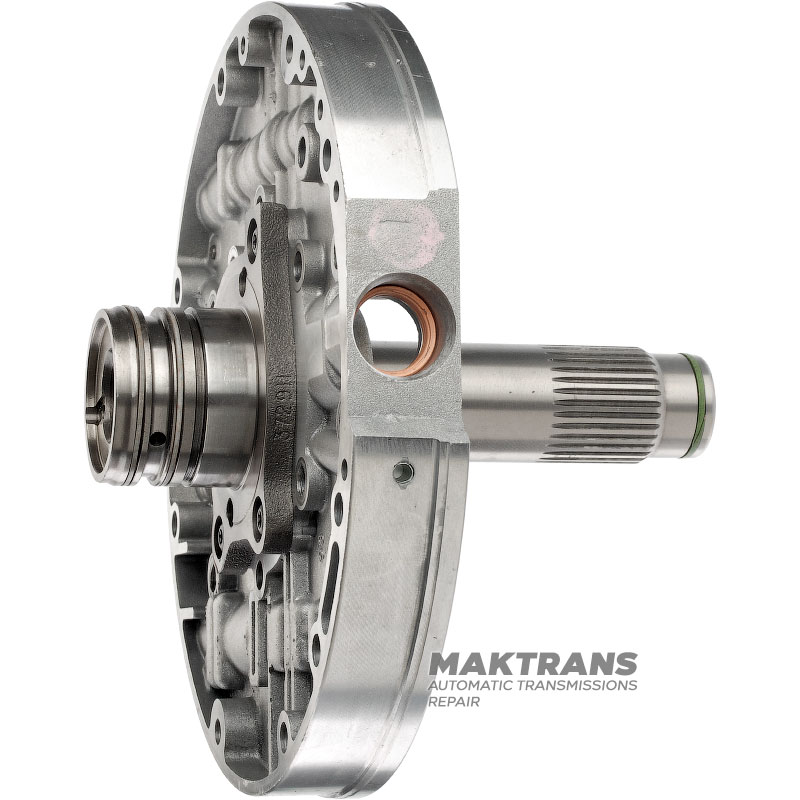

Oil pump hub
Marking:
F81P-7B324-AA, RF-F81P-7B324-AA
If you order more than 3 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 3 pcs. |
  |
| Ukraine | 2 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)
- Overall height - 212 mm;
- Outer diameter of valve part - 267.20 mm;
- Marking - RF-F81P-7B324-AA;
Front side:
- Stator height - 127 mm;
- Number of splines - 32 pcs.;
- Outer diameter of spline part - 41.10 mm;
- Inner diameter of the sleeve - 25.60 mm;
Back side:
- Overall height - 46 mm;
- The inner diameter of the sleeve is 25.75 mm;
- Outer diameter of the working part - 59.95 mm;
- Outer diameter over Teflon rings - 59.60 mm;
