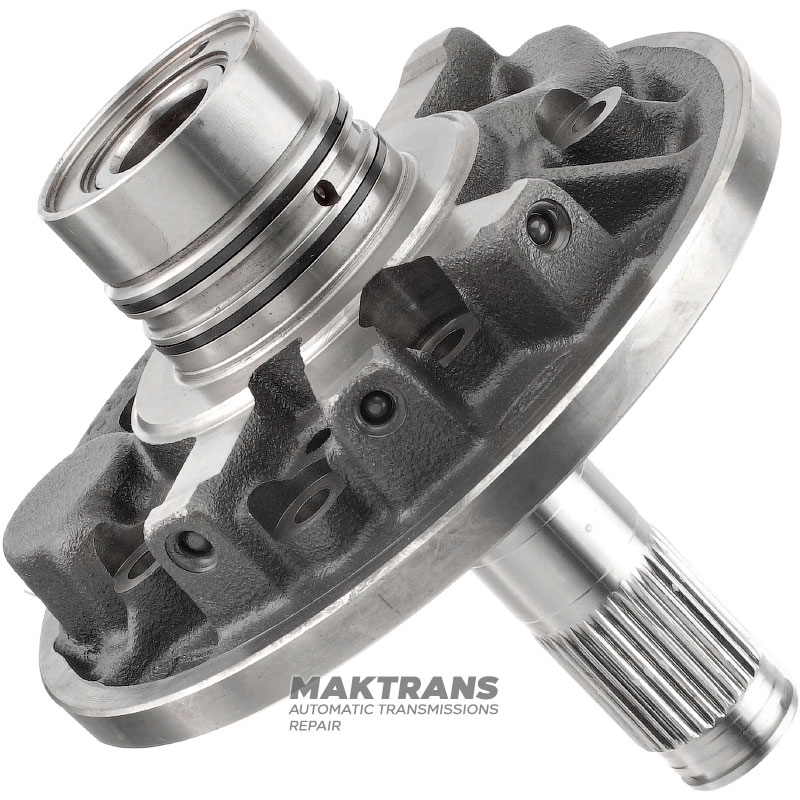

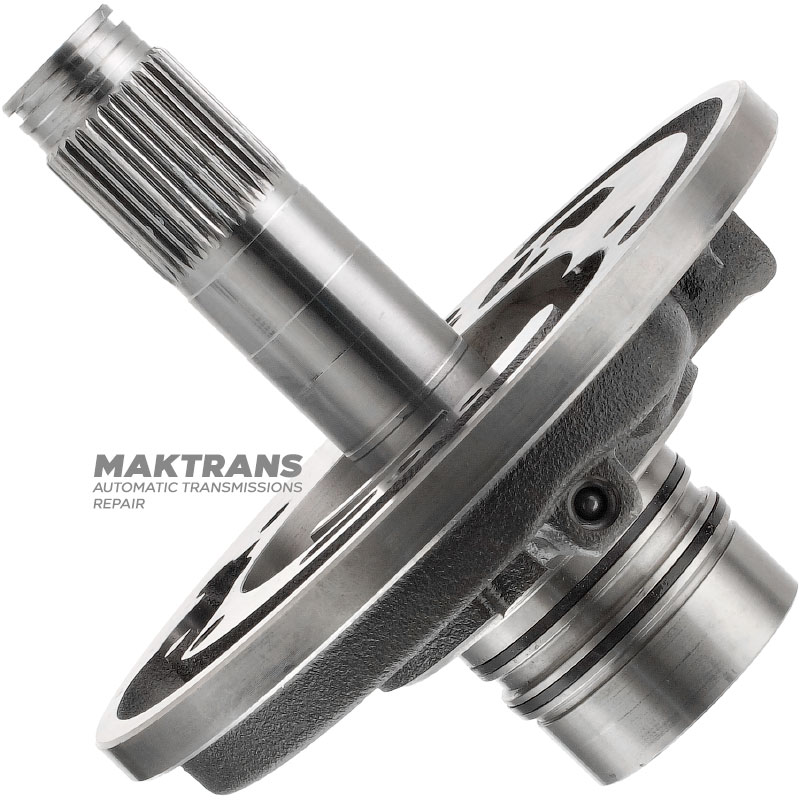

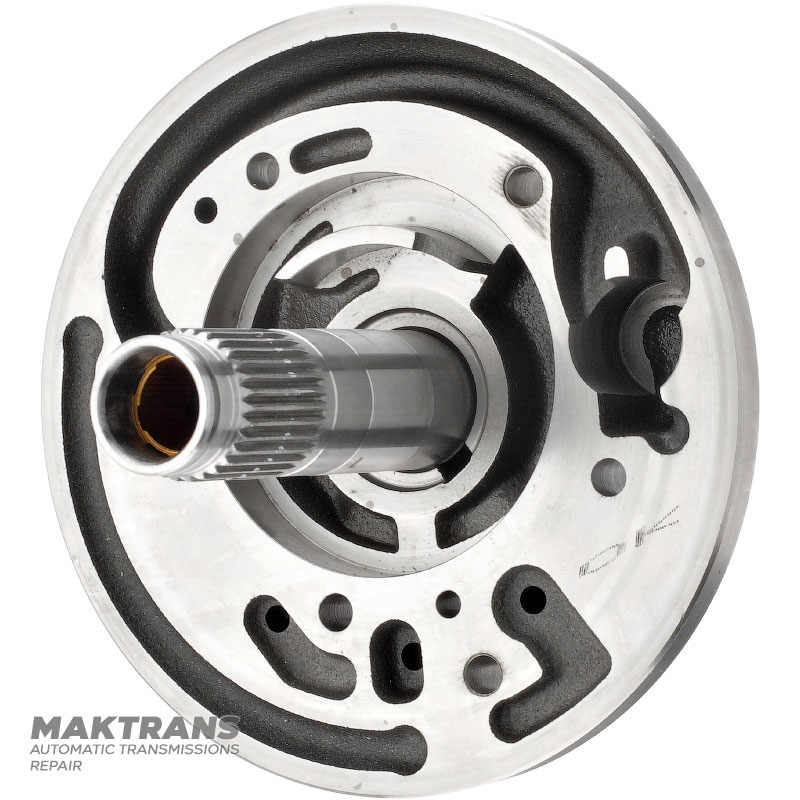

Oil pump hub FORD 5R55N, 5R55S, 5R55W - XW4P-7D043-G

Front side:

• Overall height - 178 mm;
• Number of splines - 30 pcs.;
• The outer diameter of the splined part is 32.65 mm;
• Outer body diameter - 182.65 mm;

Back side:

• Overall height - 43 mm;
• Outer diameter over Teflon rings - 59.15 mm;
• Outer diameter of the working part - 56.60 mm;
• Inner diameter of the sleeve - 19 mm;
