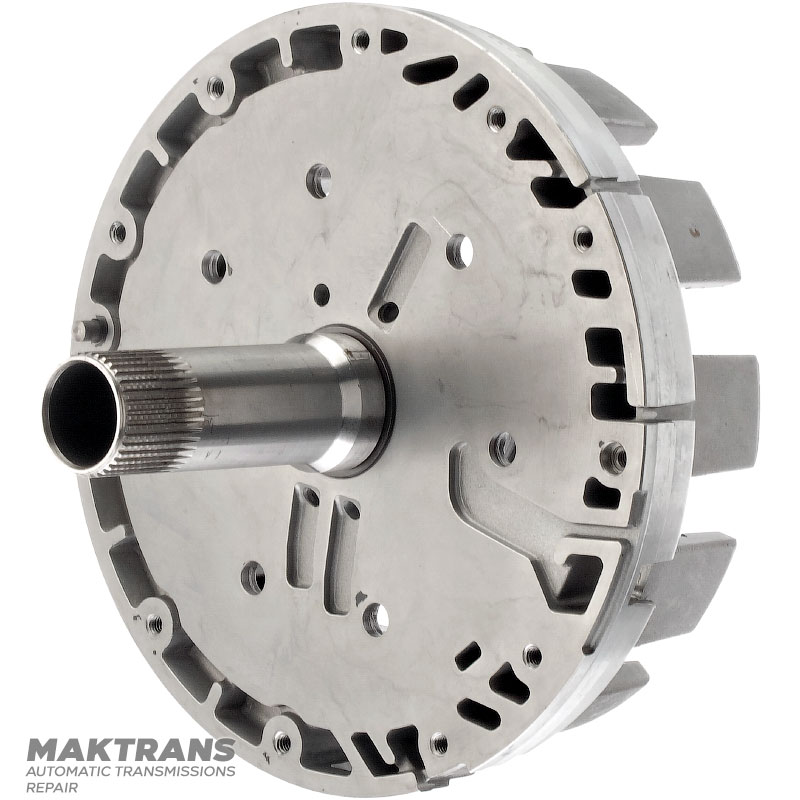

Oil Pump Hub JEEP,DODGE 722.6 – B1 Clutch (2 Friction Discs)

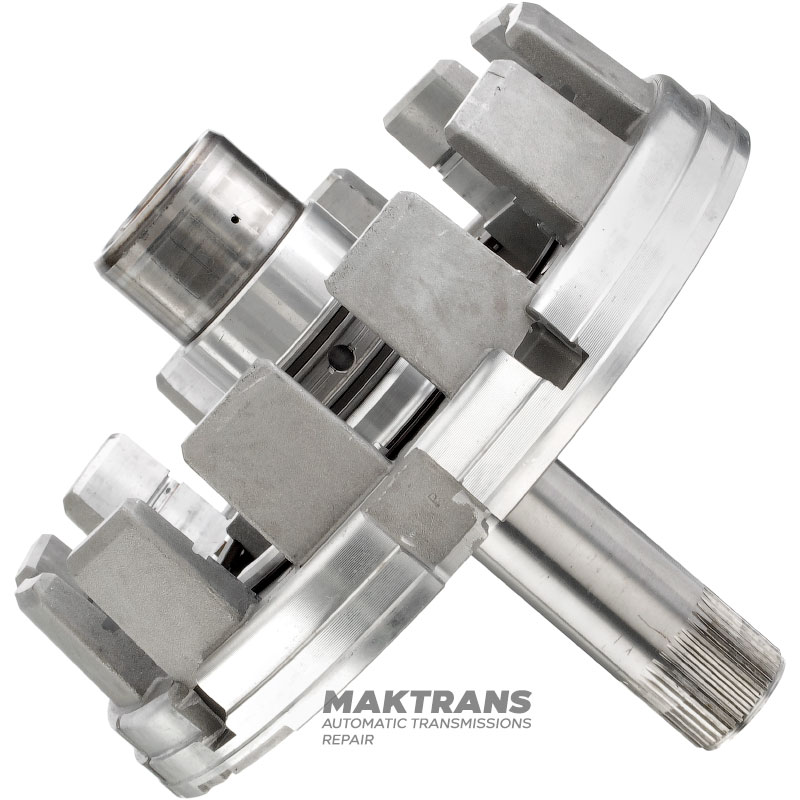

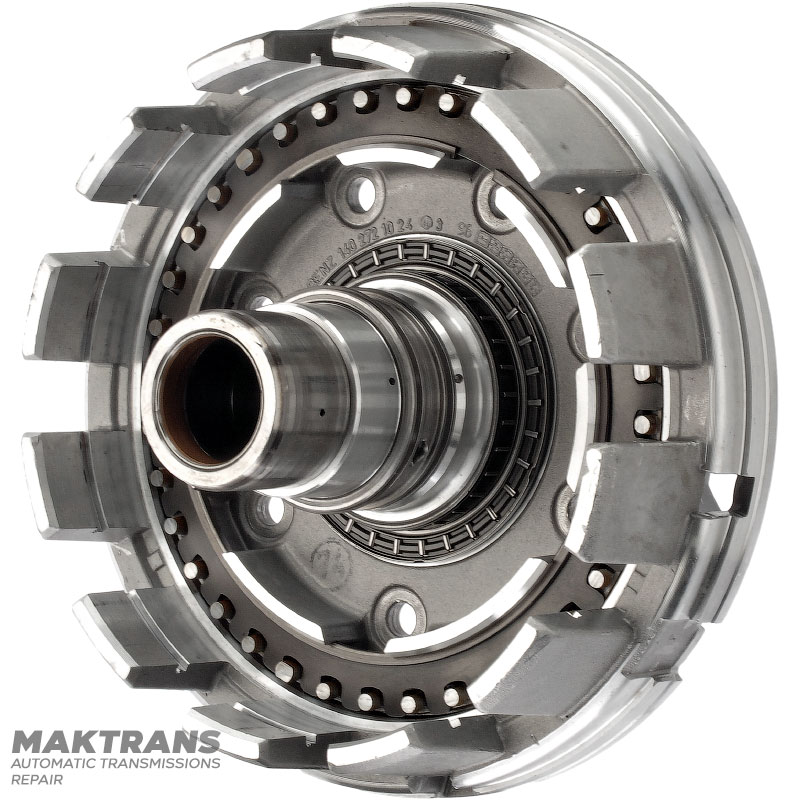

Hub, Drum B1 Clutch:

• Overall height - 192 mm;

Front side:

• Stator height - 95 mm;
• Number of splines on the stator - 38 pcs.;
• The outer diameter of the splined part is 31.95 mm;

Back side:

• Stator height - 90 mm;
• Inner diameter of the sleeve - 31.55 mm;
• Outer diameter - 45.25 mm;
• Outer diameter over Teflon rings - 57.40 mm;

B1 Clutch Drum:

• Height from piston to retaining ring - 16 mm;

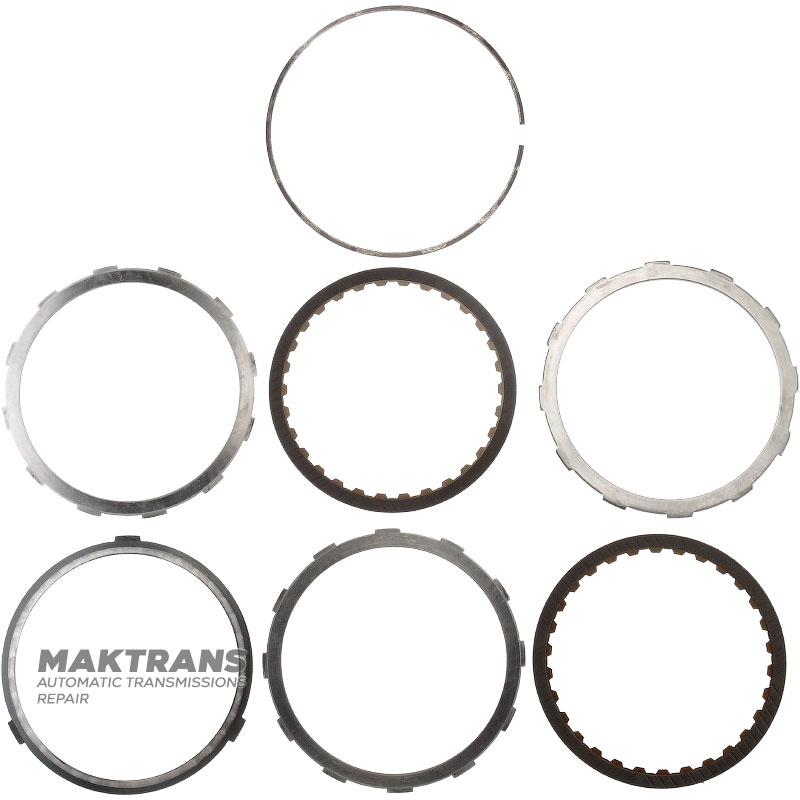

B1 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 13.90 mm;

Support disk:

• Thickness - 3.95 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.10 mm;
• Outer diameter - 172.20 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 2.75 mm;
• Inner diameter - 154 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 2 pcs.;

Spring disc:

• Thickness - 1.55 mm;
• Inner diameter - 154 mm;
• Number of teeth - 3 pcs.;
• Number of discs in the set - 1 pc.;

Tags: A1402721024, A140-272-03-26, A1402720326, A140-272-00-25, A1402720025
