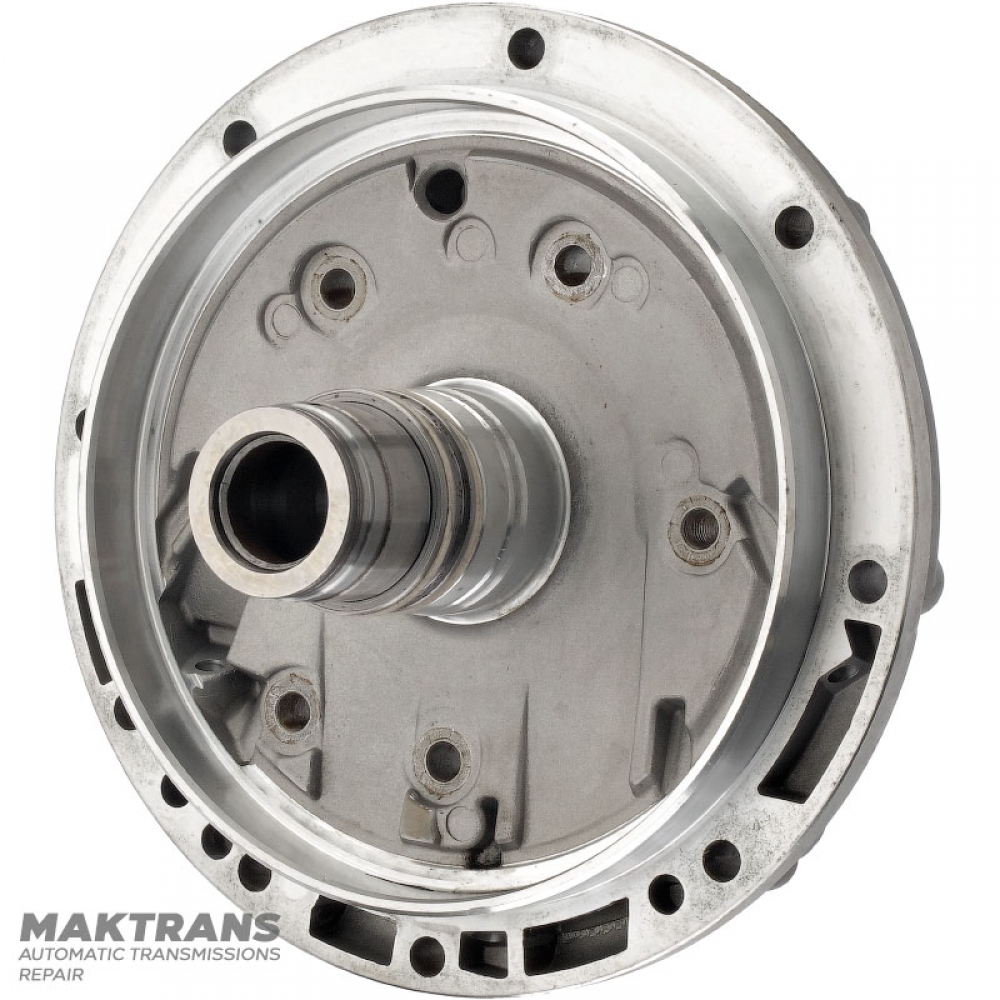

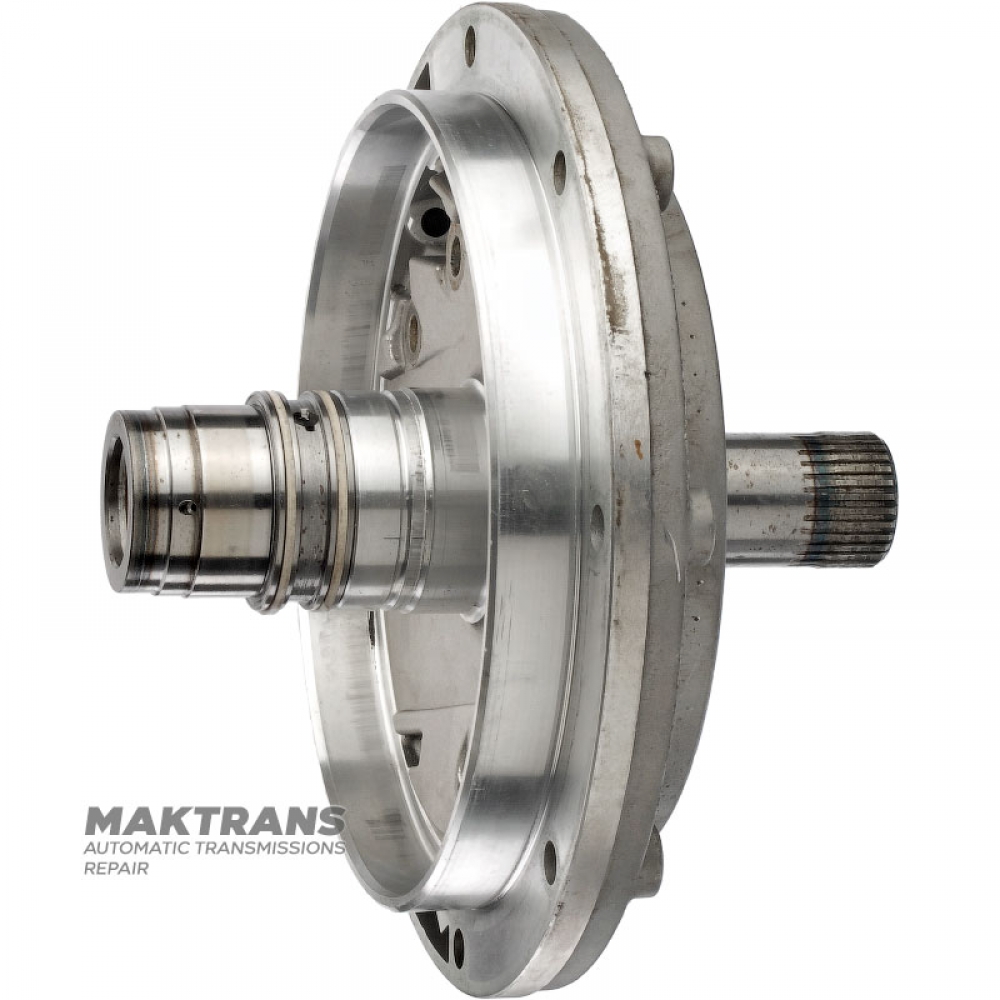

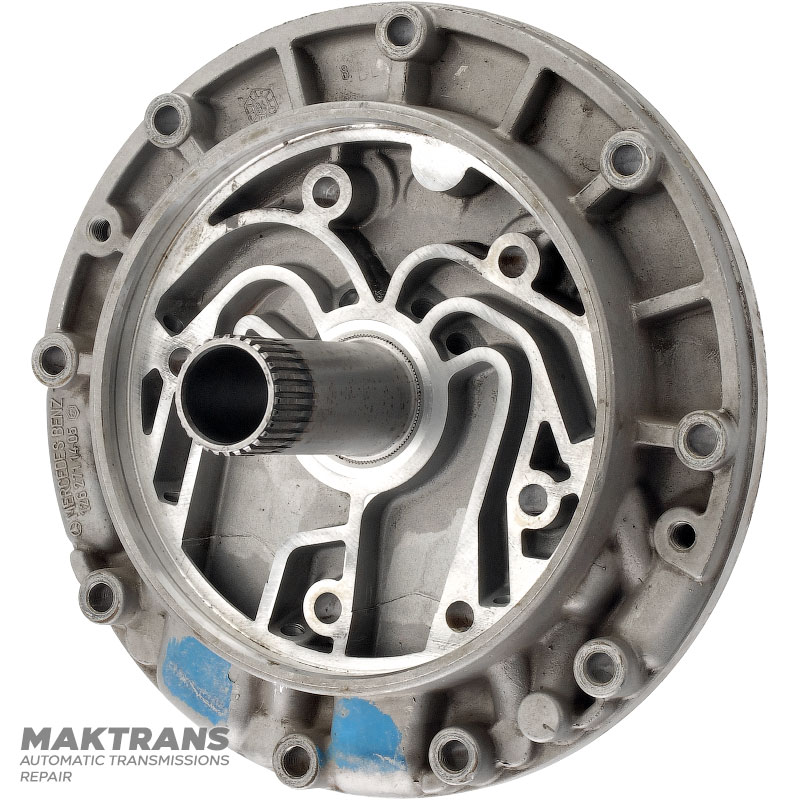

Oil pump hub Mercedes-Benz 722.3, 722.5 - A1262711405

• Overall height - 173 mm;

Front side of the stator:

• Height - 72 mm;
• Number of splines - 30 pcs.;
• The outer diameter of the splined part is 31.60 mm;
• The inner diameter of the oil pump seat is 152.10 mm;
• Outer body diameter - 223.55 mm;

Back side of the stator:

• Height - 85 mm;
• Inner diameter of the sleeve - 25.90 mm;
• The outer diameter of the working part is 43 mm;
• Outer diameter over Teflon rings - 48.95 mm;
