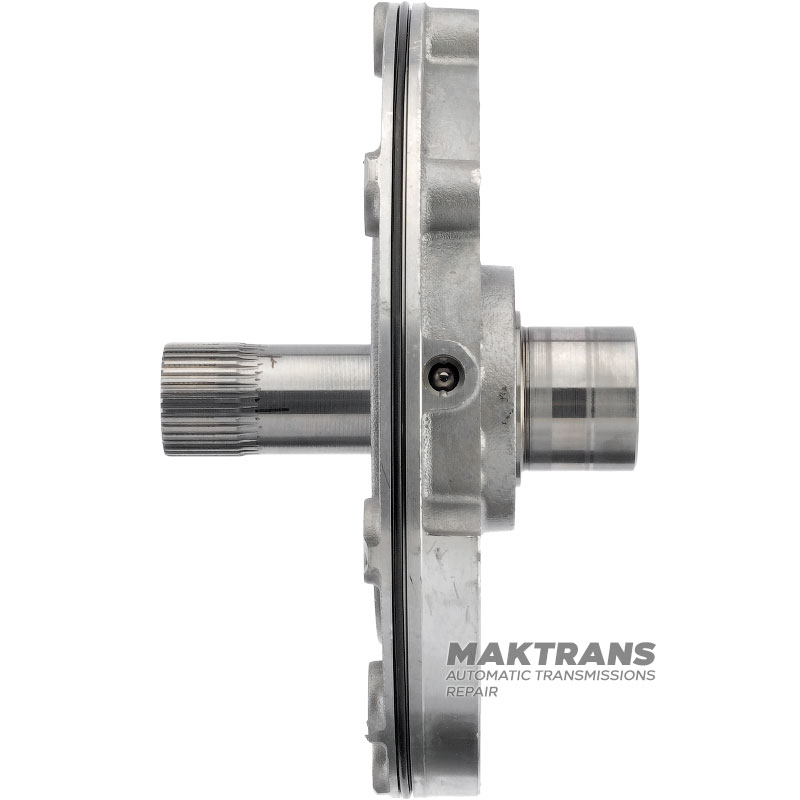

Oil pump hub NISSAN / JATCO RE5R05A 3134095X01 - for TURBO engines

• Total height - 150 mm;

Front side:

• Stator height - 79 mm;
• Number of splines - 36 pcs.;
• The outer diameter of the splined part is 36.70 mm;
• Inner diameter - 29.70 mm;

The outer diameter of the aluminum body is 252 mm;

Back side:

• Height - 39 mm;
• Outer diameter - 46.40 mm;
