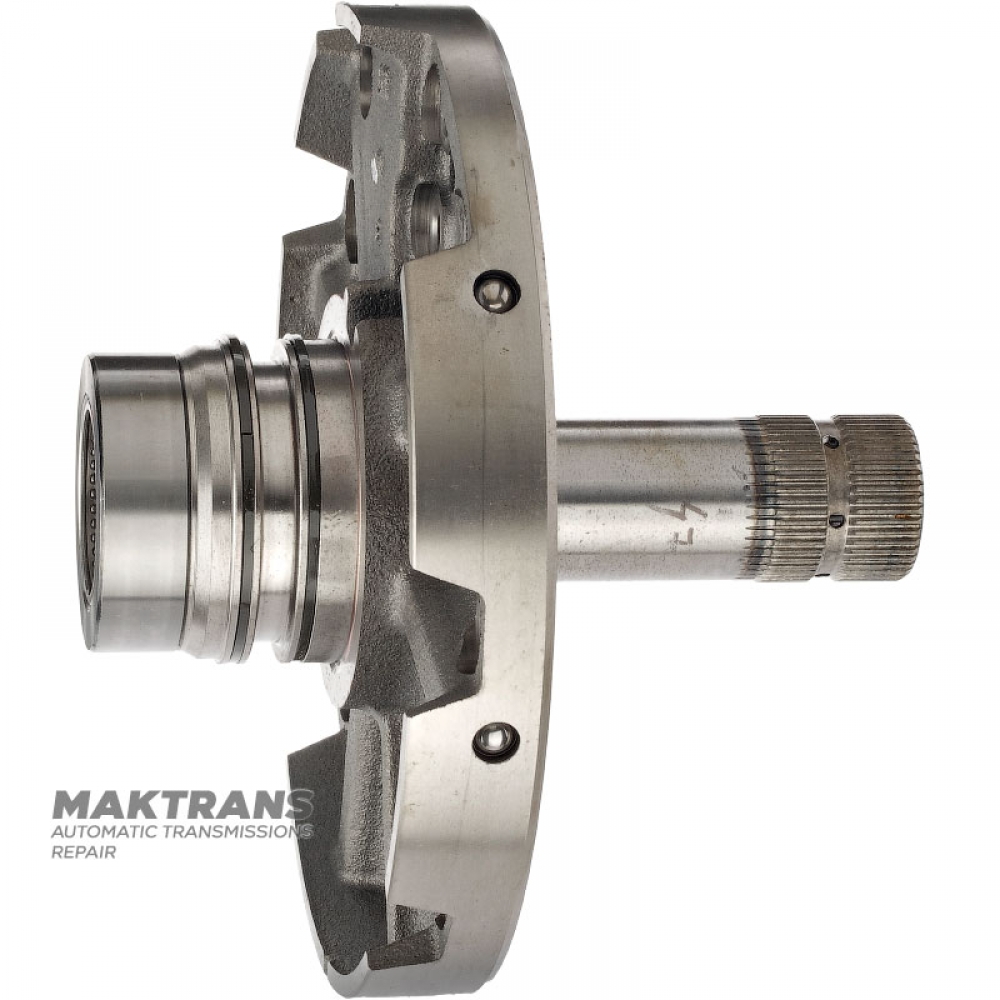

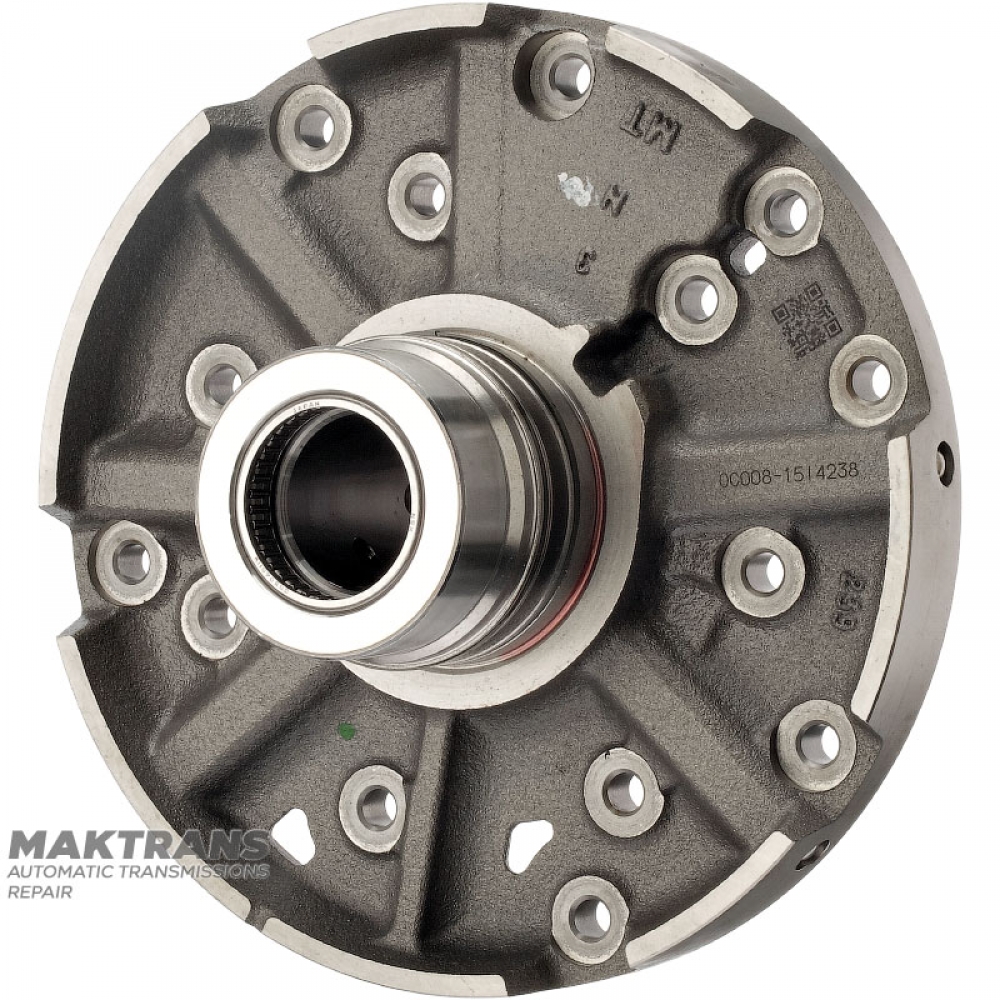

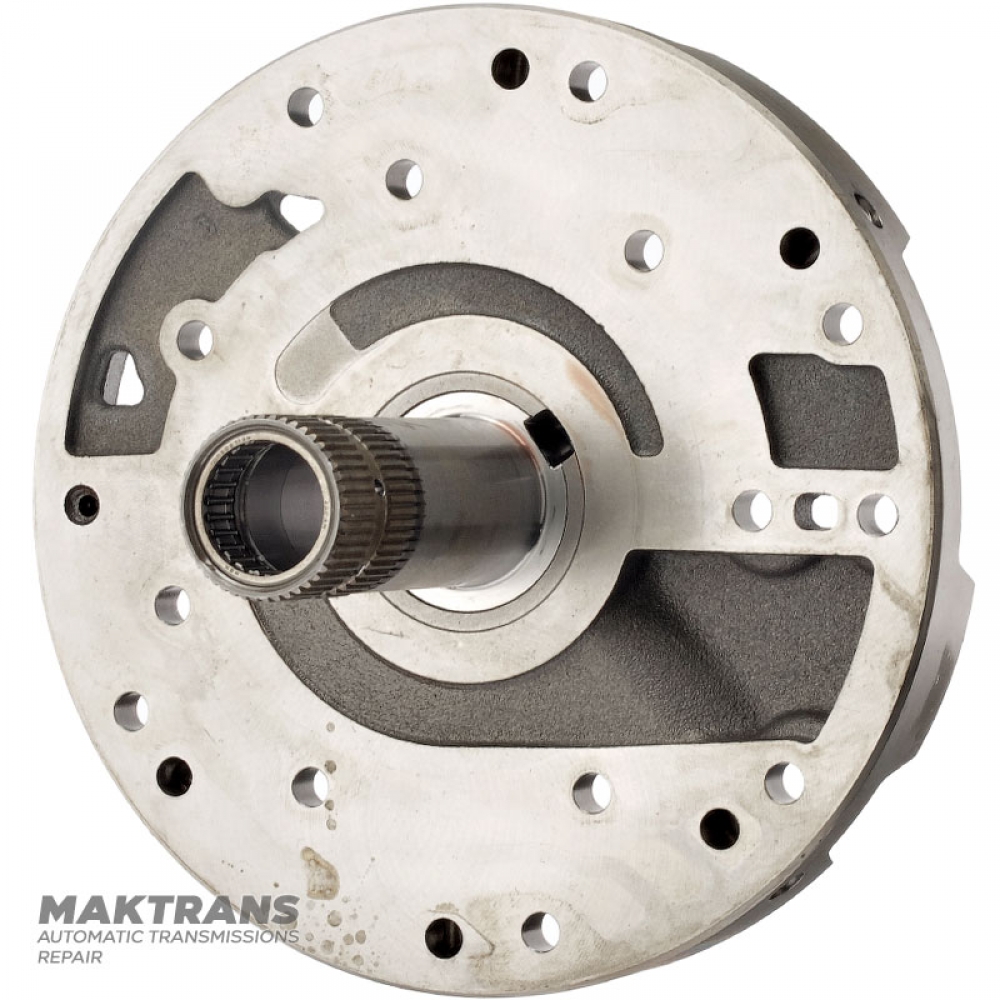

Oil pump hub NISSAN RE6R01A / AISIN WARNER A466ND - height 184 mm, 47 splines (outer Ø 37.80 mm)

• Overall height - 184 mm;
• Stator height (front side) - 100 mm;
• Bearing inner diameter - 26.70 mm;
• Bearing marking - DB502713W;
• Number of splines - 47 pcs.;
• The outer diameter of the splined part is 37.80 mm;
• Outer body diameter - 218.55 mm;
• Stator height (rear side) - 55 mm;
• Bearing inner diameter - 40.70 mm;
• Bearing marking - DB504011W;
• Outer diameter of the working part - 66 mm;
• Outer diameter over Teflon rings - 71.50 mm;

Tags: 31020EZ01D, Nissan TITAN XD, 2016-2017
