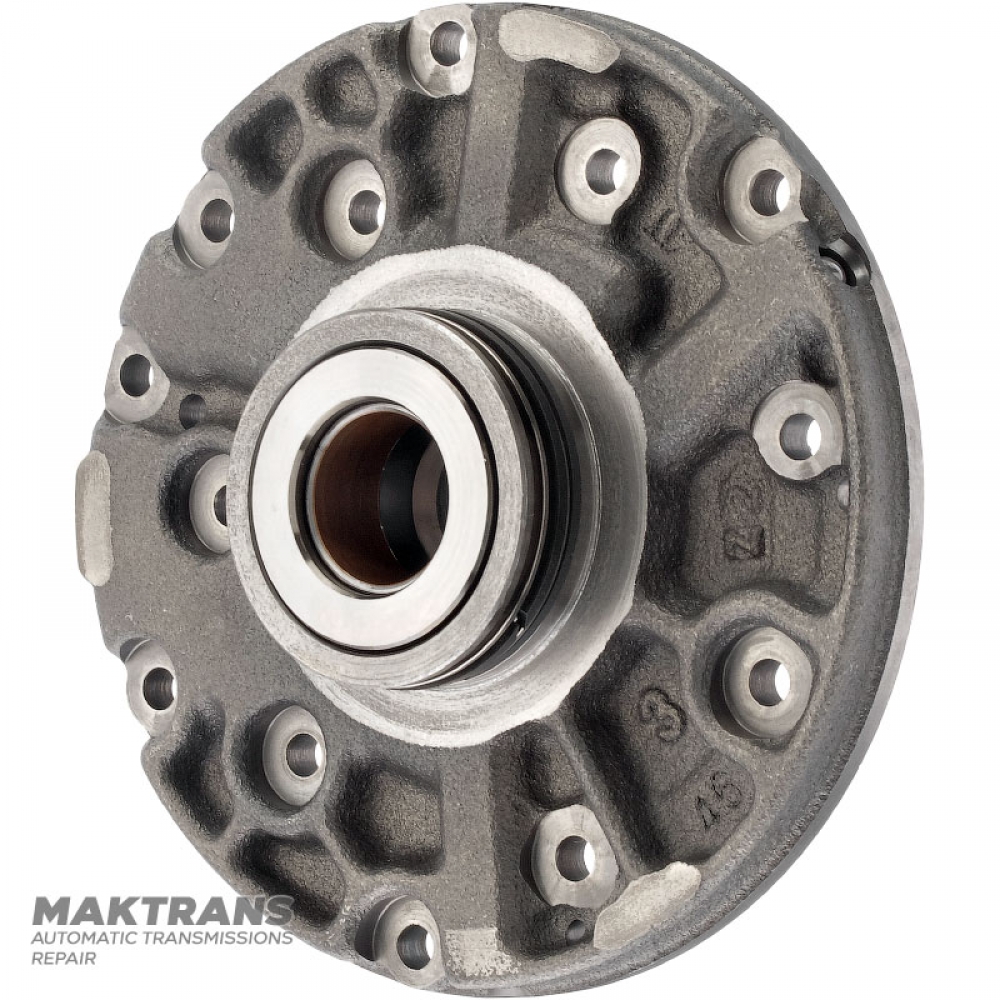

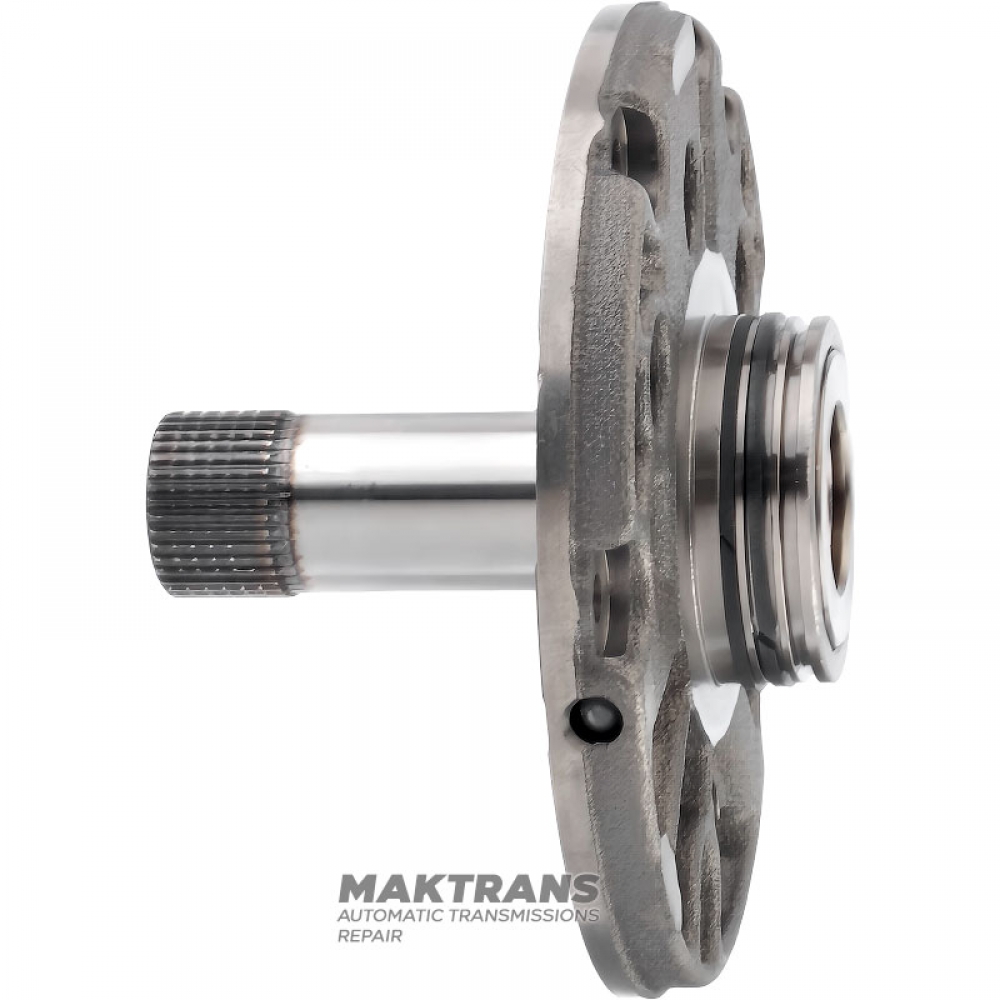

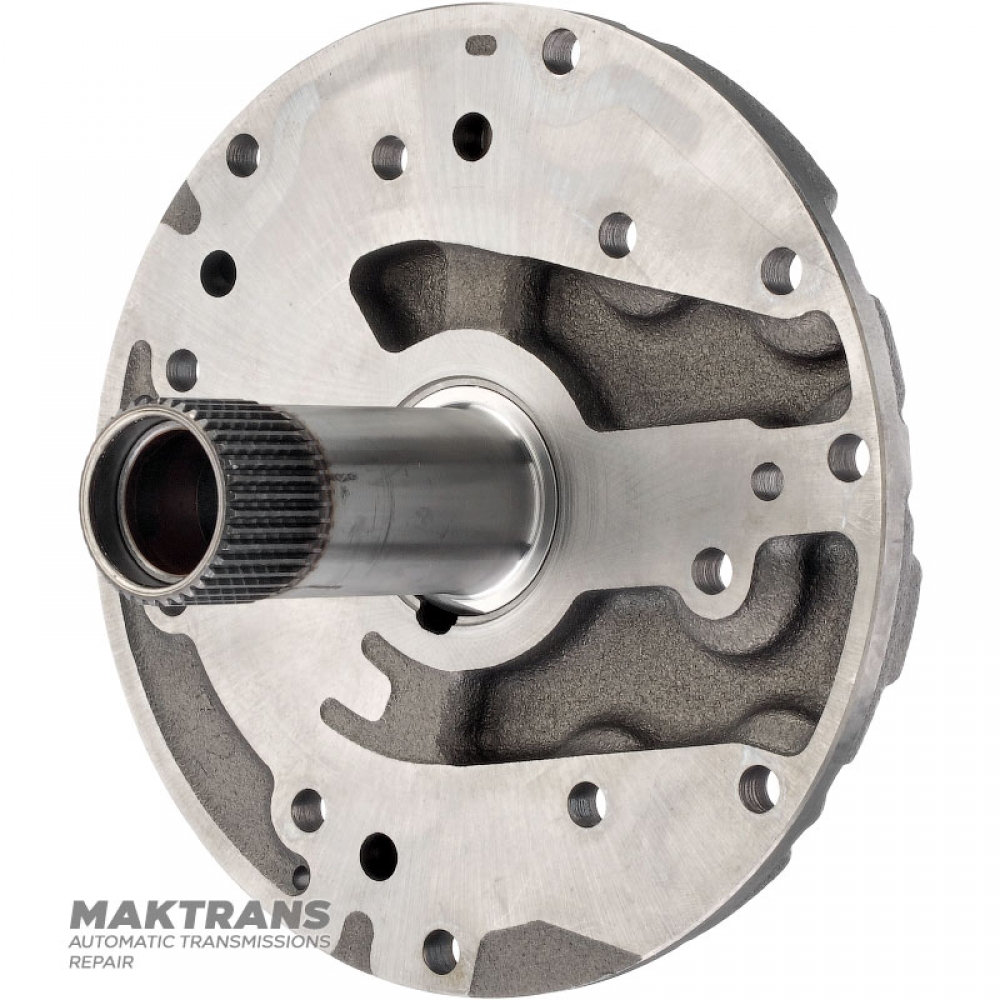

Oil pump hub TOYOTA A340E A340F 3537030031 - overall height 110 mm, 38 splines (ext.Ø 30.80 mm)

• Total height - 110 mm;
• Inner diameter of the sleeve - 21.50 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 30.85 mm;
• Stator height (front side) - 75 mm;
• The outer diameter of the hub body is 159 mm;

Back of the hub:

• Stator height - 20 mm;
• Hub outer diameter - 58.90 mm;
• The inner diameter of the sleeve is 27 mm;
