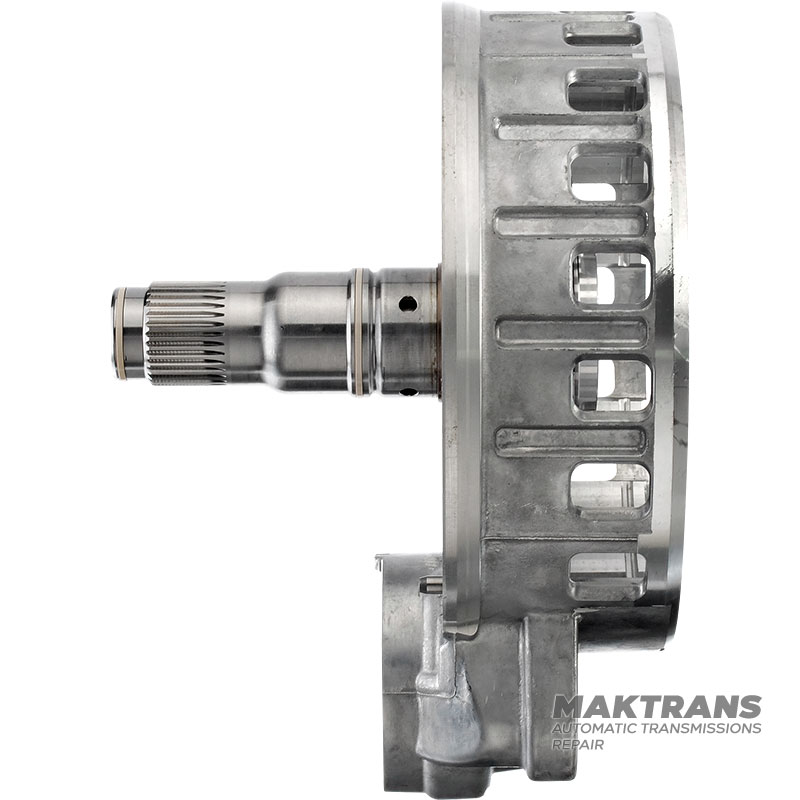

Oil Pump Hub/Drum B08 Brake NISSAN GE9R01A / JATCO JR913E

• Total height - 186 mm;
• Outer diameter - 223.90 mm;
• Number of splines - 34 pcs.;
• The outer diameter of the spline part is 35.75 mm;
• Stator height (front) - 111 mm;
• The outer diameter of the stator at the base (front side) is 44.60 mm;

Stator (rear side):

• Height 34 mm;
• Outer diameter - 65.40 mm;

Drum B08 Brake:

• The height from the piston to the retaining ring (on the inside of the drum) is 24 mm;
