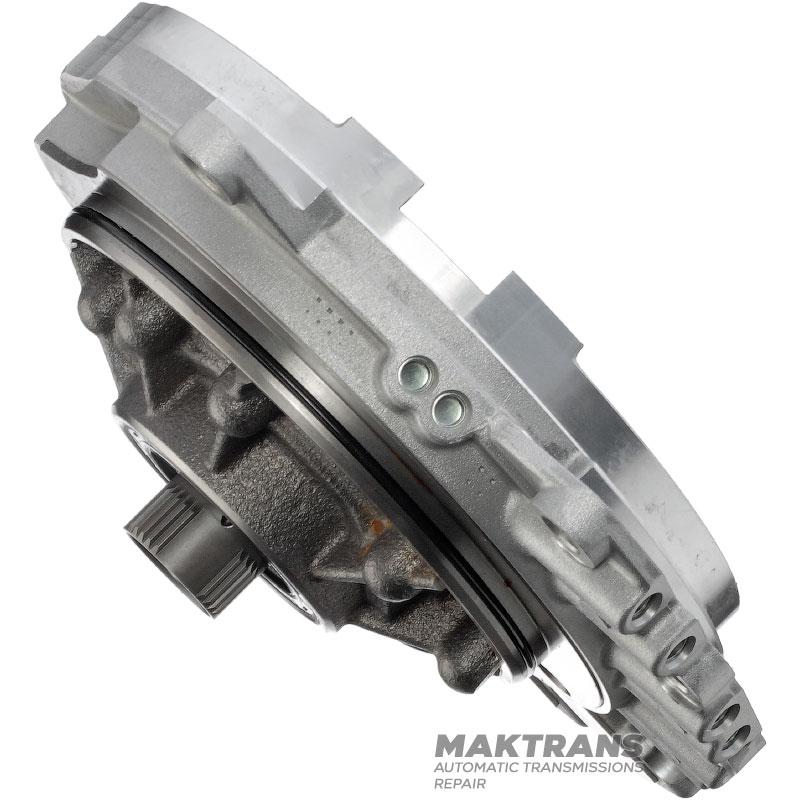

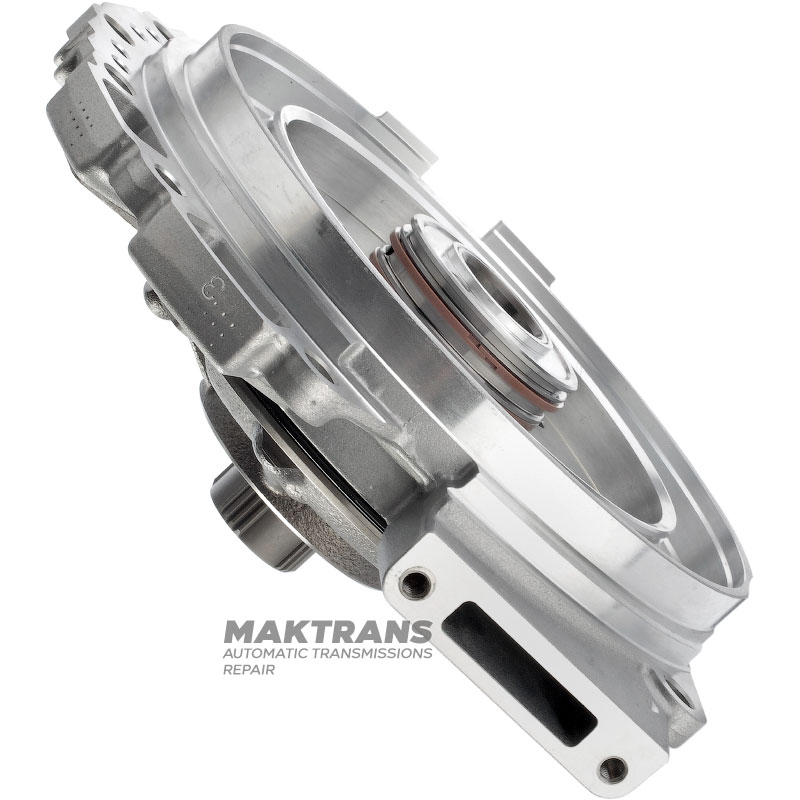

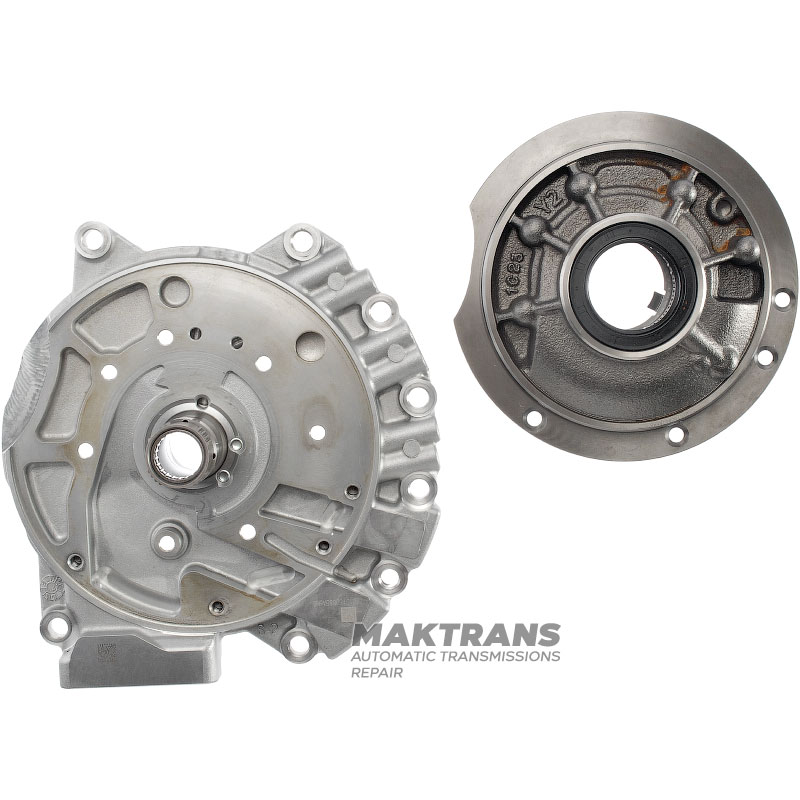

Oil pump Hyundai / KIA A8MF1, Jeep A8F30 — 461004G600

Oil Pump Hub (without Low/Reverse Brake Piston):

• Total height - 84 mm;
• Stator height (front) - 50 mm;
• Number of splines - 17 pcs.;
• The outer diameter of the spline part is 29.85 mm;
• Bearing marking - INA F-614000;
• Outer diameter of the hub - 56.30 mm;
• Hub height - 22 mm;
• Inner diameter - 26.05 mm;
• The outer diameter of the Low/Reverse piston cylinder is 174.75 mm;

Oil pump gear housing:

• Total height - 32 mm;
• The outer diameter of the case is 169.90 mm;

Drive gear:

• Number of teeth - 11 pcs.;
• Inner diameter - 43.15 mm;
• Gear thickness - 7.85 mm;

Driven gear:

• Number of teeth - 12 pcs.;
• Outer diameter - 83.75 mm;
• Gear thickness - ​7.85 mm;
