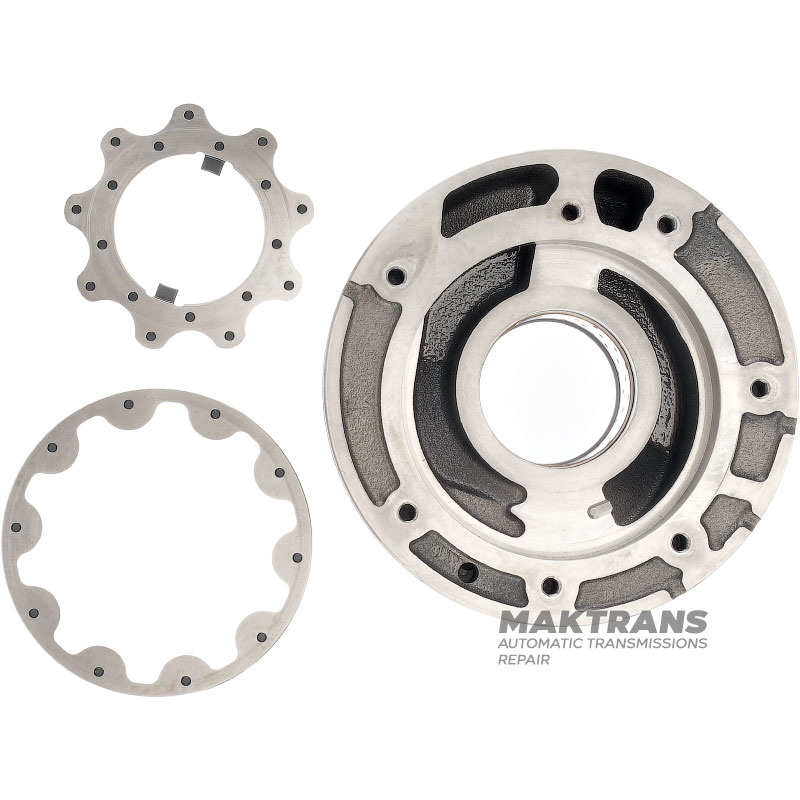

Oil pump TOYOTA AA80E / AA80F 3530150030 - (gear thickness 11.65 mm)

Oil pump housing:

• Total height - 44 mm;
• Outer diameter - 140 mm;
• The inner diameter of the sleeve is 45.15 mm;
• The internal diameter for the driven gear is 93.55 mm;
• The depth of the gear seat is 11.65 mm;

Drive gear:

• Thickness - 11.65 mm;
• Inner diameter - 45.10 mm;
• Number of teeth - 9 pcs.;

Driven gear:

• Thickness - 11.65 mm;
• Outer diameter - 93.40 mm;
• Number of teeth - 10 pcs.;
