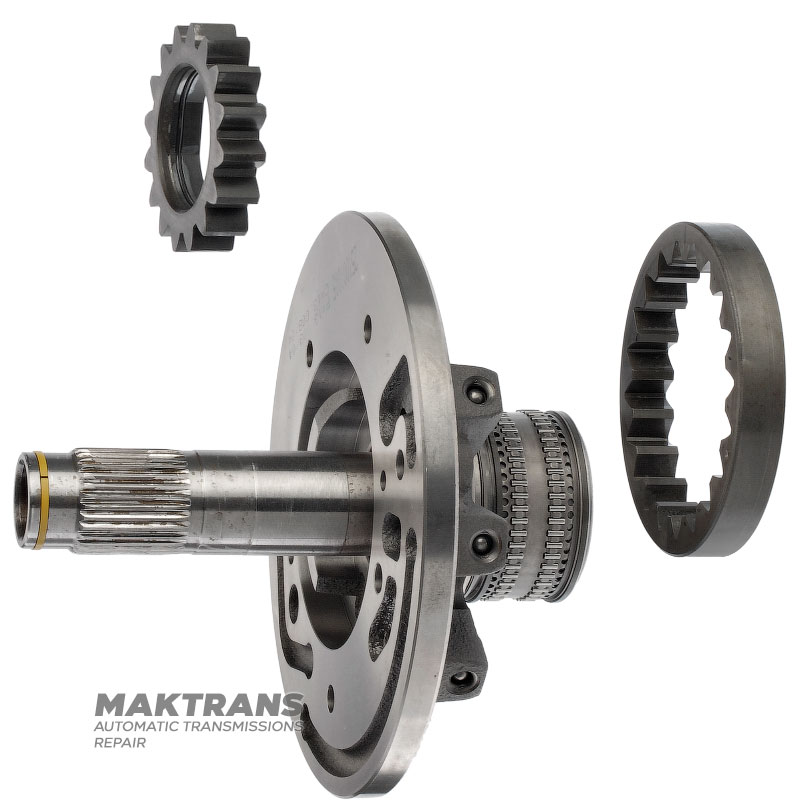

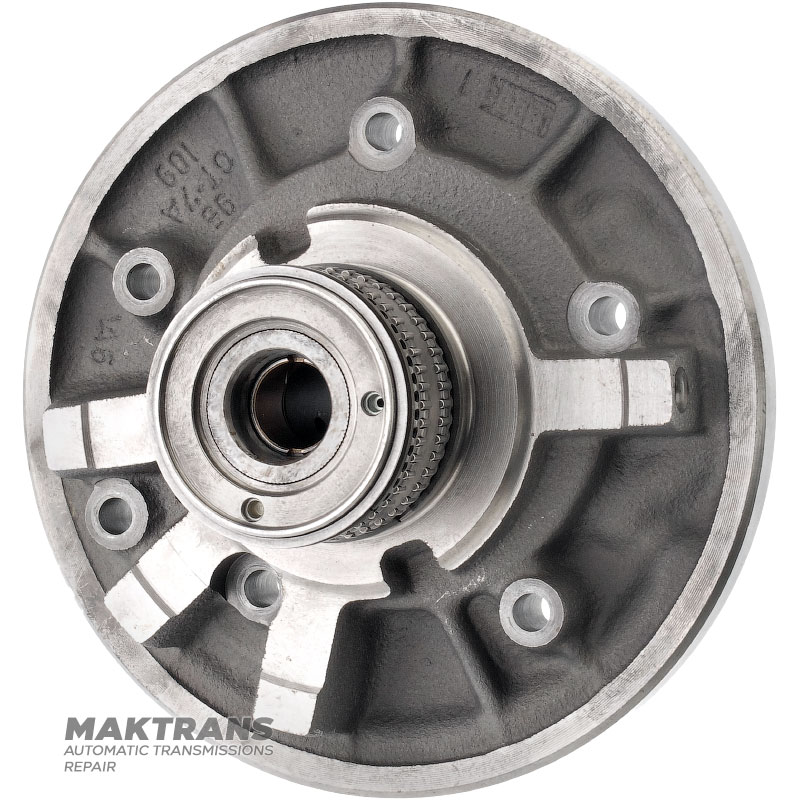

Oil pump (with bearing on hub, 16x20 teeth on gears, rubber ring on pinion) FORD 5R55E, 5R55N, 5R55W, 5R55S – XL2Z-7A103-AB

• Overall height - 173.50 mm;
• Number of splines on the neck - 30 pcs.;
• The outer diameter of the splined part is 32.65 mm;
• Inner diameter of the sleeve - 18.80 mm;
• Outer body diameter - 182.65 mm;
• The diameter of the holes for the mounting bolts is 8.75 mm;

Back to the hub:

• Height - 43 mm;
• Outer diameter of the hub (by Teflon rings) - 60.60 mm;
• Inner diameter of the sleeve - 18.45 mm;

Oil pump gears:

Pinion:

• Thickness - 13 mm;
• Inner diameter - 40.50 mm;
• Number of teeth - 16 pcs.;

Driven gear:

• Thickness - 13 mm;
• Outer diameter - 93.45 mm;
• Number of teeth - 20 pcs.;
