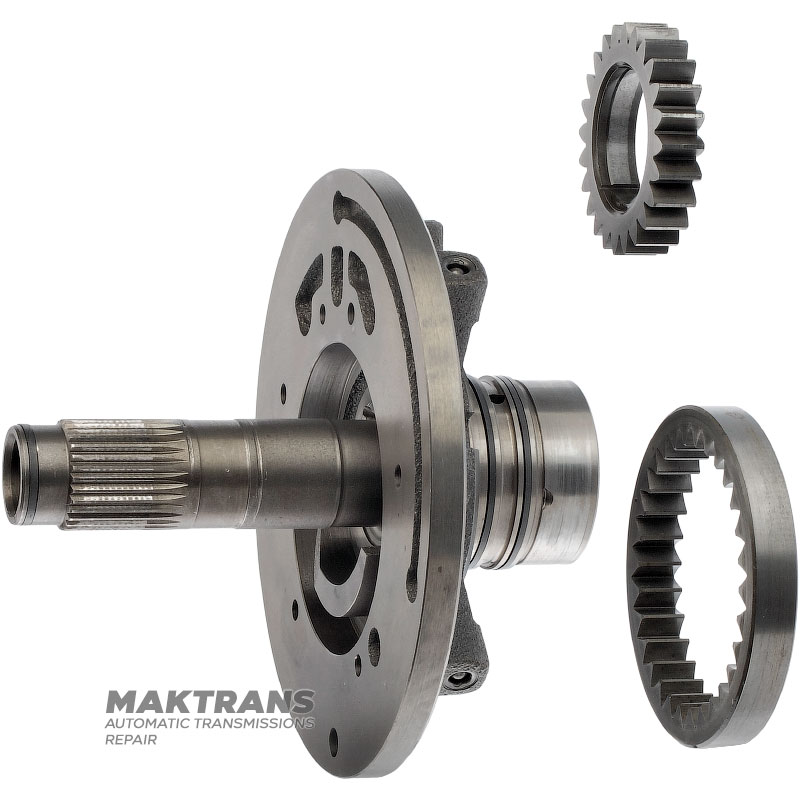

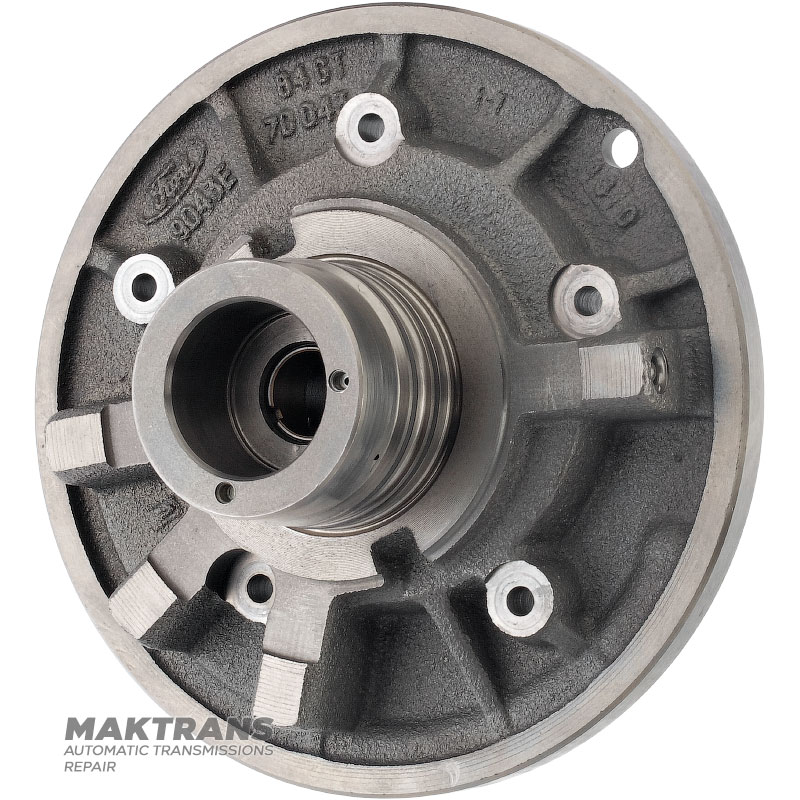

Oil pump (without bearing on hub, 24x30 teeth on gears, without rubber ring on drive gear) FORD A4LD 4R44E, 4R55E — 1352961, YL2P-7L201-JC

• Overall height - 173.50 mm;
• Number of splines on the neck - 30 pcs.;
• The outer diameter of the splined part is 32.65 mm;
• Inner diameter of the sleeve - 18.80 mm;
• Outer body diameter - 182.65 mm;

Back to the hub:

• Height - 43 mm;
• The outer diameter of the working part is 56.60 mm;
• Outer diameter of the hub (by Teflon rings) - 59.15 mm;
• Inner diameter of the sleeve - 18.45 mm;

Oil pump gears:

Pinion:

• Thickness - 13 mm;
• Inner diameter - 40.50 mm;
• Number of teeth - 24 pcs.;

Driven gear:

• Thickness - 13 mm;
• Outer diameter - 93.45 mm;
• Number of teeth - 30 pcs.;
