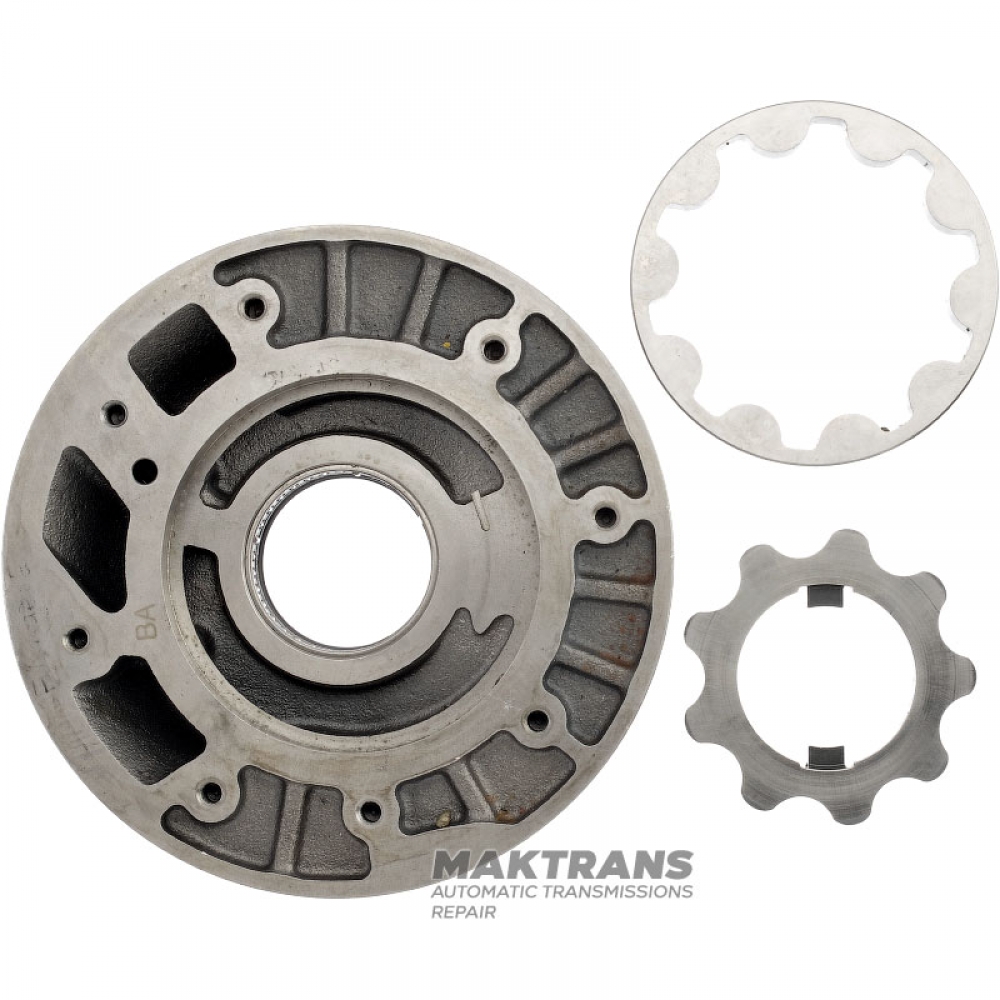

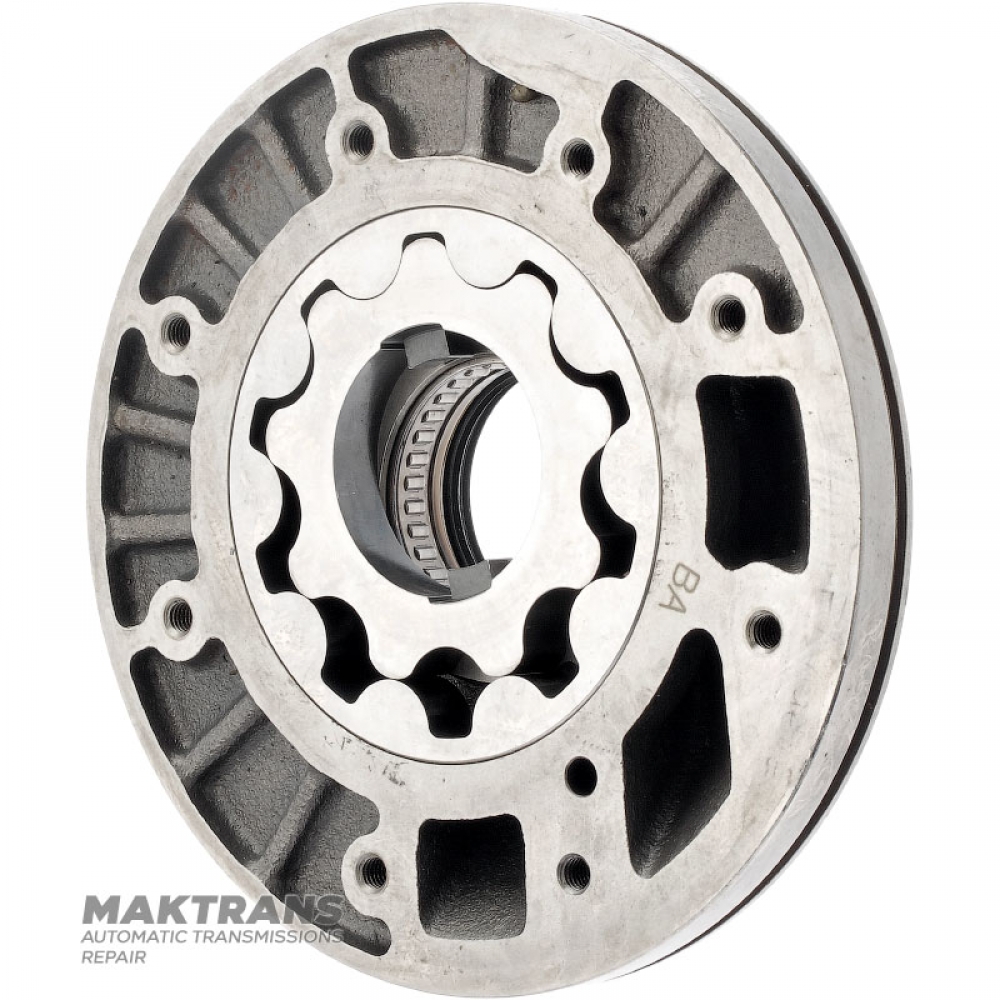

Oil pump (without hub) HYUNDAI KIA A6MF1 — outer Ø of housing 160 mm (with needle bearing under the torque converter journal)

Gear housing:

• Total height - 33 mm;
• The outer diameter of the case is 160 mm;
• Bearing inner diameter 43.20 mm;
• Marking on the inside of the case - BA;

Oil pump gears:

• Drive gear:
• Thickness - 11.30 mm;
• Number of teeth - 9 pcs.;
• Inner diameter - 43 mm;
• Outer diameter - 70.90 mm;

Driven gear:

• Thickness - 11.30 mm;
• Number of teeth - 10 pcs.;
• Outer diameter - 89.80 mm;
