Main Specifications
Condition (used, new):
used and inspected
Type:

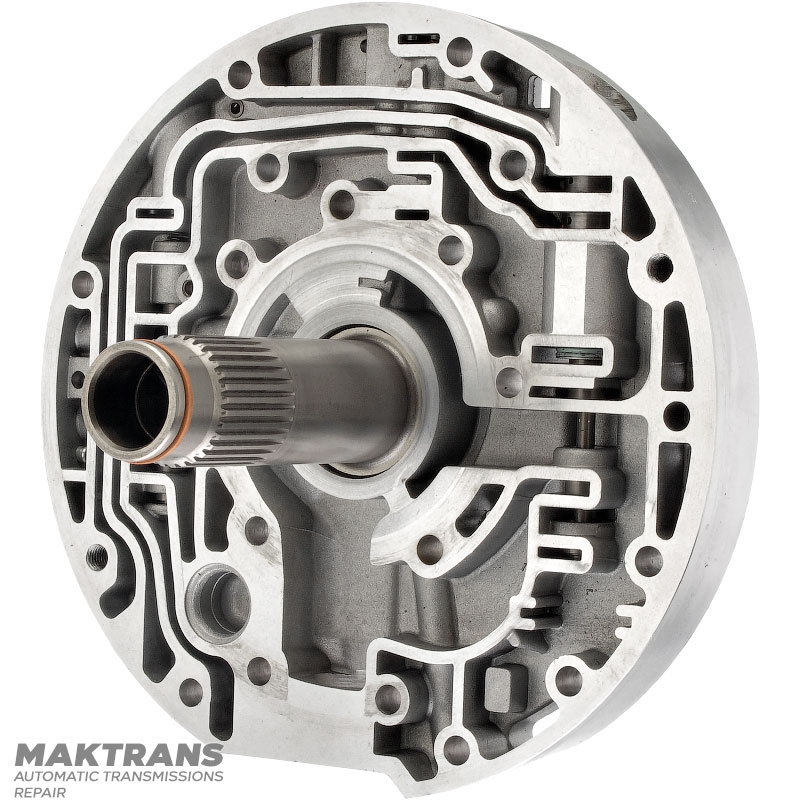

Oil pump stator
If you order more than 2 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 2 pcs. |
  |
| Ukraine | 14 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)
- Overall height - 211 mm;
- Valve body external diameter - 267.20 mm;

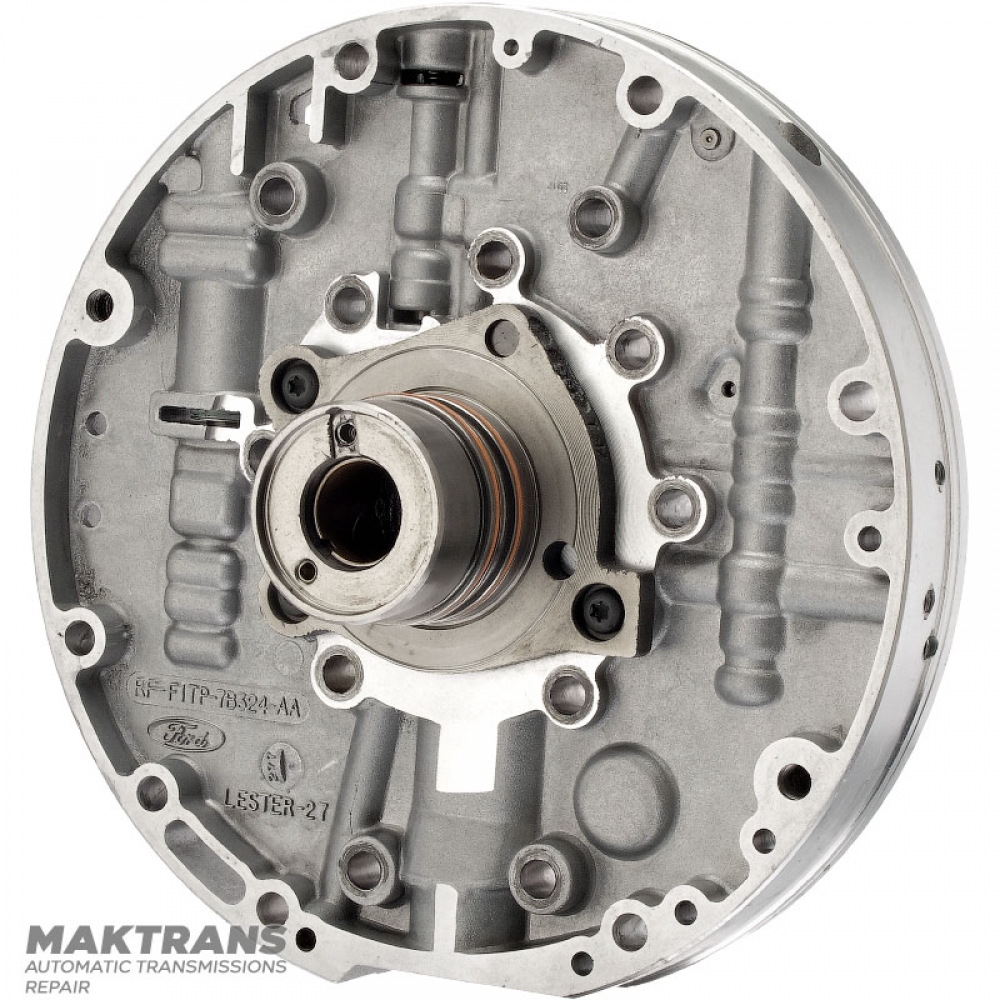

- Stamp part number - RF-F1TP-7B324AA;
Front side:
- Stator height - 127 mm;
- Number of splines - 32 pcs.;
- Splines area external diameter - 41.05 mm;
Rear side:
- Stator height - 46.50 mm;
- Bushing race place external diameter - 56.60 mm;
- External diameter (sealing ring area) - 59.60 mm;
- Bushing internal diameter (inner bushing) - 25.75 mm;
