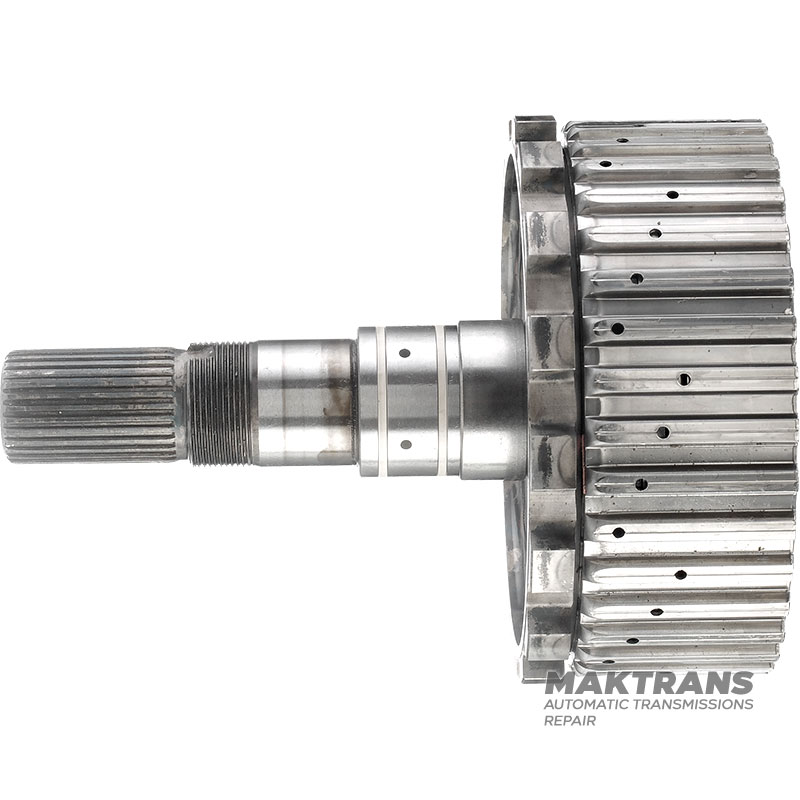

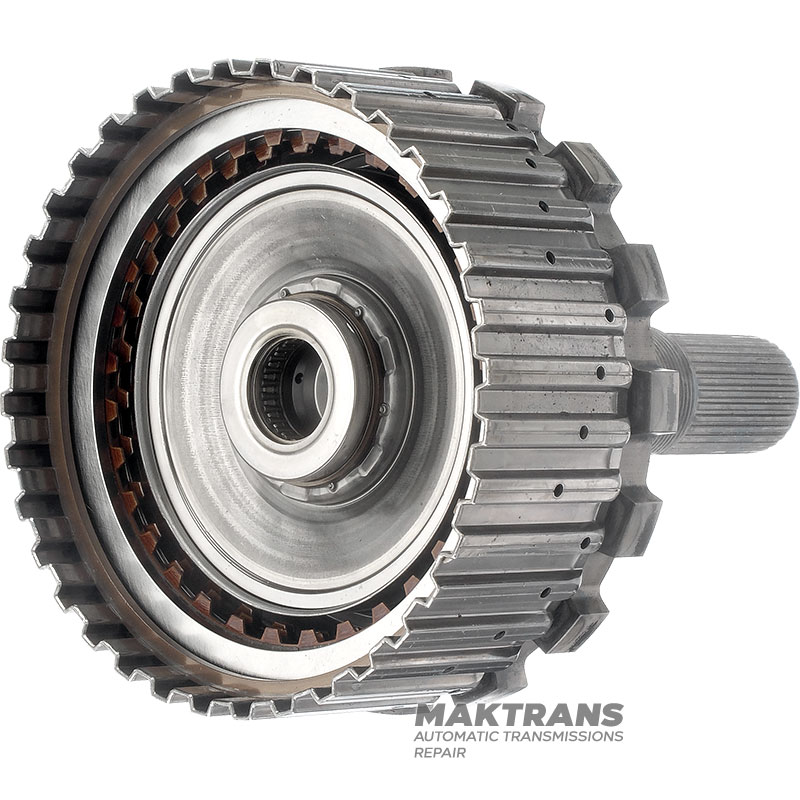

Output shaft 4WD / drum K27 Clutch NISSAN GE9R01A / JATCO JR913E - 5 friction discs, total height 206 mm (30 splines, outer Ø 31.45 mm)

• Total height - 206 mm;
• Number of splines on the shaft - 30 pcs.;
• The outer diameter of the spline part is 31.45 mm;
• Outer diameter of Teflon rings - 41.40 mm;
• The number of teeth on the parking gear is 16 pcs.;
• The outer diameter of the parking gear is 153.95 mm;

K27 Clutch Drum:

• The outer diameter of the drum is 150.60 mm;
• The height from the piston to the retaining ring (on the inside of the drum) is 26 mm;

K27 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 22.30 mm;

Pressure disk:

• Thickness - 4 mm;
• Inner diameter - 120.25 mm;
• Number of teeth - 36 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 139.30 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 5 pcs.;

Steel disc:

• Thickness - 1.95 mm;
• Inner diameter - 139.30 mm;
• Number of teeth - 32 pcs.;
• Number of discs included - 5 pcs.;

Spring disc:

• Thickness - 1.65 mm;
• Inner diameter - 120.55 mm;
• Number of teeth - 24 pcs.;
• Number of disks included - 1 piece;

Tags: AXX280B
