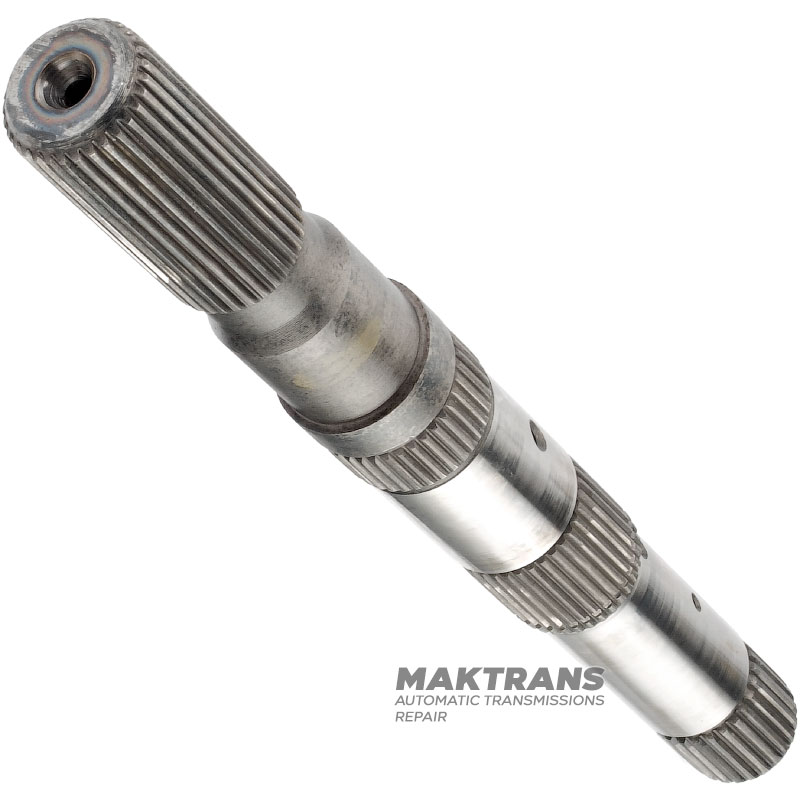

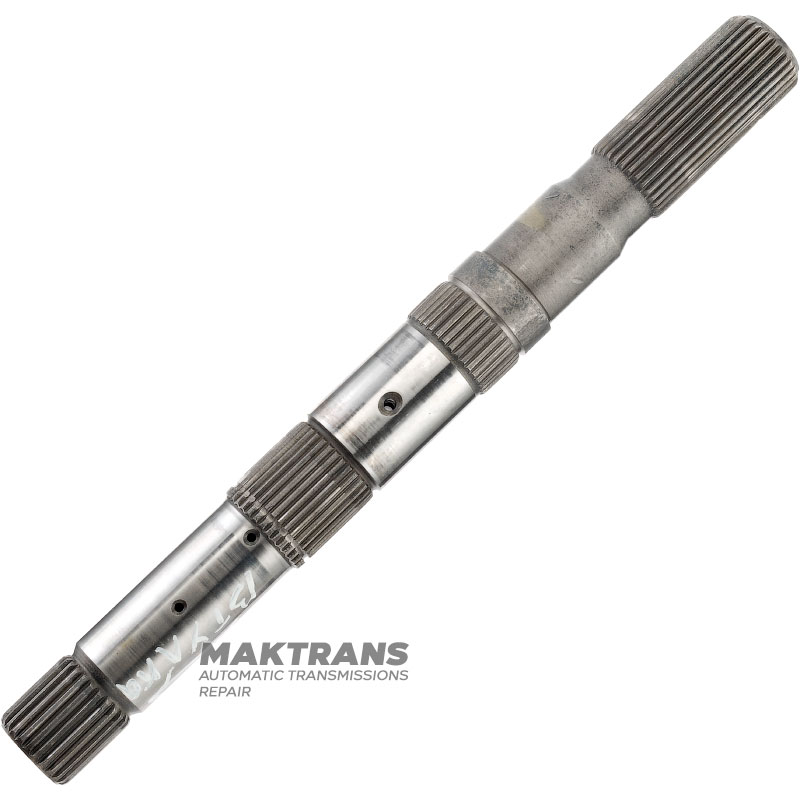

Output shaft FORD E4OD, 4R100 - with a bushing on the front end, shaft length 362 mm, 31 splines (outer Ø 34.45 mm, spline length 74 mm)

• Shaft length - 362 mm;
• The inner diameter of the bushing on the front end is 11.70 mm;

Number of splines on shaft:

• 31 splines (output part) - outer Ø 34.45 mm, length of spline part 74 mm;
• 36 splines - outer Ø 38.85 mm;
• 34 slots - outer Ø 36.95 mm;
• 25 splines - outer Ø 32.75 mm;

Parking gear (pressed onto shaft):

• Number of teeth - 14 pcs.;
• Gear outer diameter: 142.10 mm;
• Gear width: 17.05mm;
