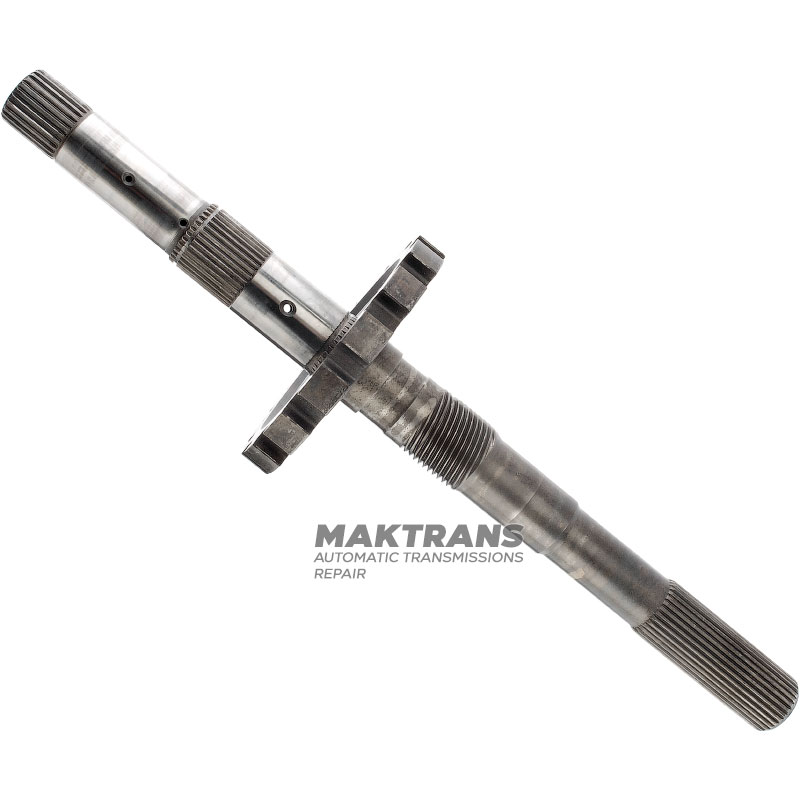

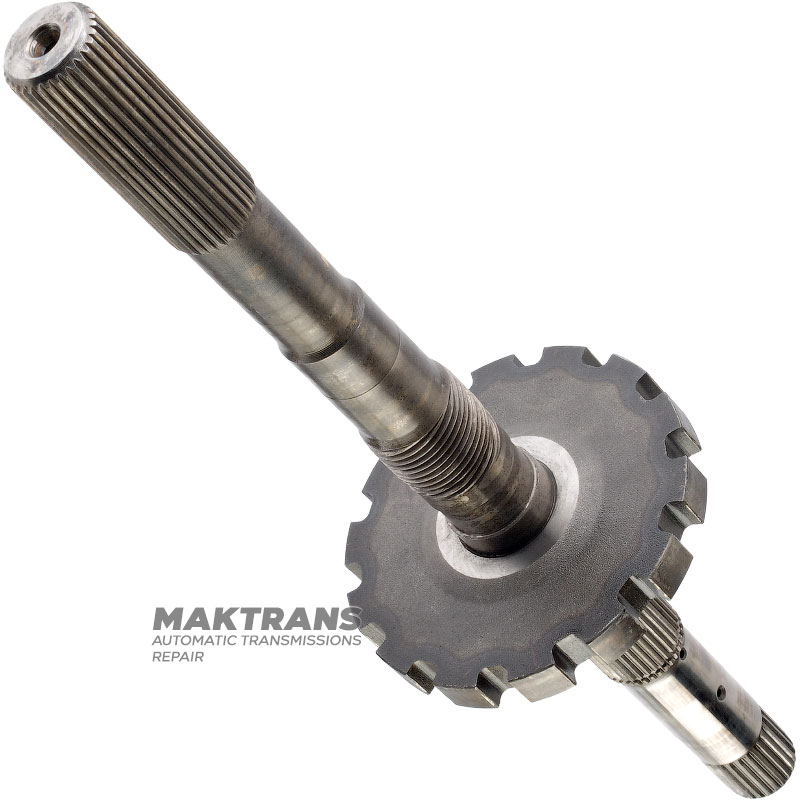

Output shaft FORD E4OD, 4R100 — with worm gear, parking gear, shaft length 507 mm, 31 splines (outer Ø 34.35 mm, spline length 98 mm)

• Shaft length - 507 mm;
• Worm gear outer diameter - 39.25 mm;
  ***With a plug on the front end of the shaft;

Number of splines on shaft:

• 31 splines (output part) — outer Ø 34.35 mm, length of spline part 98 mm;
• 34 splines - 36.95 mm;
• 25 splines - 32.75 mm;

Parking gear (pressed onto shaft):

• Number of teeth - 14 pcs.;
• Gear outer diameter - 142.10 mm;
• Gear width - 17.05 mm;
