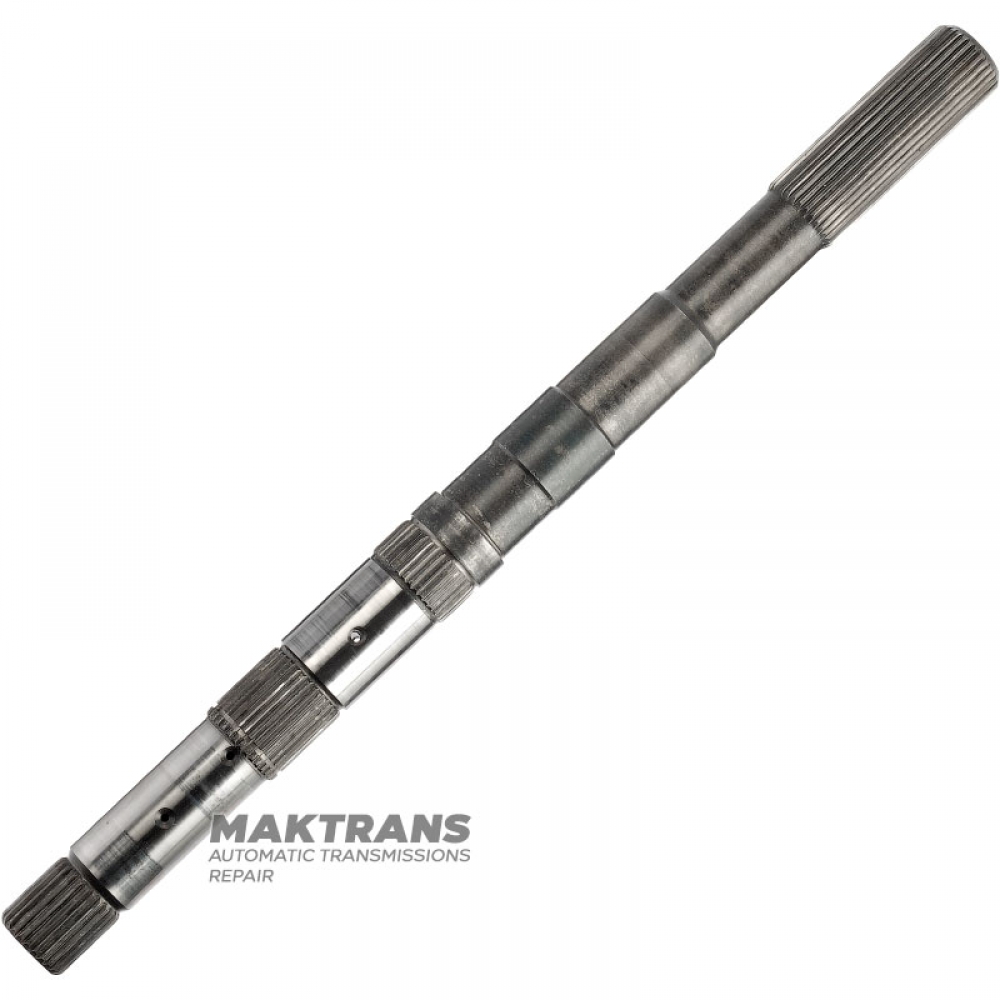

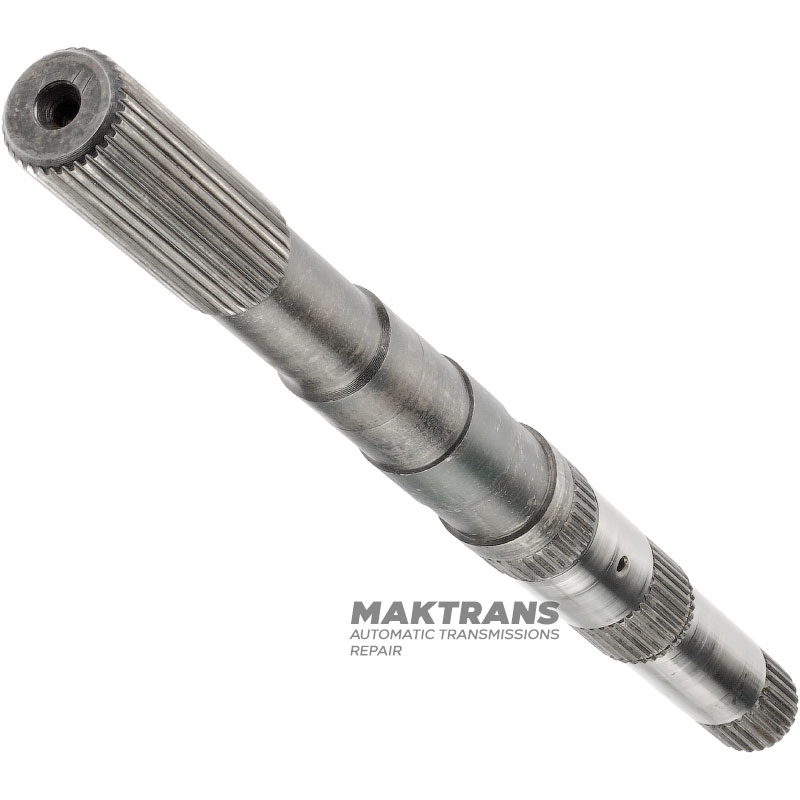

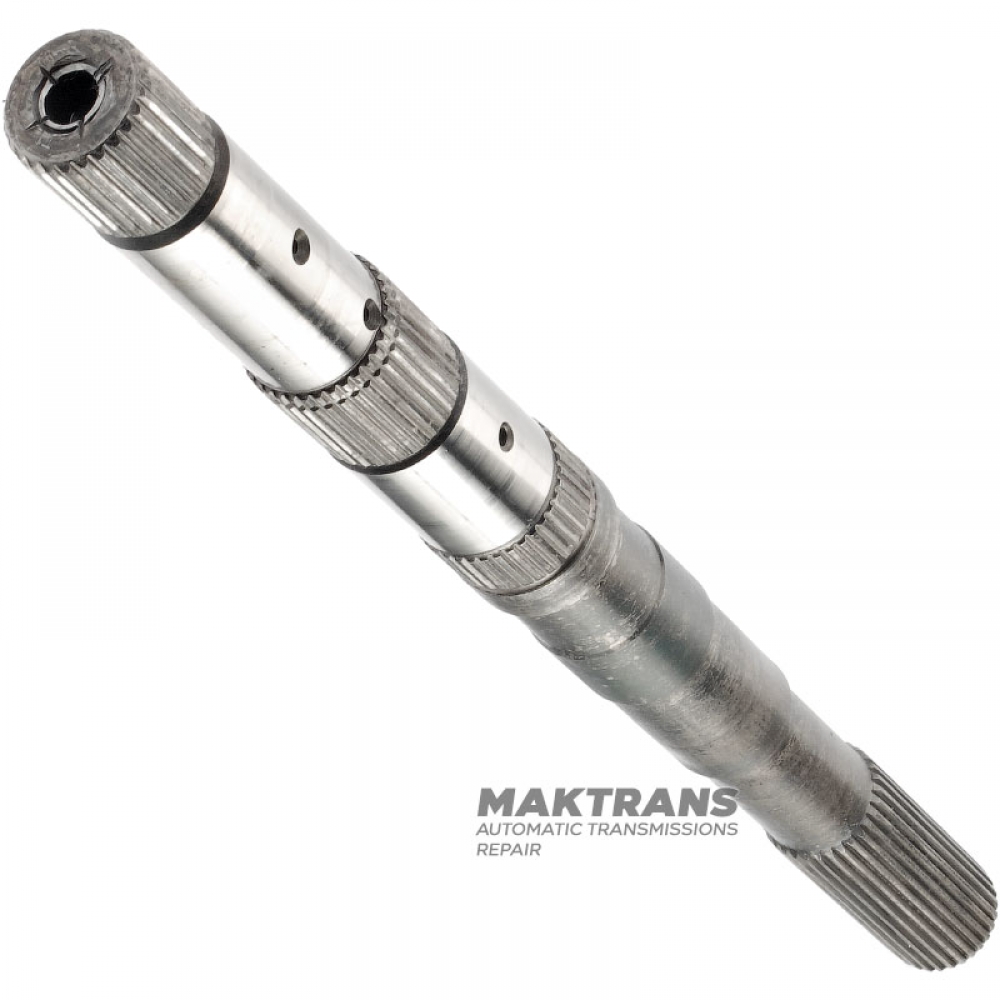

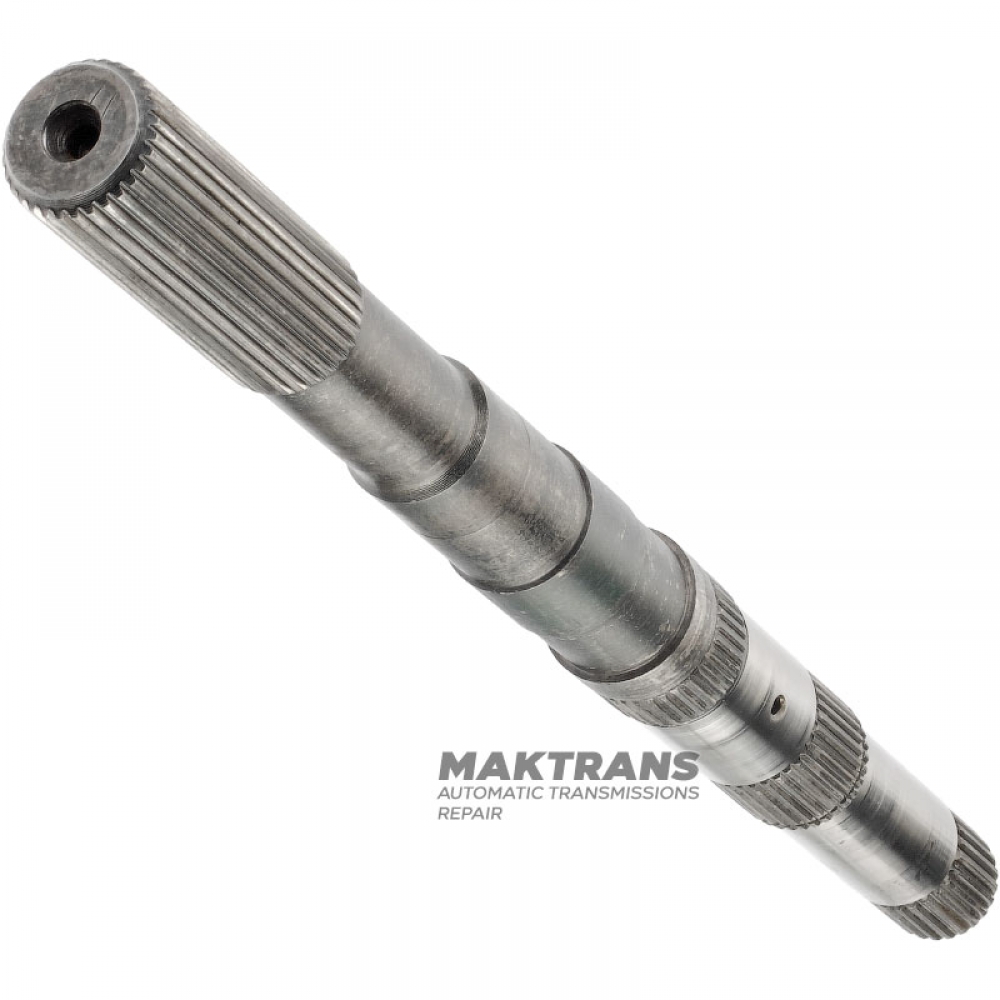

Output shaft FORD E4OD, 4R100 — without bushing, with bushing, length 507 mm, 31 splines (outer Ø 34.35 mm, length of splined part 98 mm)

• Shaft length - 507 mm;
• ***With a plug on the front end of the shaft;

Number of splines on shaft:

• 31 splines (output part) — outer Ø 34.35 mm, length of spline part 98 mm;
• 36 splines - 38.70 mm;
• 34 splines - 36.75 mm;
• 25 splines - 32.70 mm;
