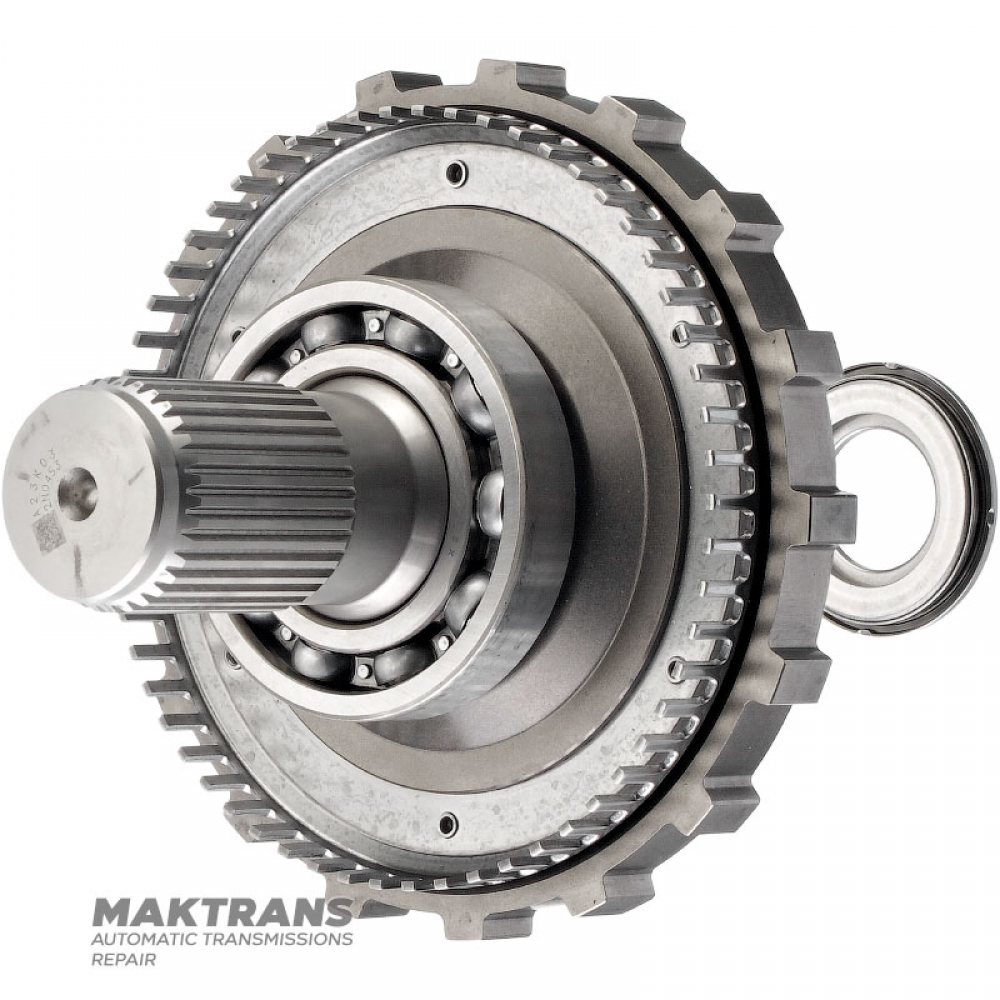

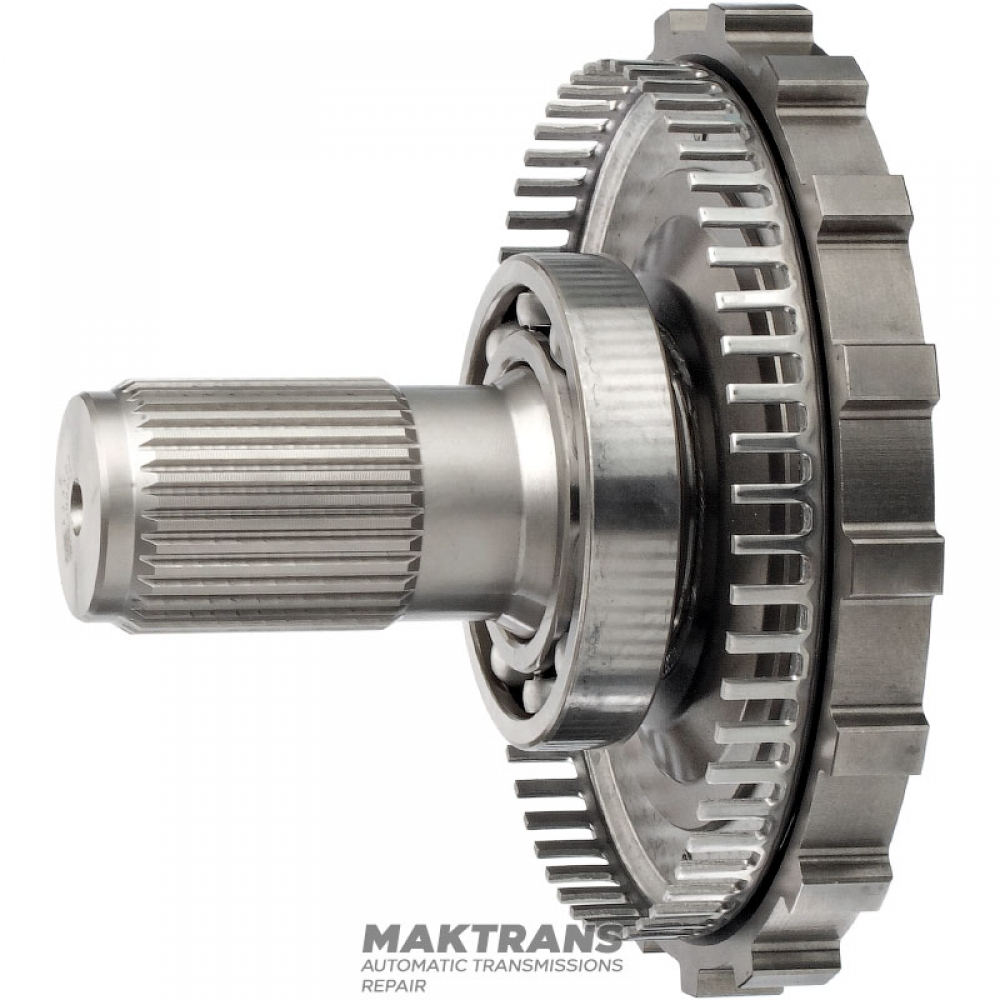

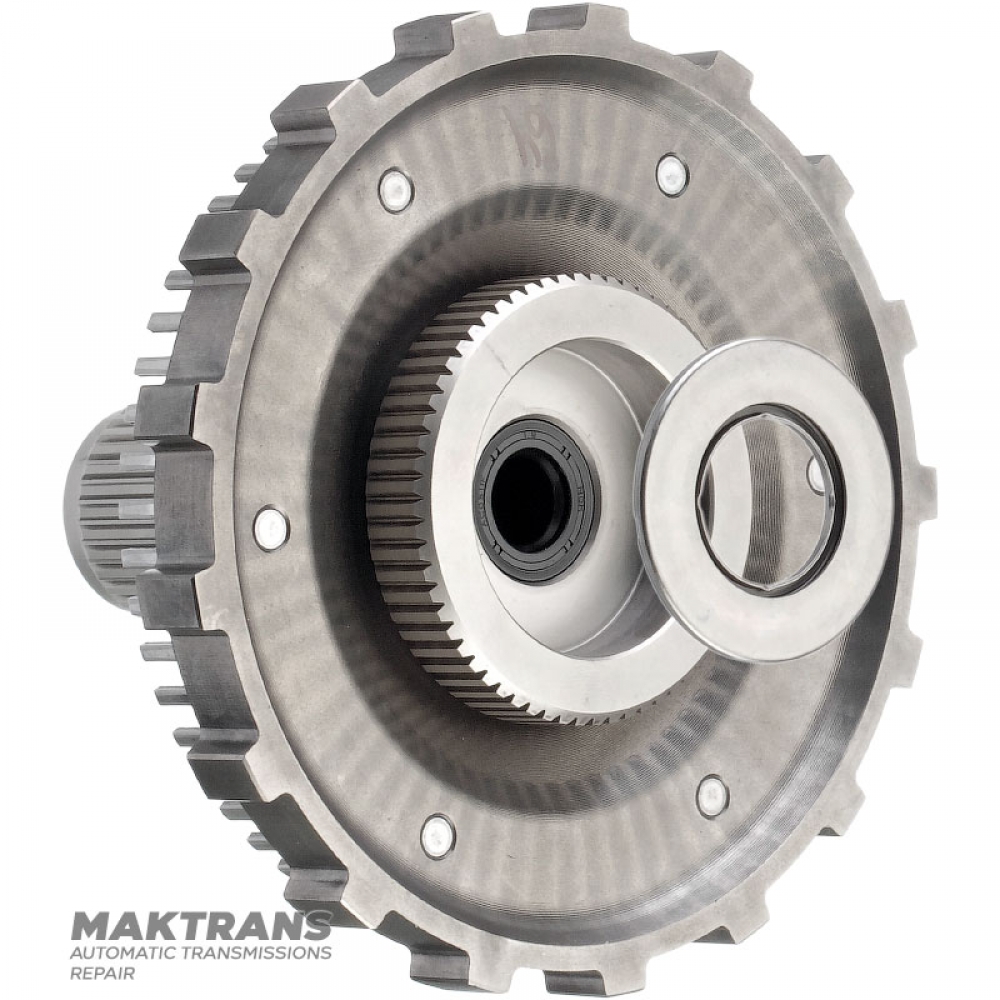

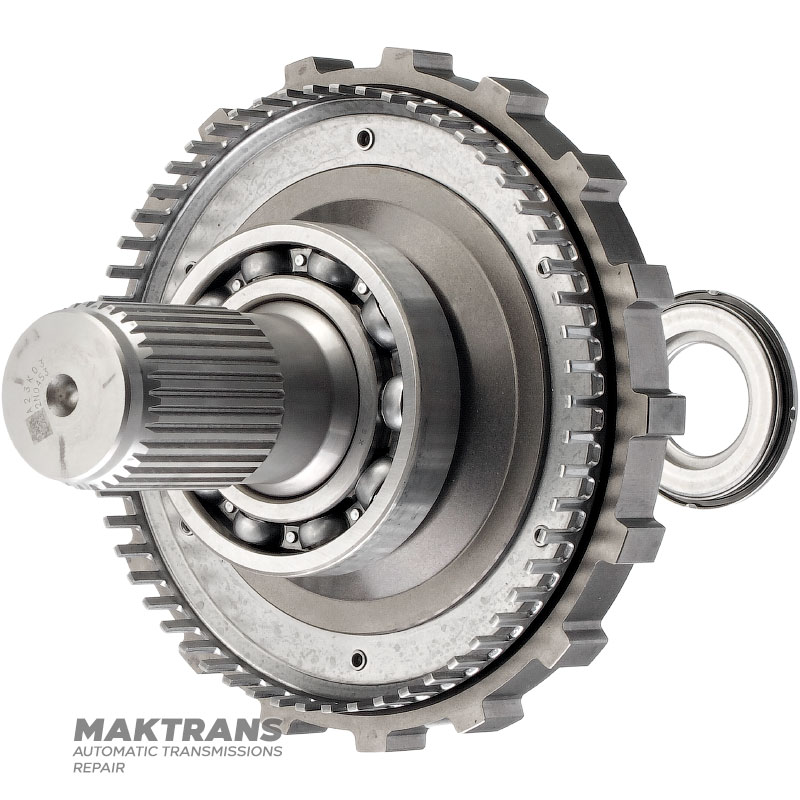

Output shaft MAZDA Hybrid 8-speed transmission RZ44 - overall height 107 mm, 34 splines (outer Ø of spline part 36.50 mm)

• Overall height - 107 mm;
• Number of splines - 34 pcs.;
• The outer diameter of the splined part is 36.50 mm;
• Length of splined part - 41.50 mm;
• Bearing outer diameter - 71.95 mm;
• Number of teeth on the parking gear - 17 pcs.;
• Parking gear outer diameter - 144.60 mm;

• Number of splines on the front side (planetary gear side) - 64 pcs.;
• The outer diameter of the splined part is 65.60 mm;

Needle bearing:

• Thickness - 5.50 mm;
• Outer diameter - 45.60 mm;
• Inner diameter - 23.20 mm;
