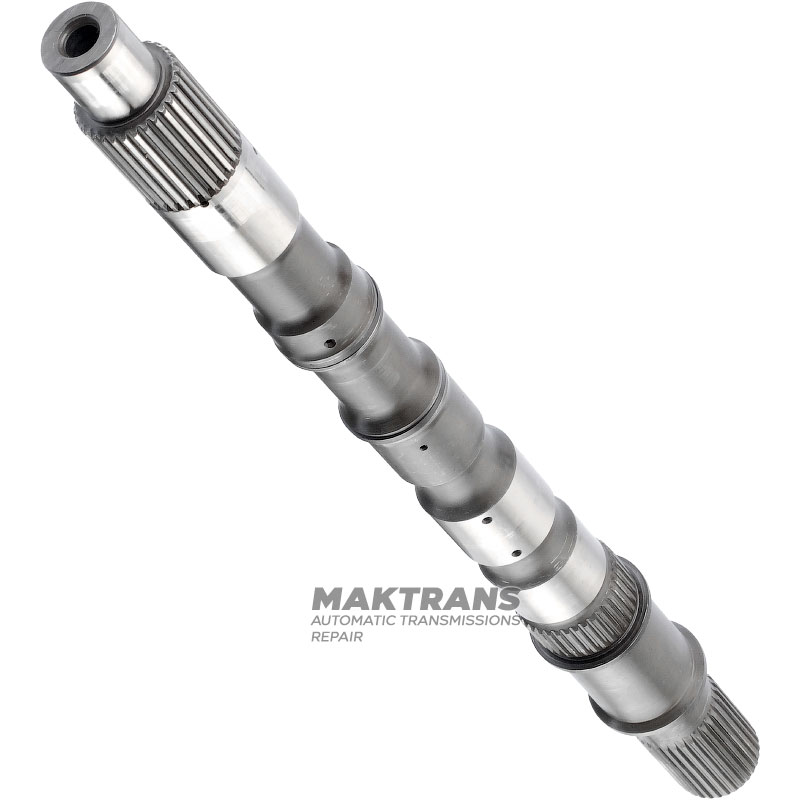

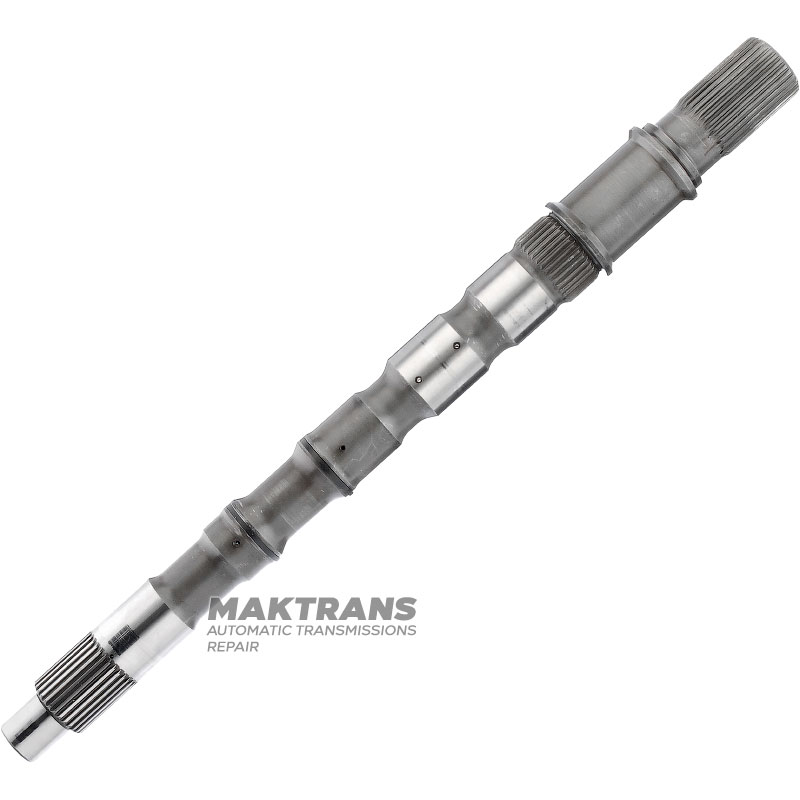

Output shaft RE5R05A / RE7R01A—overall length 459 mm, 30 splines (outside Ø 31.40 mm, L35 mm), 36 splines (outside Ø 37.60 mm, L20 mm), 32 splines (outside Ø 33.60 mm, L50 mm)

• Total shaft length - 459 mm;

Number of splines on shaft:

• 30 splines - outer Ø 31.40 mm - length of splined part 35 mm;
• 36 splines - outer Ø 37.55 mm - length of spline part 20 mm;
• 32 splines - outer Ø 33.60 mm - length of splined part 50 mm;
