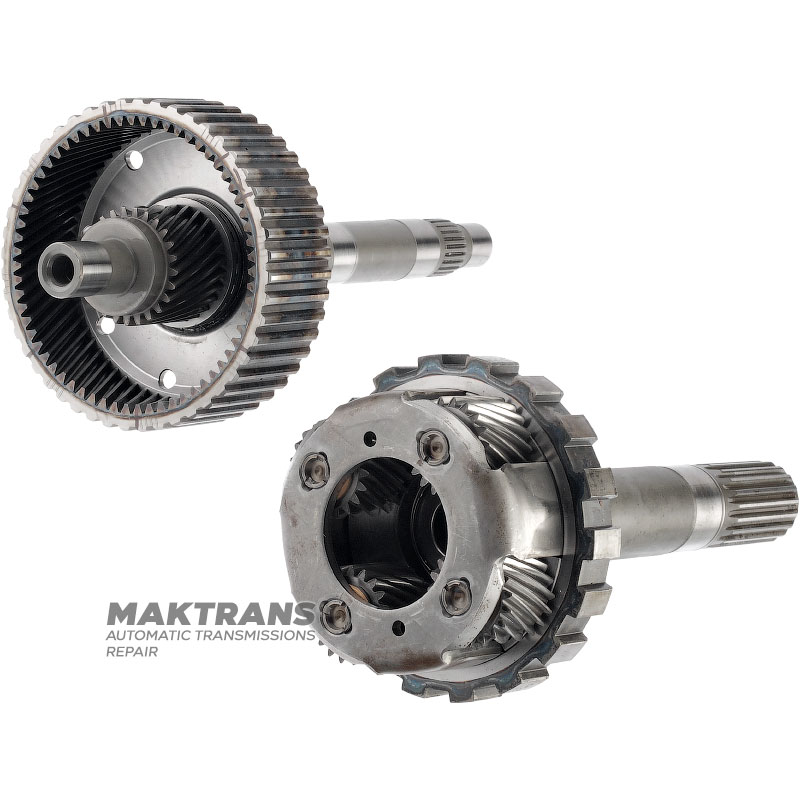

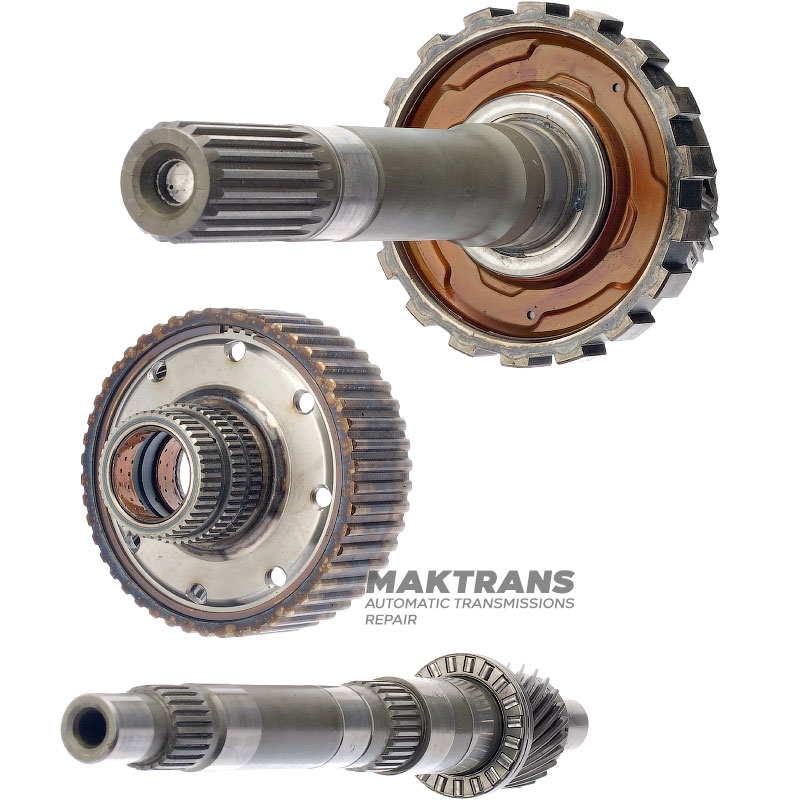

Output shaft TOYOTA / LEXUS A750E, A760E - shaft length 220 mm, 19 splines

Planetary gear with output shaft:

• Overall height - 277 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 19 pcs.;
• Satellite outer diameter - 35.40 mm;
• Number of teeth on the parking gear - 18 pcs.;
• Parking gear outer diameter - 123.95 mm;

Output shaft:

• Shaft length from base - 220 mm;
• The diameter of the working part at the base of the shaft is 41.50 mm;
• Number of splines on the shaft - 19 pcs.;
• Length of the splined part - 64 mm;

Sun gear (with shaft):

• Total shaft length - 296 mm;
• Number of teeth on the sun gear - 25 pcs.;
• The outer diameter of the sun gear is 43.80 mm;

Number of splines on shaft:

• 23 slots - outer Ø 24.60 mm;
• 27 splines - outer Ø 29.20 mm;

External diameters of the working parts of the shaft:

• 20mm (sun gear side);
• 32.08 mm — x2;
• 25.95 mm - x2;
• 20 mm;

Ring gear:

• Overall height - 83.50 mm;
• Height of ring gear (without spline flange) - 41.63 mm;
• The outer diameter of the ring gear is 122.50 mm;
• Number of teeth on the ring gear - 63 pcs.;
• The inner diameter of the bushings is 32.20 mm;

Number of splines on the neck:

• 43 slots - outer Ø 46.05 mm;
• 48 splines - outer Ø 51.25 mm;
