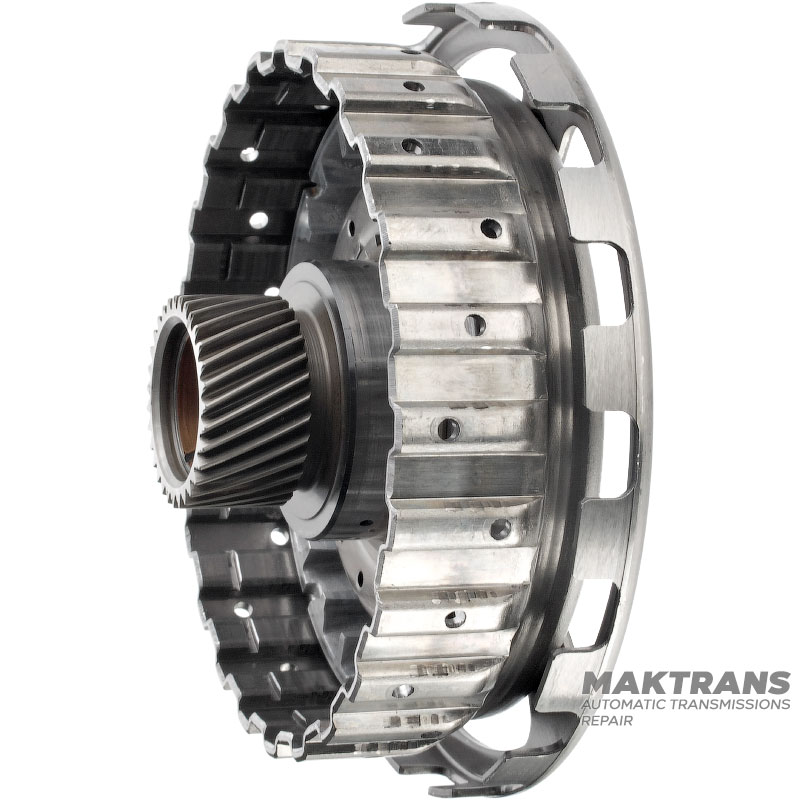

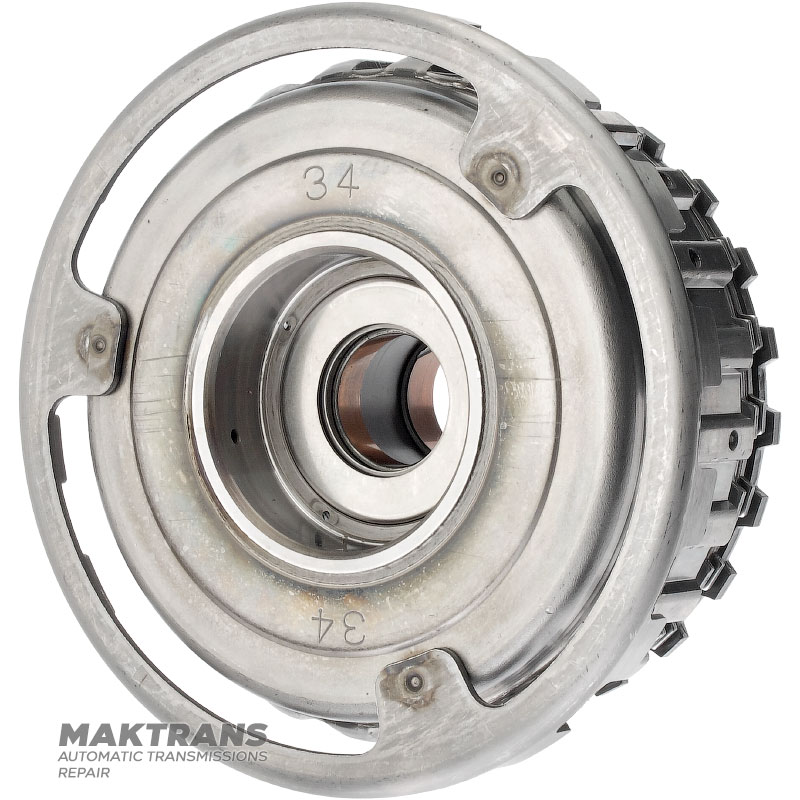

OVERDRIVE Clutch Drum (2 friction discs) / OVERDRIVE planetary sun gear (31 teeth, outer Ø 41.40 mm) — Aisin Warner 30-40LE, 30-80LE

• Overall height - 68 mm;
• Number of teeth on the sun gear - 31 pcs.;
• Gear outer diameter - 41.40 mm;
• Inner diameter of the sleeve - 27.10 mm;
• Drum outer diameter - 140.85 mm;
• The outer diameter of the gear ring is 158 mm;

OVERDRIVE Clutch:

• Height from piston to drum retaining ring - 12.50 mm;
• The total thickness of the disc set is 11.75 mm;

Support disk:

• Thickness - 3.55 mm;
• Inner diameter - 104.85 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2 mm;
• Outer diameter - 126.05 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 105 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 2 pcs.;
