Overdrive Clutch Drum A4LD, 4R44E, 4R55E, 5R55E, 5R55N, 5R55S, 5R55W FOTZ-7L669-A - Drum with sleeve, 2 friction discs (total thickness of the set 12.10 mm)

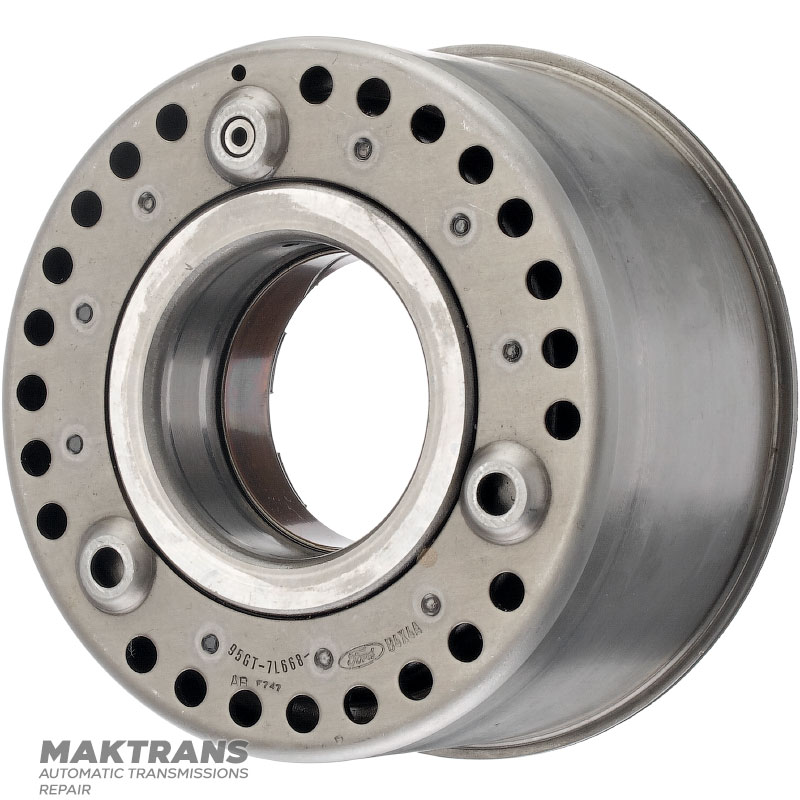

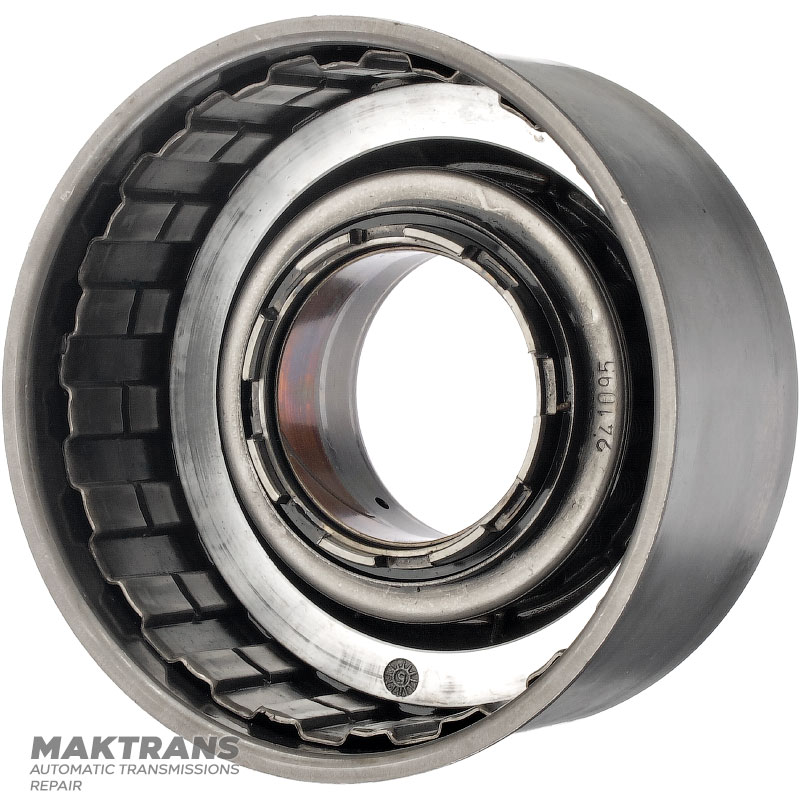

Drum:

• Overall height - 74 mm;
• Drum outer diameter - 137.15 mm;
• Inner diameter under the hub - 59.60 mm;
• Inner diameter of the sleeve - 56.60 mm;
• Height from piston to retaining ring - 12.50 mm;

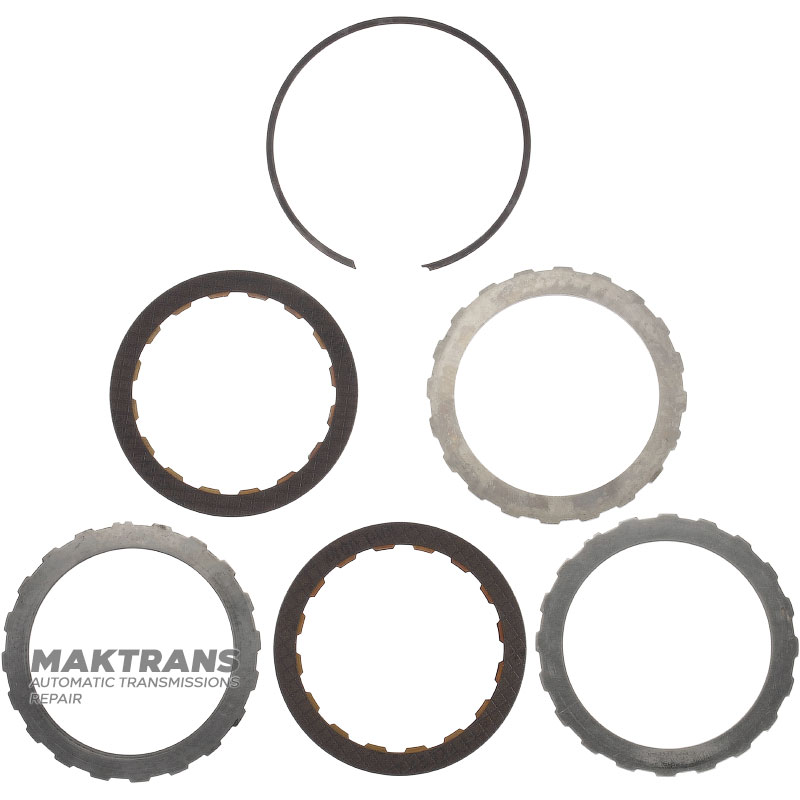

Overdrive Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 12.10 mm;

Support disk:

• Thickness - 5.10 mm;
• Inner diameter - 100.50 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.80 mm;
• Outer diameter - 124.20 mm;
• Number of teeth - 16 pcs.;
• Number of teeth in the set - 2 pcs.;

Steel disk:

• Thickness - 1.70 mm;
• Inner diameter - 100.65 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 2 pcs.;
