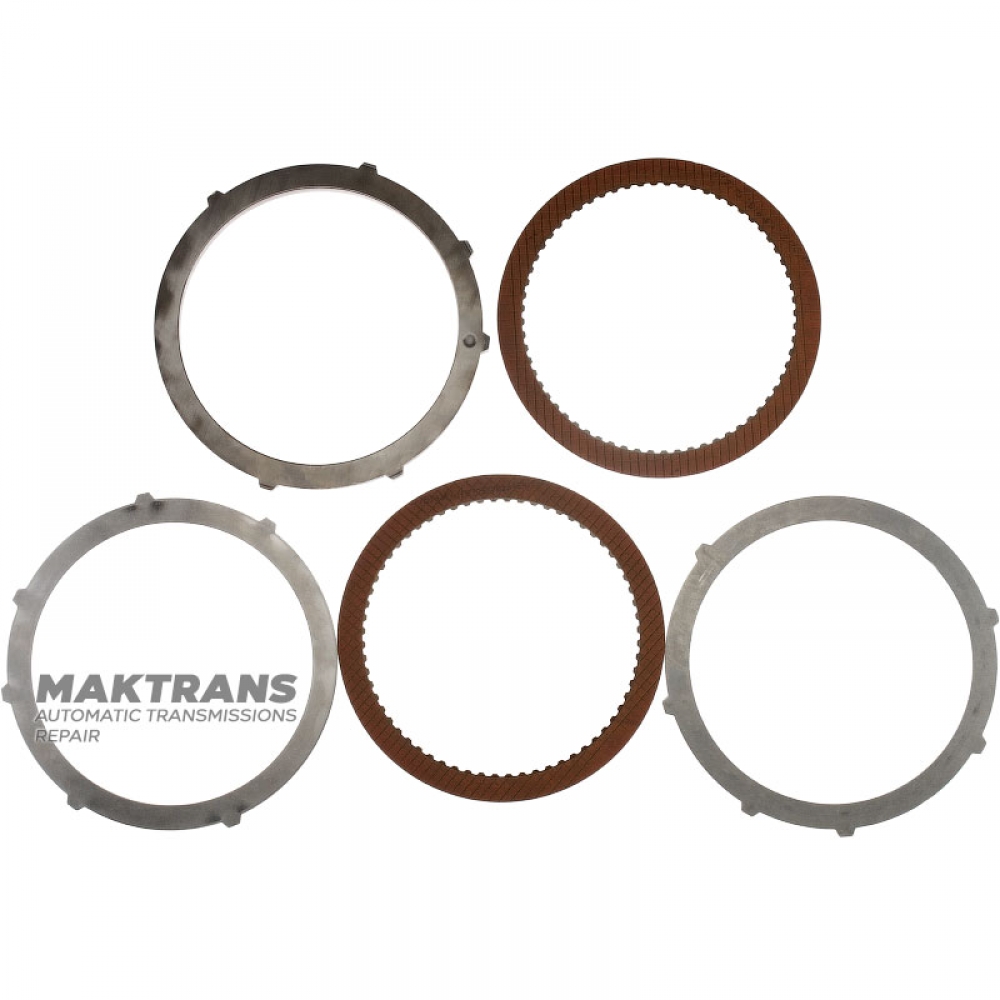

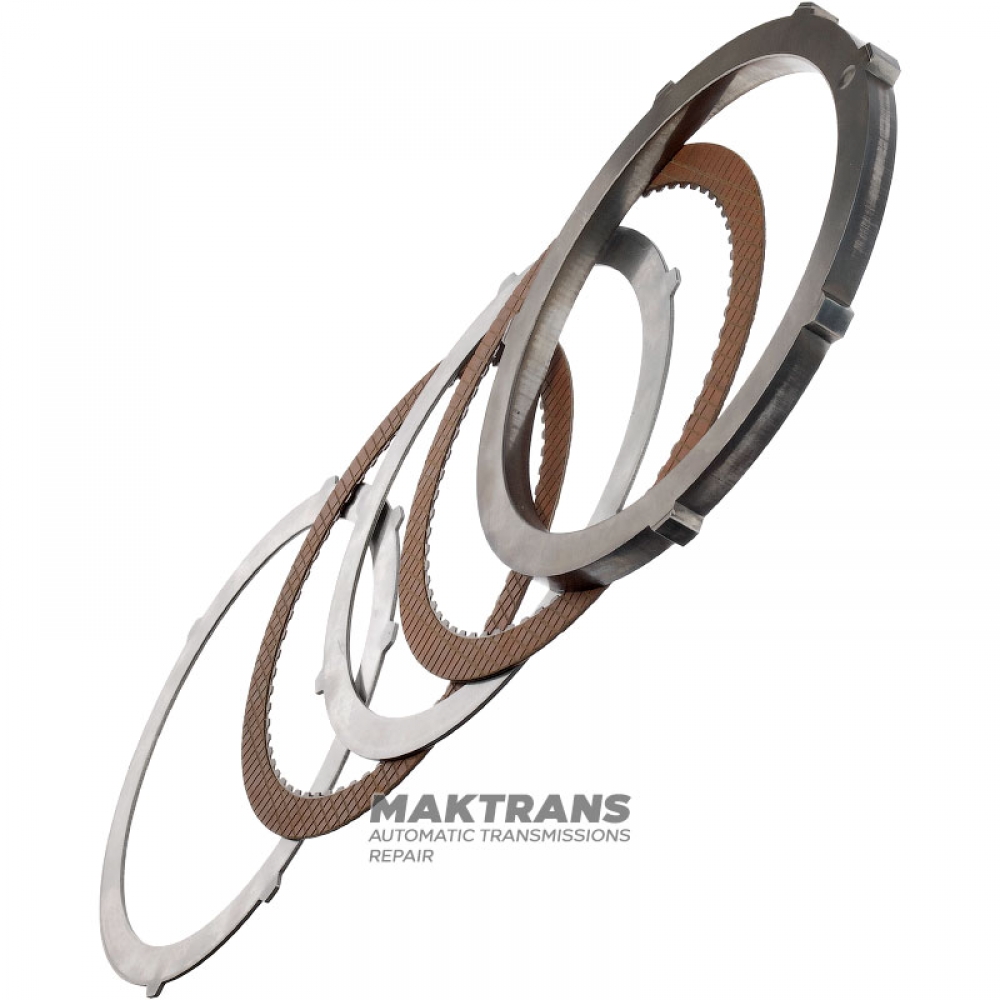

Overdrive Clutch Steel and Friction Disc Set FORD E4OD — E9TZ-7B164-A, E9TZ7B164A, E9TZ-7B442-A, E9TZ7B442A (2 friction discs, support disc thickness 12.50 mm)

• The total thickness of the set is 20.60 mm;

Support disk:

• Thickness - 2.50 mm;
• Inner diameter - 189.30 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2 mm;
• Outer diameter - 221 mm;
• Number of teeth - 64 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 2.05 mm;
• Inner diameter - 189.50 pcs.;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 2 pcs.;
