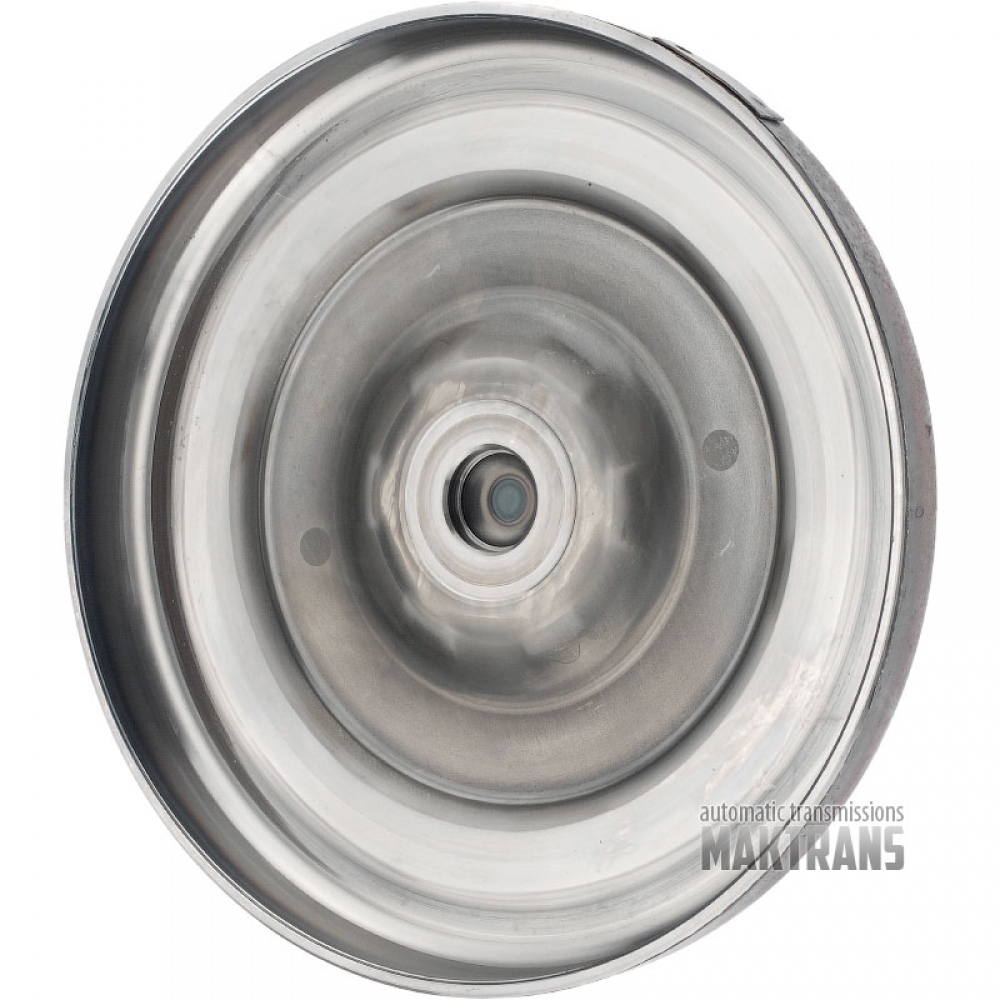

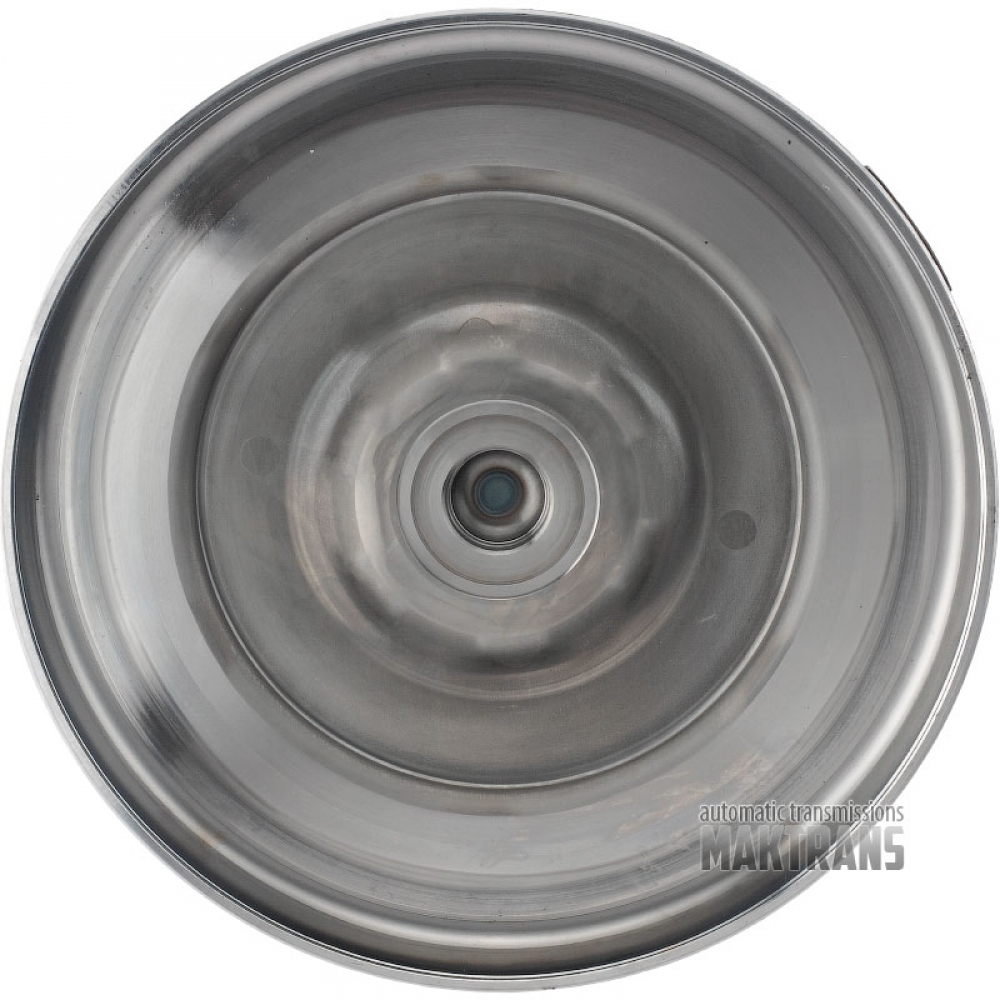

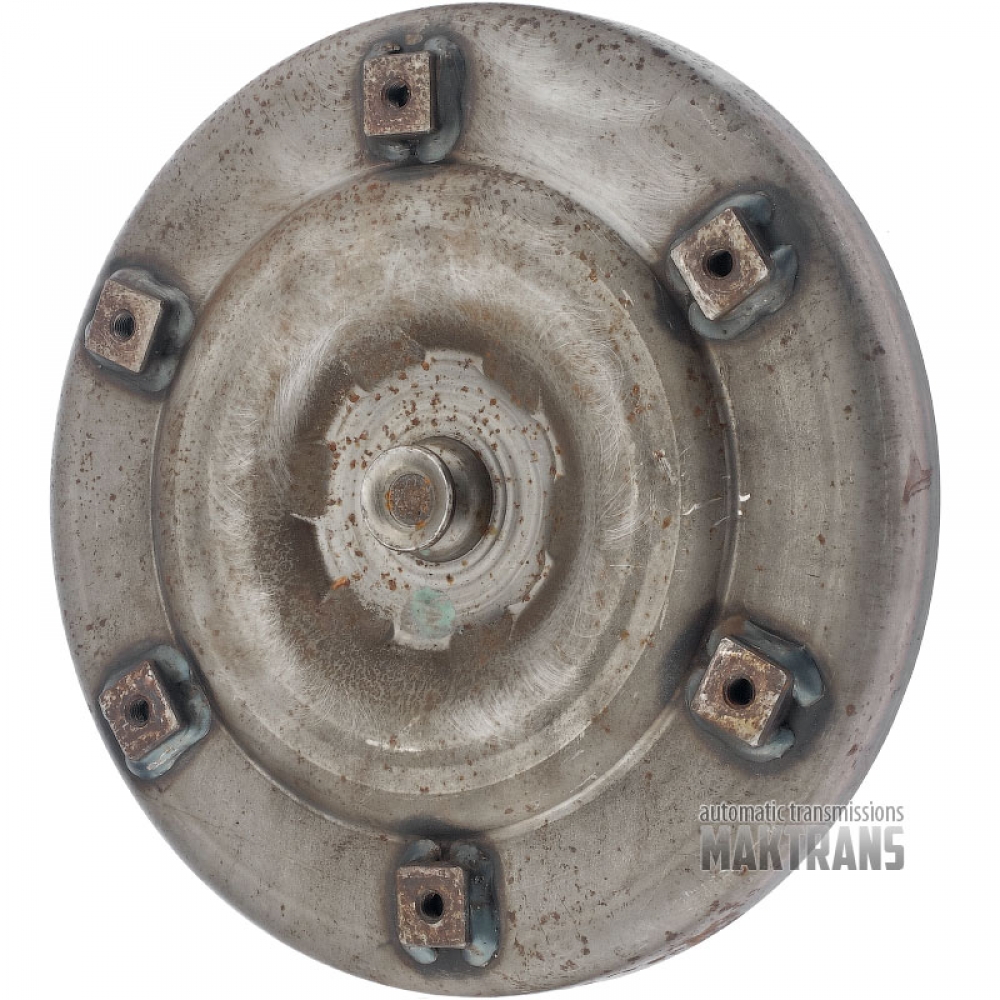

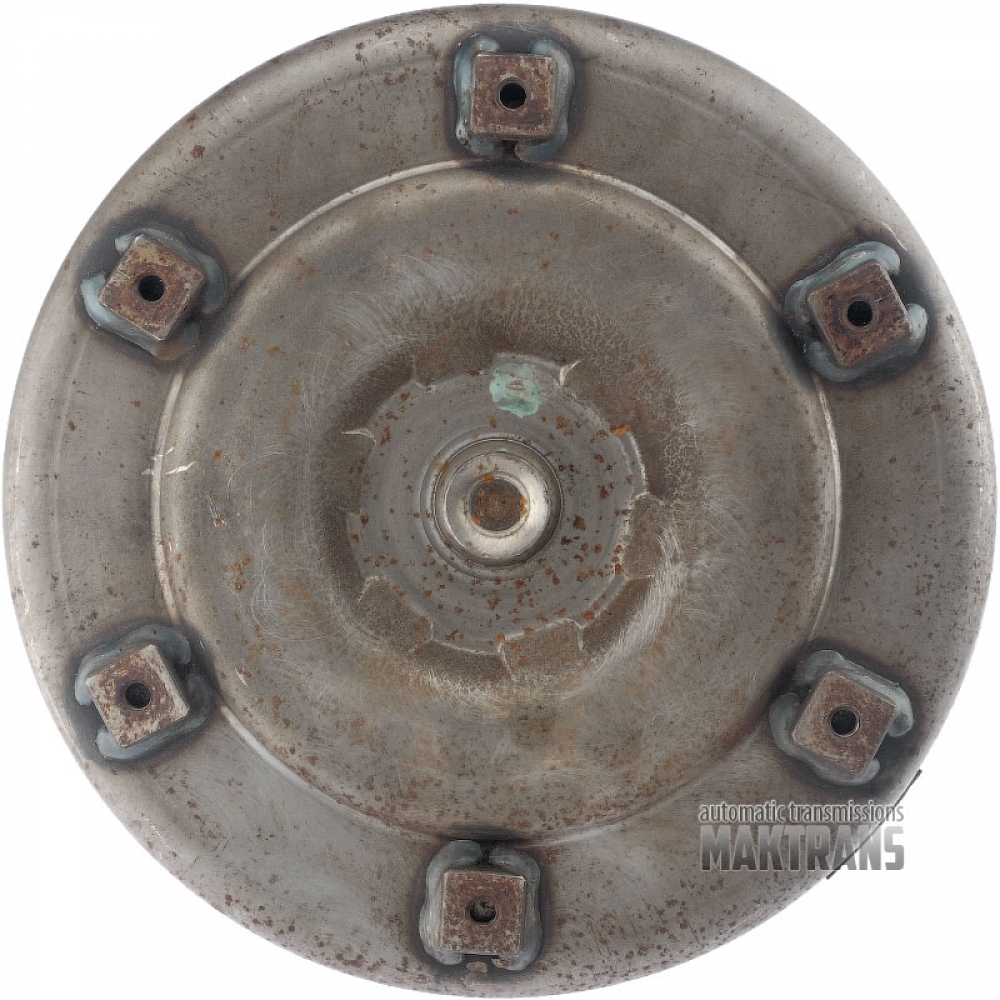

Torque converter front cover TOYOTA AC60 / [outer Ø 299.80 mm, 6 mounting holes (inner Ø 7.60 mm), outer Ø pilot 31.90 mm]

• Total height - 46 mm;
• The outer diameter of the case is 299.80 mm;
• Pilot height - 20 mm;
• Pilot outer diameter - 31.90 mm;
• Number of mounting holes - 6 pcs.;
• The inner diameter of the mounting hole is 7.60 mm;
• The radius from the center of the pilot to the center of the mounting hole is 20 mm;
• The distance between the centers of the mounting holes is 20 mm;

Tags: 3200071040 32000-04010, 32000-04020, 32000-26080, 32000-71050 58A100
