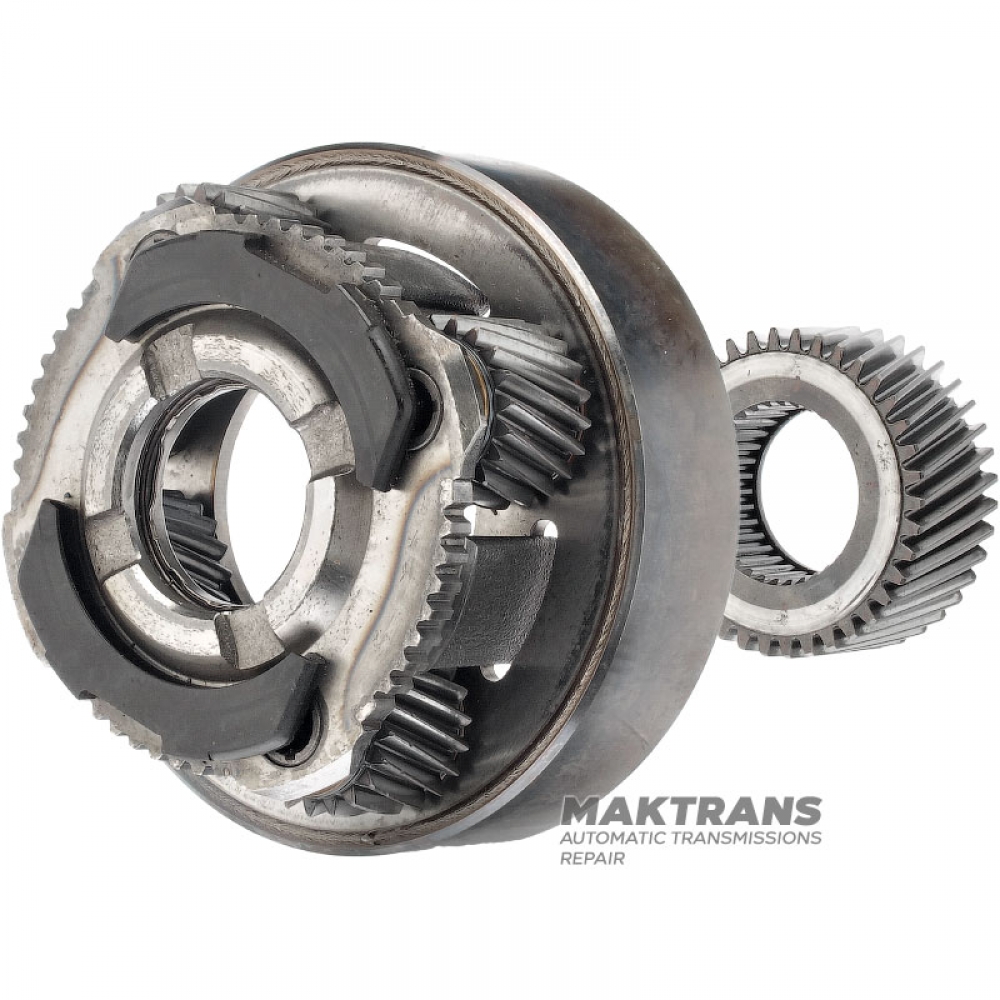

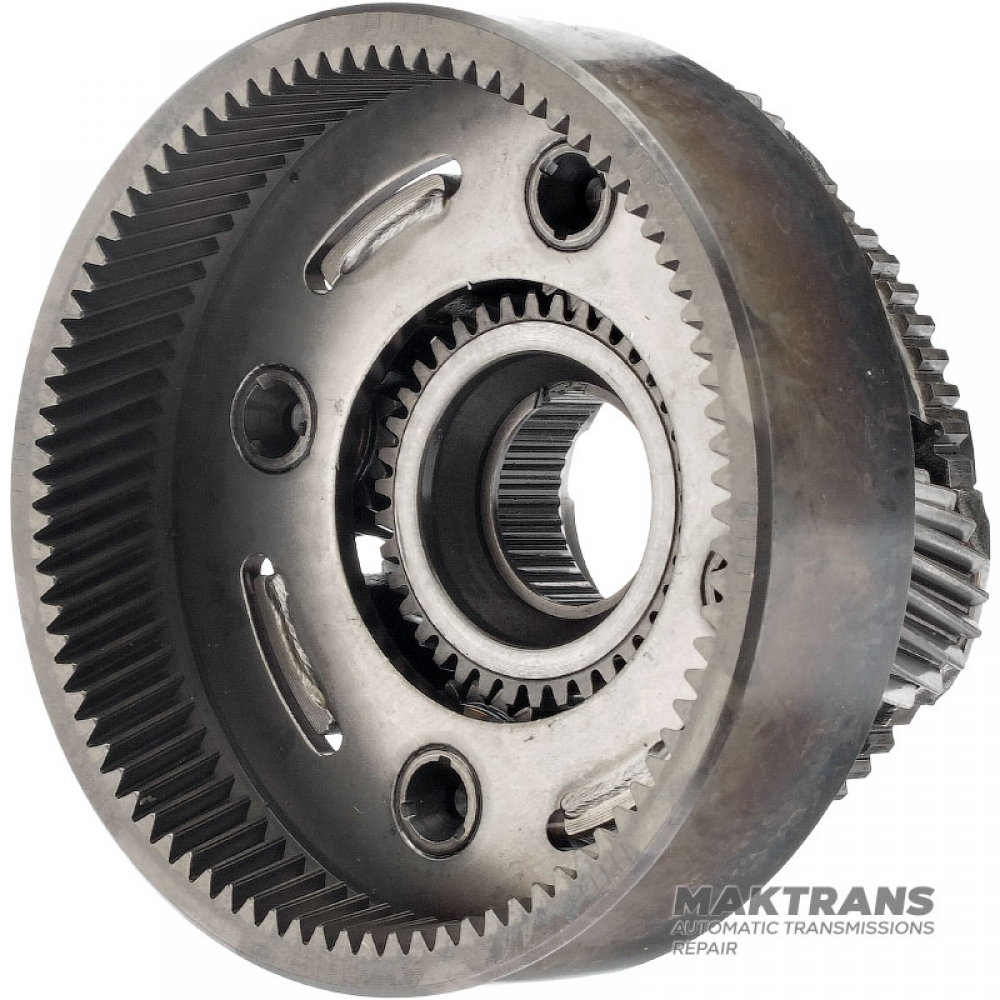

Front planetary gear ZF 4HP16 - 4 satellites (20 teeth per satellite), sun gear 38 teeth (ext.Ø 52.65 mm)

• Overall height - 67 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 20 pcs.;
• Outside diameter (ring gear) - 119.95 mm;
• Number of teeth of the ring gear of the rear planetary gear - 86 pcs.;

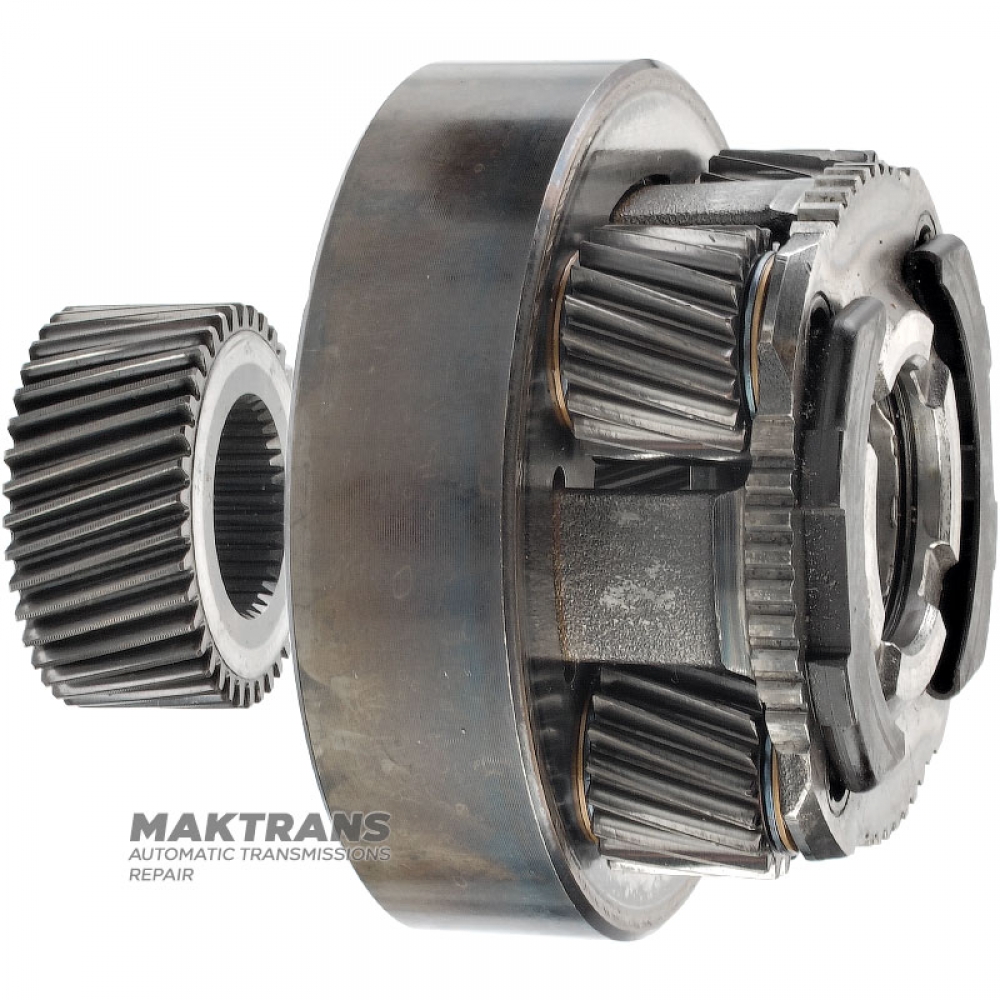

Front planetary gear sun gear:

• Overall height - 24.65 mm;
• Outer diameter - 52.70 mm;
• Number of teeth - 38 pcs.;
• Number of splines on the inner side - 34 pcs.;
