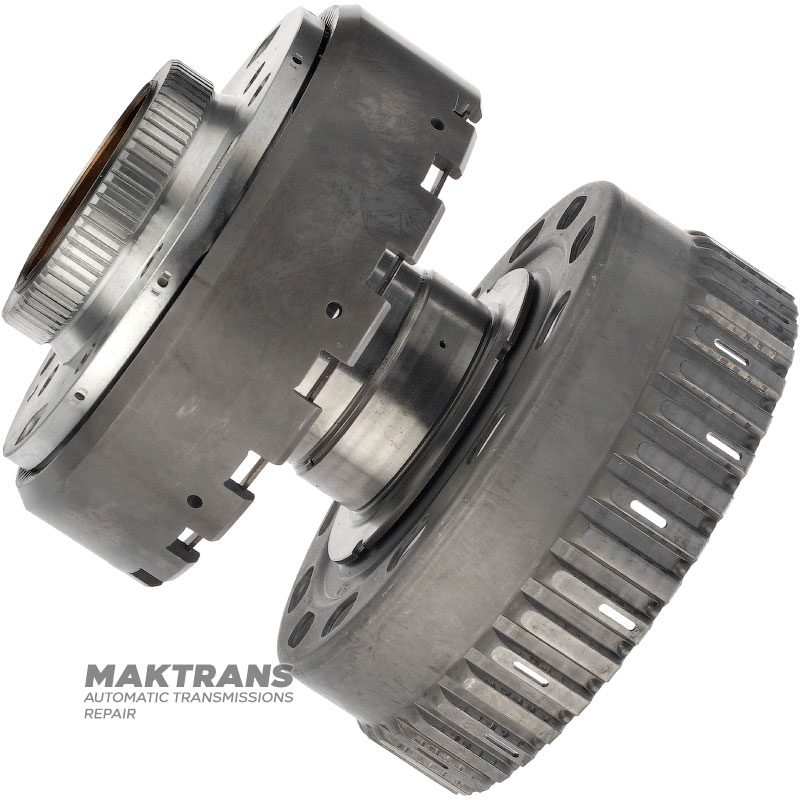

Front planetary gear TOYOTA / LEXUS AB60E, AB60F 07-up - 4 satellites (18T) x 4 satellites (19T), 3574334010, 3571434010, 3572034020, 350490C030

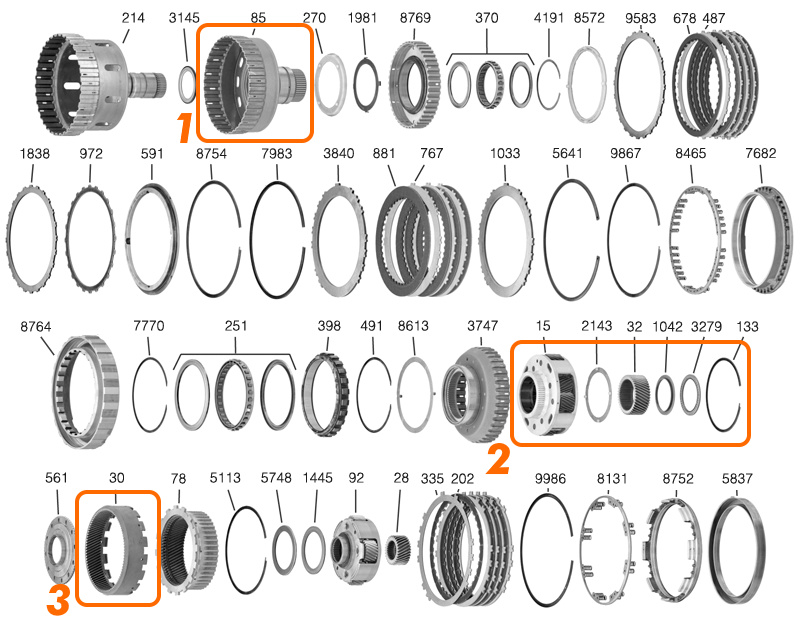

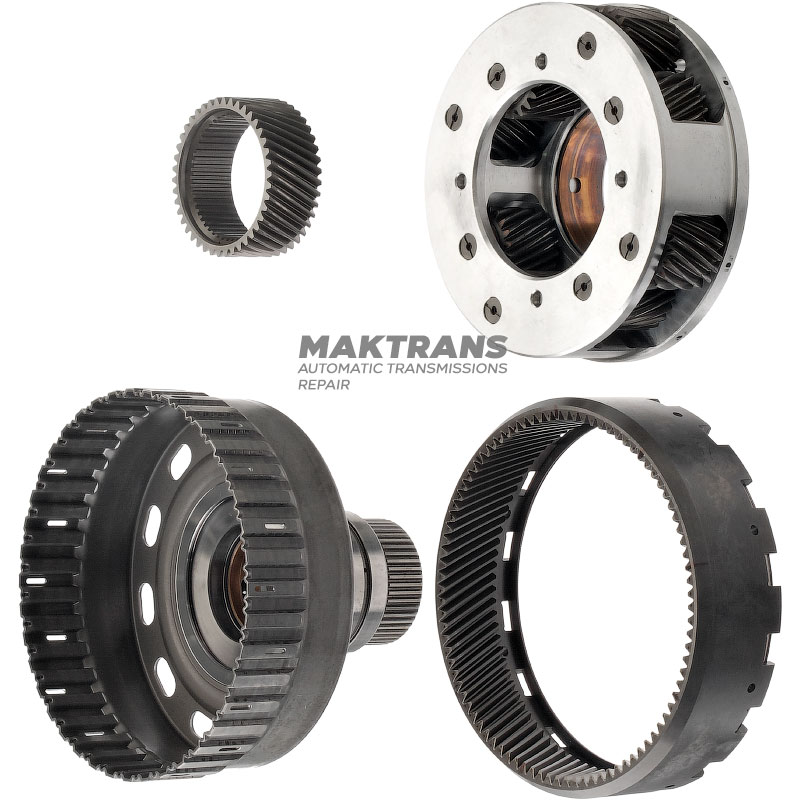

1. Reverse Clutch Hub:

• Overall height - 133.50 mm;
• Inner diameter of the sleeve - 41.95 mm;
• Number of splines - 50 pcs.;
• The outer diameter of the splined part is 53.70 mm;
• The outer diameter of the working parts of the neck is 60.90 mm | 63.55 mm;
• Hub height - 57 mm;
• Hub outer diameter - 158 mm;

2. Planetary gear:

• Overall height - 61.50 mm;
• Number of splines on the neck - 75 pcs.;
• Outer diameter of spline part - 79.95 pcs.;
• Inner diameter of the sleeve - 61 mm;
• Inner case diameter - 73 mm;
• Outer body diameter - 133.80 mm;

Planetary gear satellites:

• External satellites (ring gear) - 4 satellites | 18 teeth;
• Internal satellites (sun gear) - 4 satellites | 19 teeth;

2.2. Sun gear:

• Overall height - 27.80 mm;
• Number of teeth - 42 pcs.;
• Gear outer diameter - 67.85 mm;
• Number of splines on the inner side - 50 pcs.;

3. Ring gear:

• Overall height - 43.25 mm;
• Outer diameter - 153.80 mm;
• Number of teeth - 90 pcs.;

• 3572034020, 3571434010, 3574334010
• Lexus GX470 (V8 4.6L), LX570 (V8 5.7L)
• Toyota Landcruiser (5.7L), Sequoia (5.7L), Tundra (4.6L, 5.7L)
