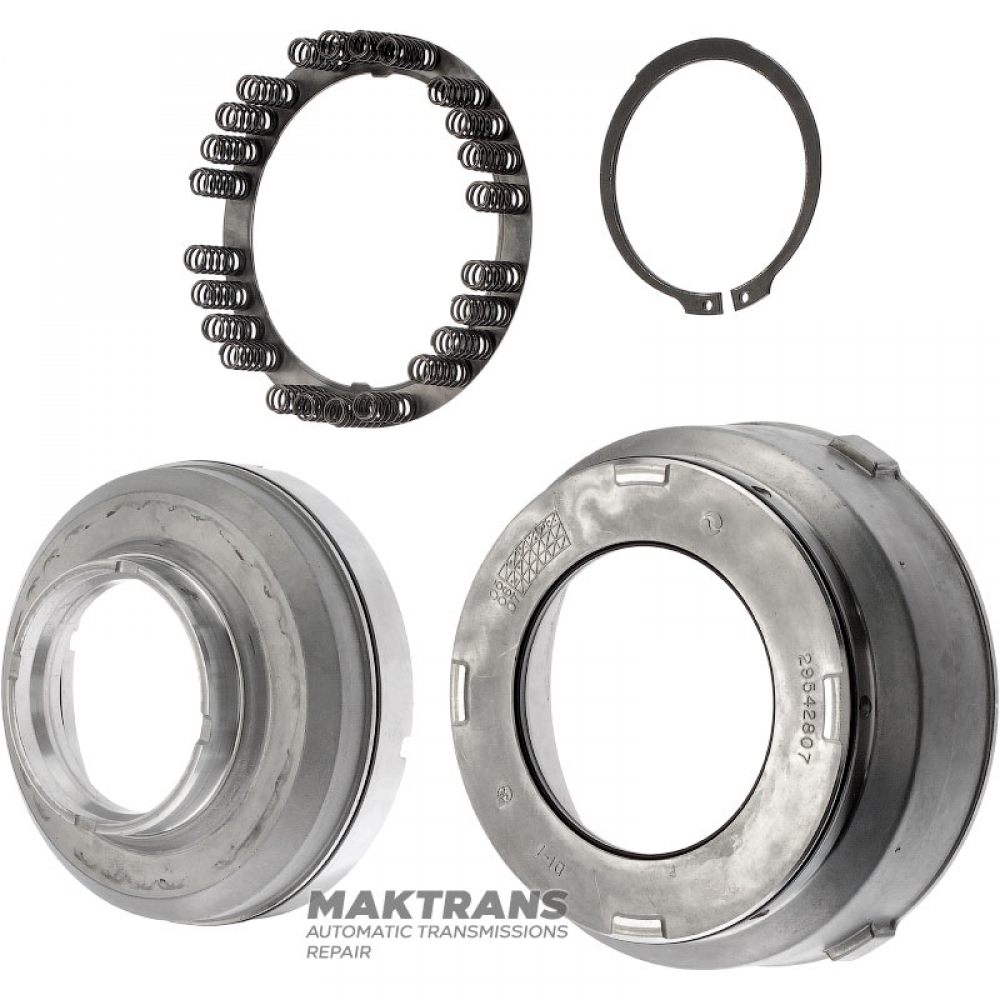

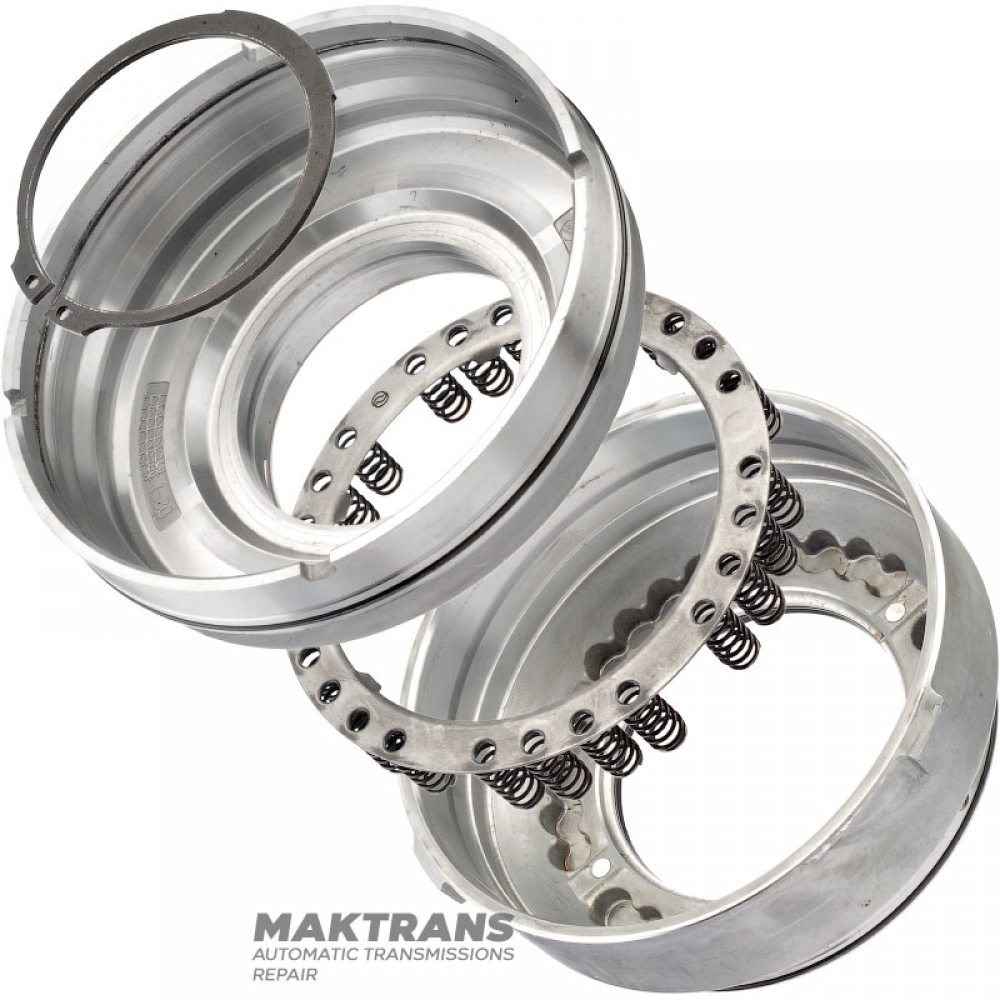

Piston C1 Clutch (set) ALLISON 1000, 2000, 2400 — 29542811, 29542807

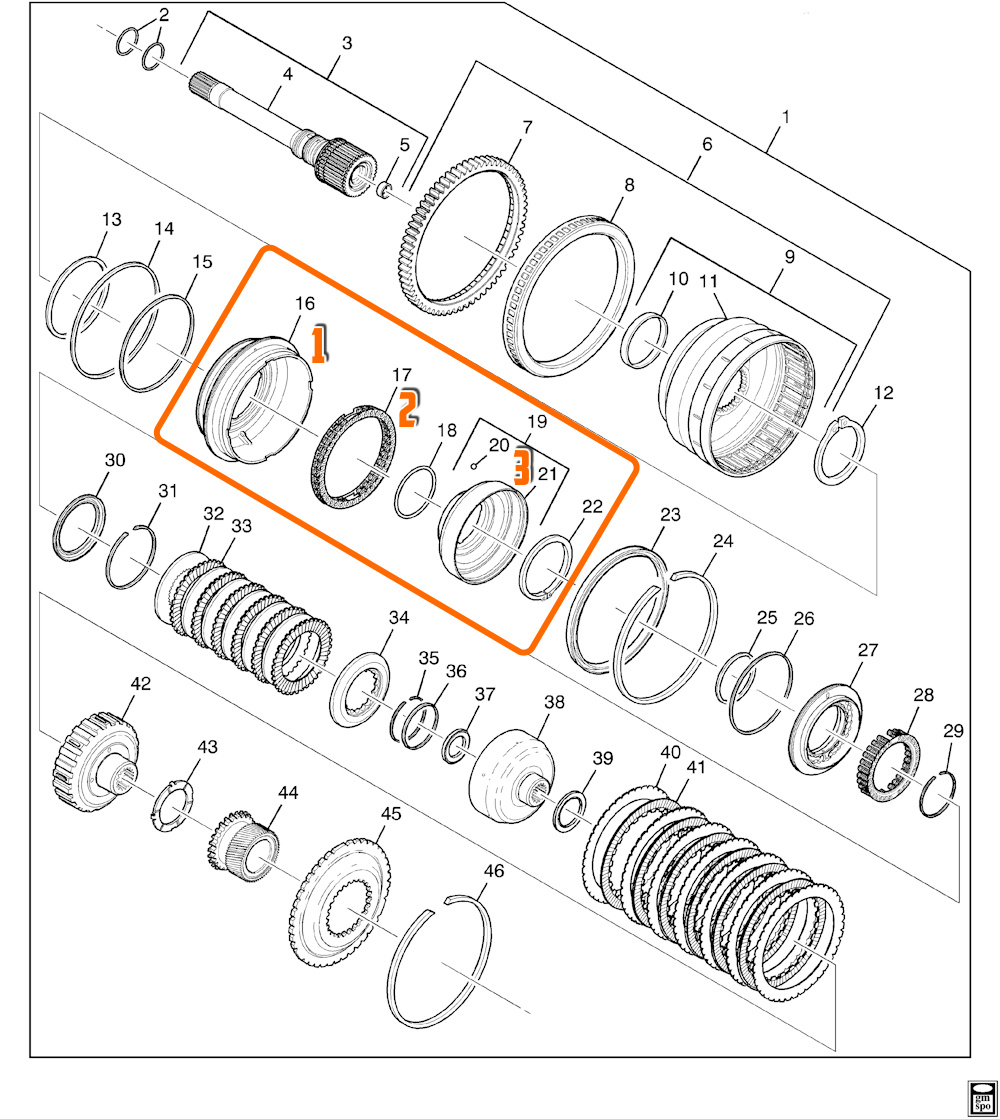

Piston 29542807 (No. 1 in the fig.):

• Overall height - 72 mm;
• Outer diameter (by rubber ring - 157.30 mm;
• Inner diameter - 100.70 mm;

Return spring block (No. 2 in the figure):

• Overall height - 25.45 mm;
• Outer body diameter - 143.50 mm;
• Inner case diameter - 114.30 mm;

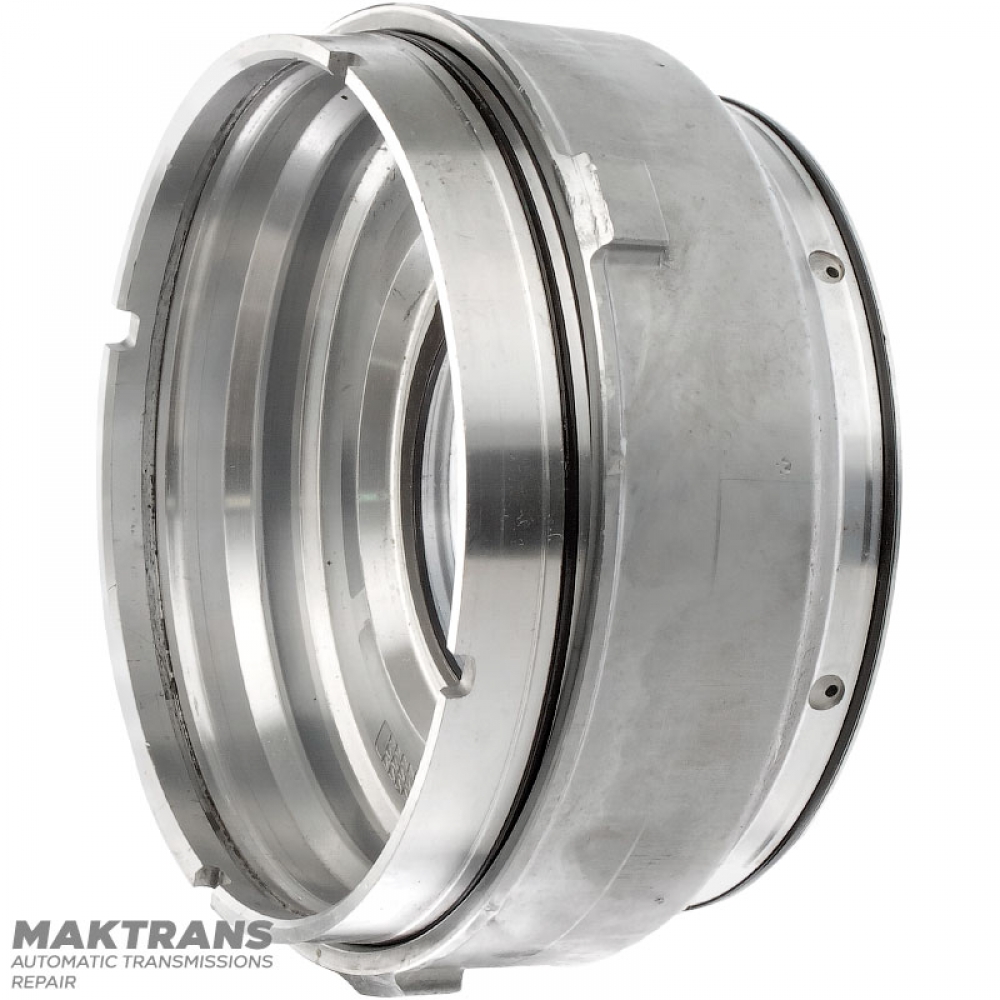

Piston 29542811 (No. 3 in the fig.):

• Overall height - 71 mm;
• Outer diameter of the neck - 100 mm;
• Outer diameter (by rubber ring) - 171.60 mm;
• Inner diameter - 85.20 mm;
