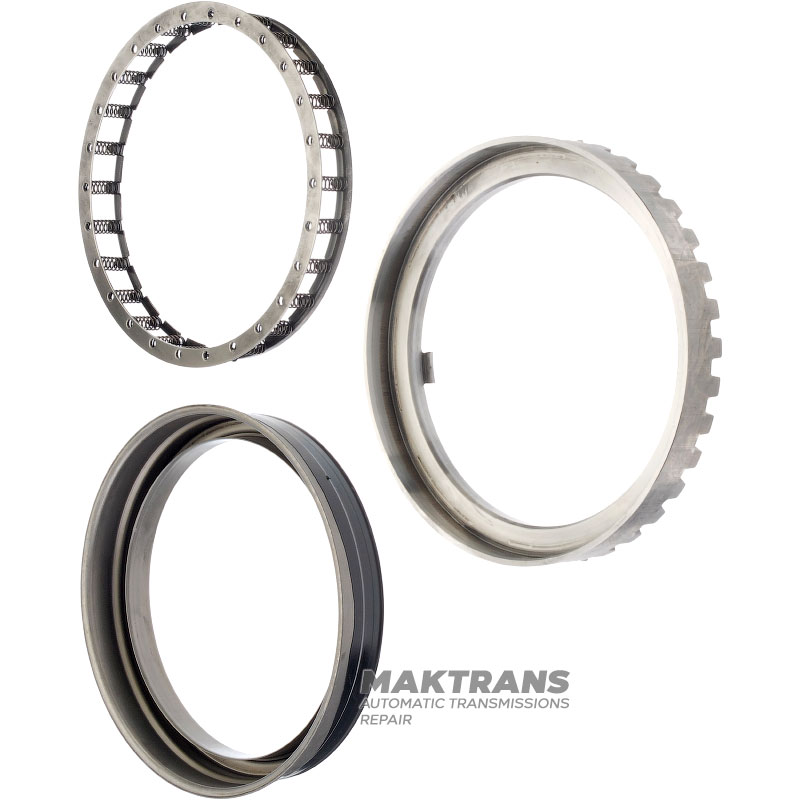

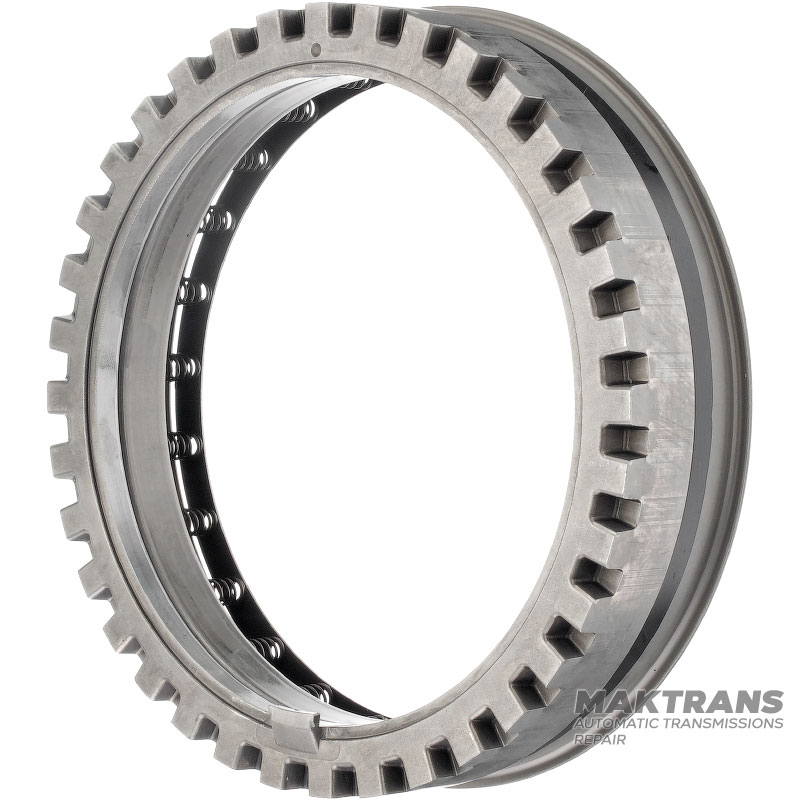

Piston kit 3-5-R Clutch FORD 6F15 / 6F35 - 9L8P-7F254-AC 9L8Z-7F235-A 9L8Z-7A262-B

Rubberized piston:

• Height - 28.10 mm;
• Outer diameter (on the rubberized part) - 152.75 mm;
• Inner diameter (on the rubberized part) - 131.35 mm;

Piston cylinder:

• Total height - 19.70 mm;
• Outer diameter - 159 mm;
• Inner diameter - 129.85 mm;
• The internal diameter of the piston cylinder is 153.05 mm;

Return spring block:

• Height 20.80 mm;
• Outer diameter - 145.95 mm / 151.60 mm;
• Inner diameter - 134.55 mm;
