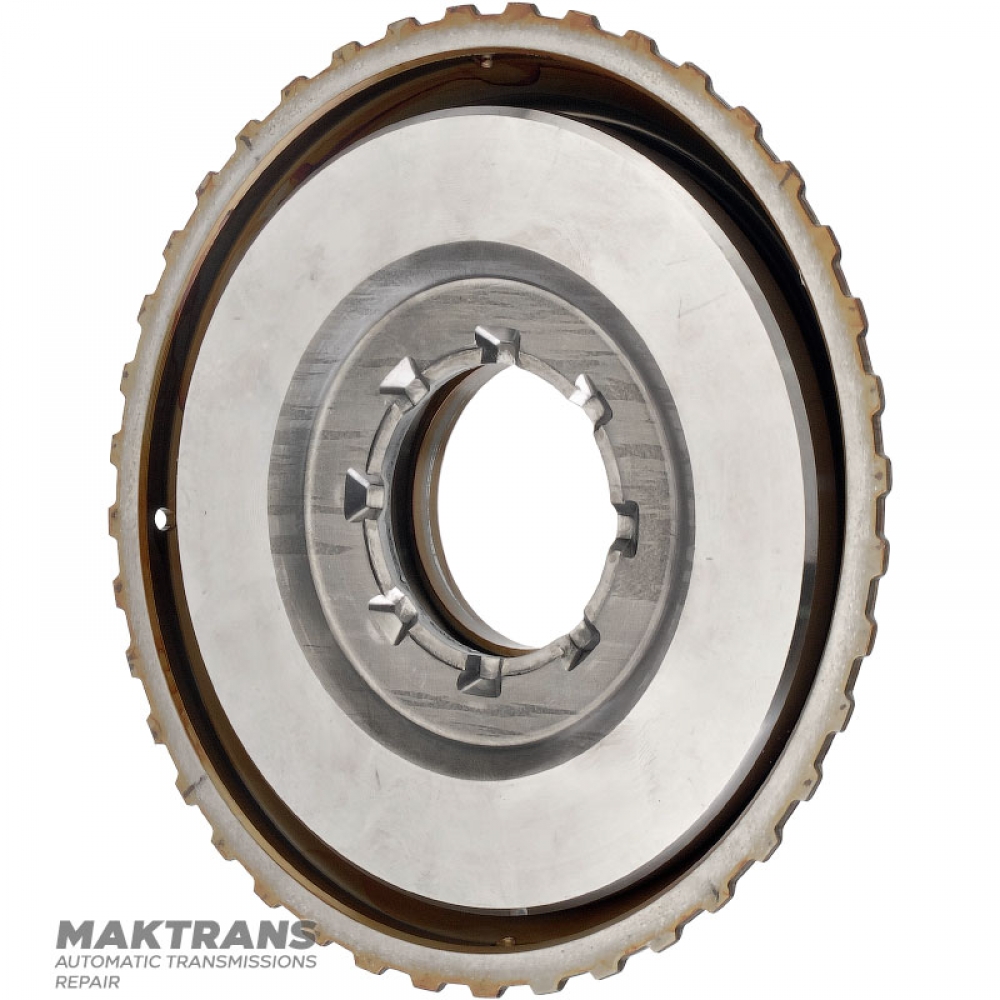

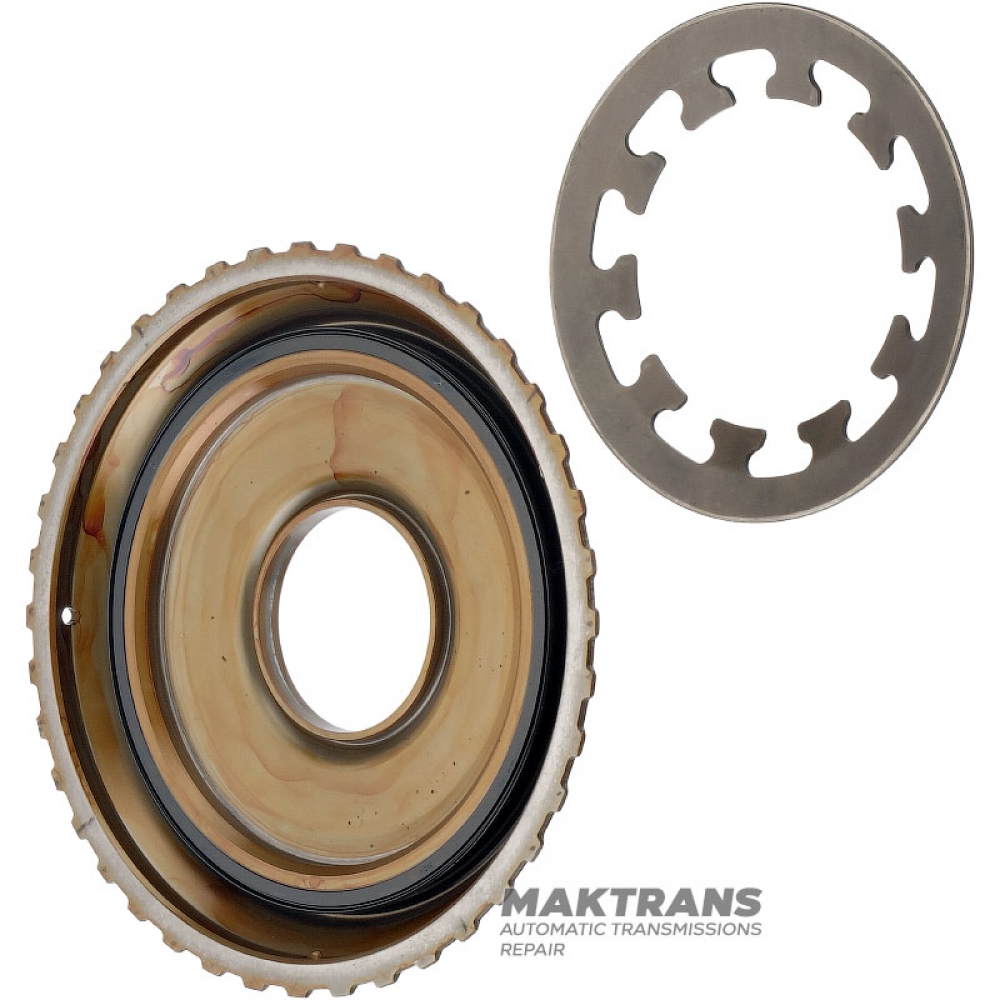

Piston Kit C1 Clutch TOYOTA / LEXUS UA80E, UA80F — 3561248020, 3562806030, 3562848010, 3566848020

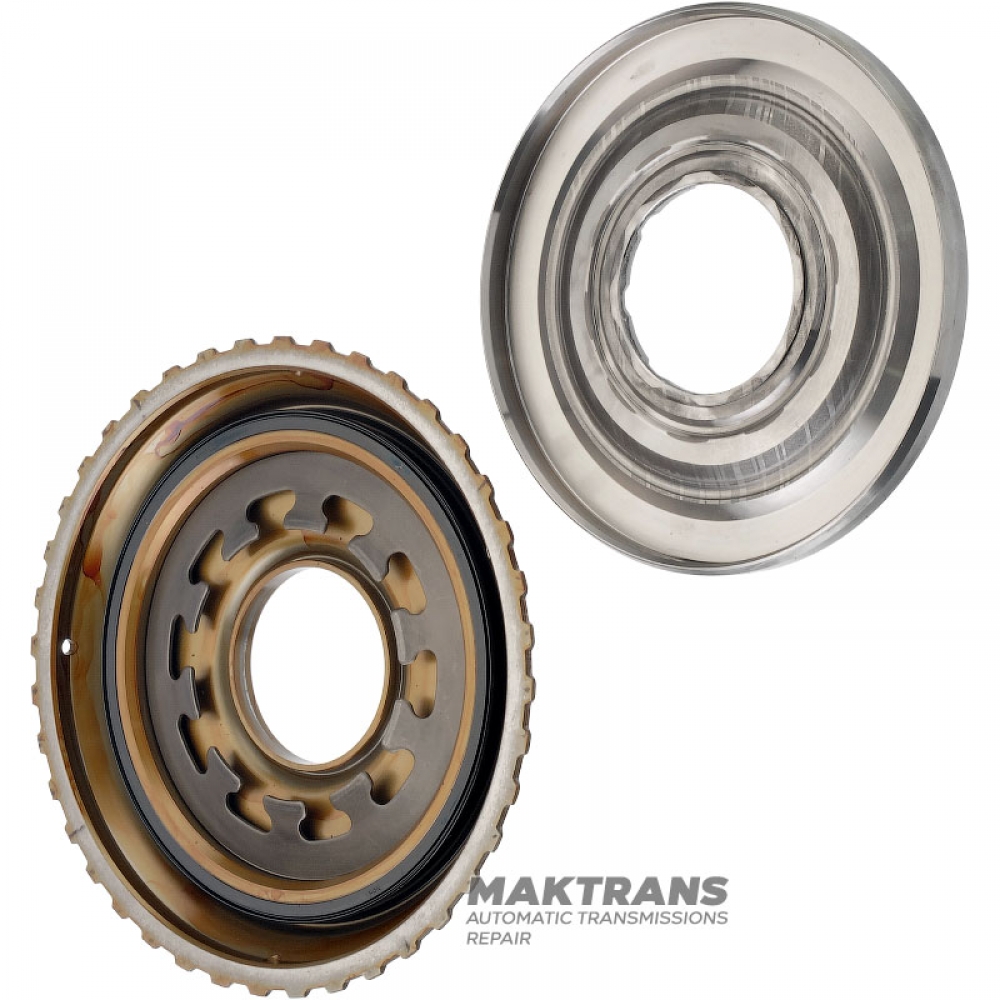

Counter piston:

• Total height - 10 mm;
• Outer diameter - 136.25 mm;
• Inner diameter - 49.85 mm;
• Part number - 3566848020;

Return spring:

• Thickness - 1.60 mm;
• Outer diameter - 108.70 mm;
• Part number - 3562848010, 3562806030;

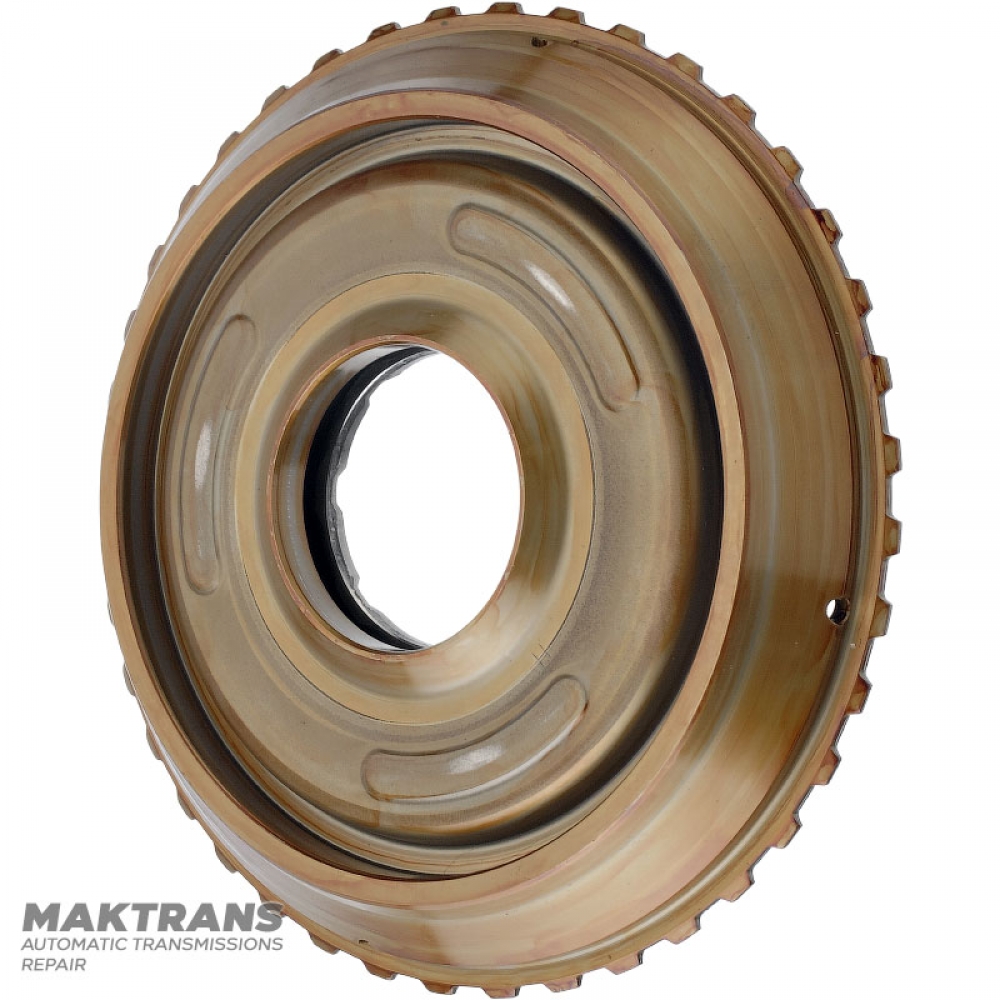

Piston:

• Overall height - 23 mm;
• Inner diameter - 50.40 mm;
• Outer diameter (rubberized part) - 130.40 mm;
• Number of teeth on the outer crown - 167.40 mm;
• Outer diameter of the gear ring - 40 pcs.;
• Marking - XR1898E;
• Part number - 3561248020;
