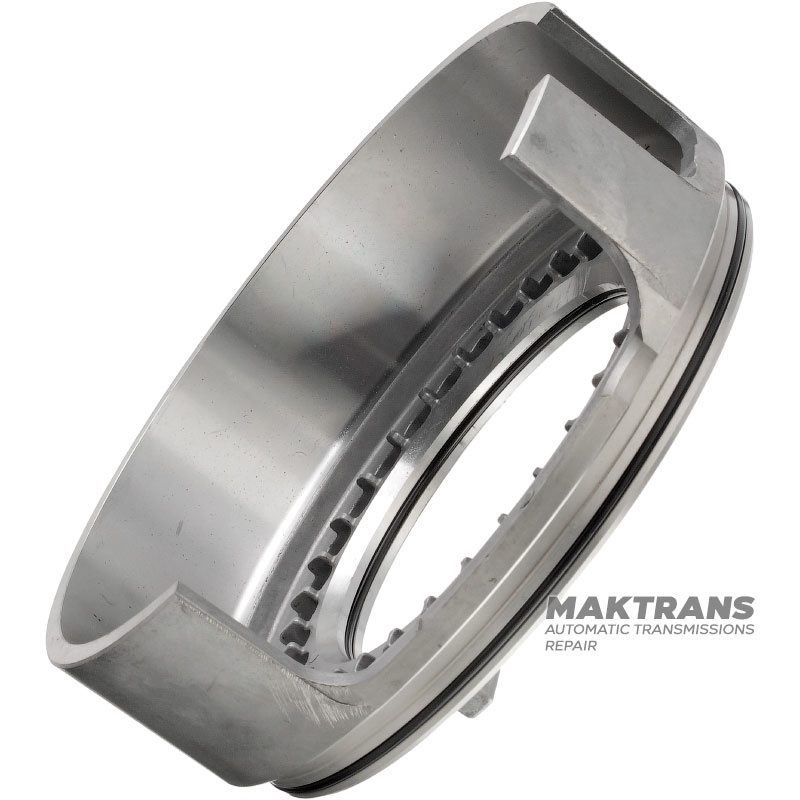

Piston with return spring B2 Brake AS68RC, AS69RC (DODGE RAM 4500/ 5500) — 345923-32030, 34592332030

Piston:

• Overall height - 72mm (81mm);
• Outer diameter - 209.35 mm;
• Outer diameter of rubber ring - 195.80 mm;
• Inner diameter - 121.15 mm;

Return spring block:

• Overall height - 30.85 mm;
• Outer body diameter - 164.70 mm;
• Inner case diameter - 119.20 mm;

Retaining ring:

• Thickness - 1.50 mm;
• Outer diameter - 117.70 mm;
• Inner diameter - 109.50 mm;
