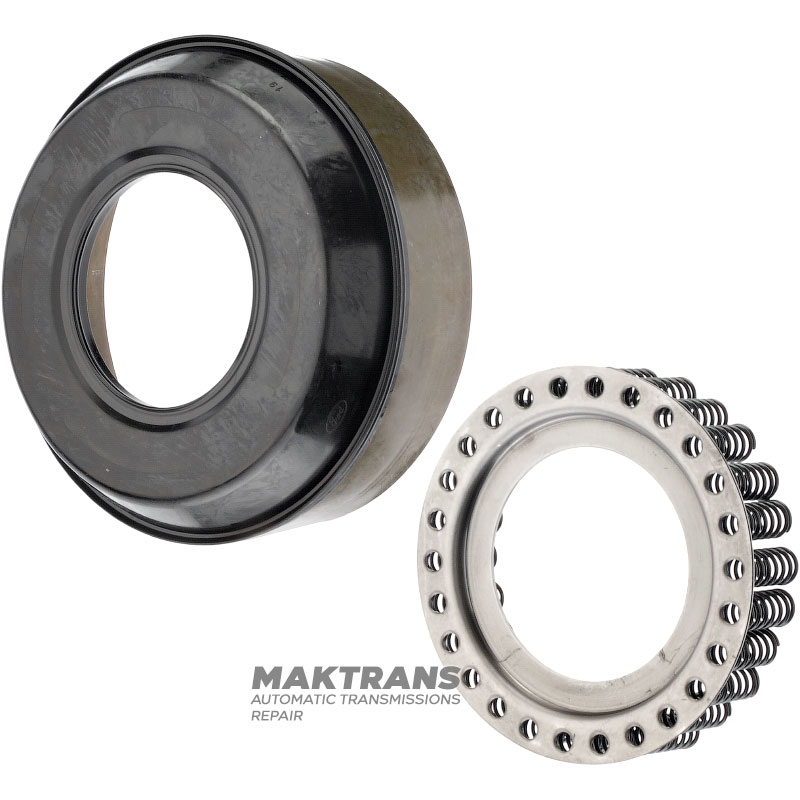

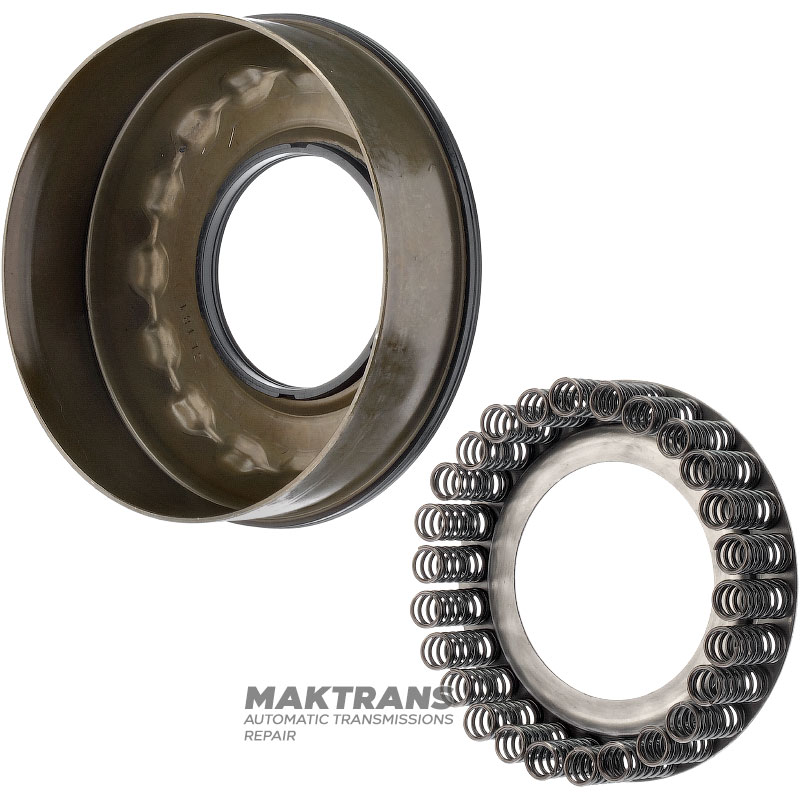

Piston (with return spring block) Low / Reverse Brake FORD 5R110W — 3C3Z-7D406-AA, 3C3P-7D402-AD, 3C3Z-7D402-AA

Rubberized piston:

• Height - 67 mm;
• Outer body diameter - 168.50 mm;
• The outer diameter of the rubberized part is 175.20 mm;
• Inner diameter - 80.70 mm;

Return spring block:

• Height - 29.95 mm;
• Outer diameter - 128.90 mm;
• Inner diameter - 75.50 mm;
