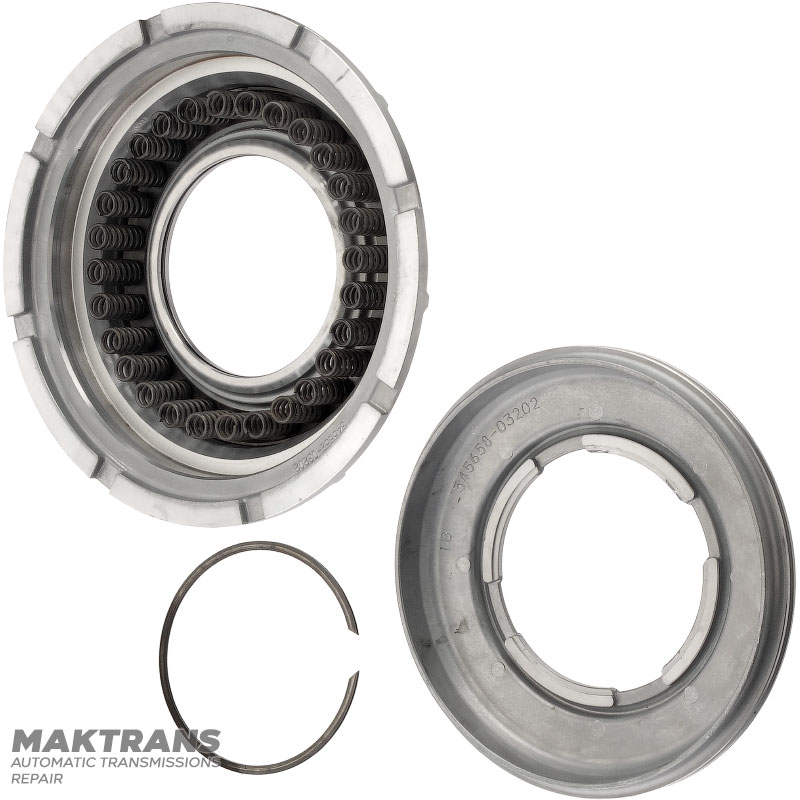

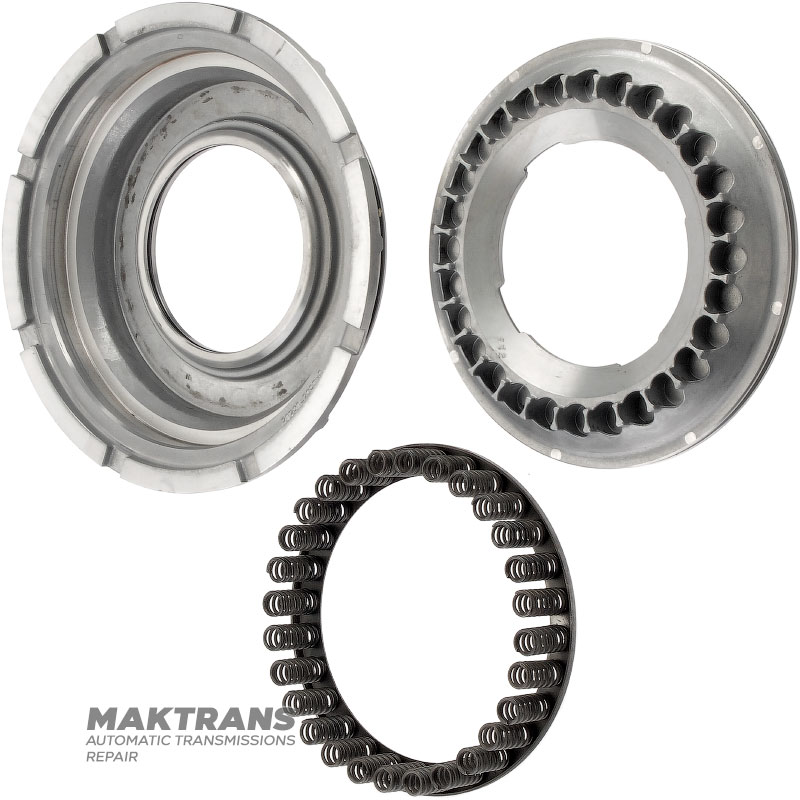

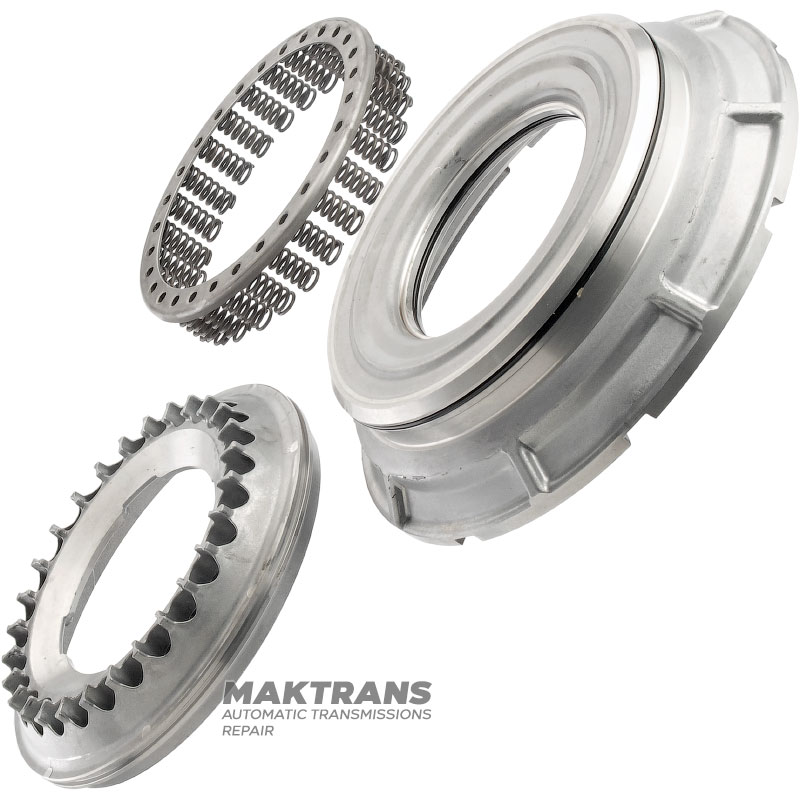

Piston with return spring K2 Clutch AS68RC, AS69RC, DODGE RAM 4500/ 5500 — 68244830AA, 68244779AA, 345658-03202, 345652-03202

Piston 345652-03202:

• Overall height - 45 mm;
• Outer diameter - 203.82 mm;
• Inner diameter - 87.80 mm;
• The inner diameter of the retainer cylinder is 165.35 mm;

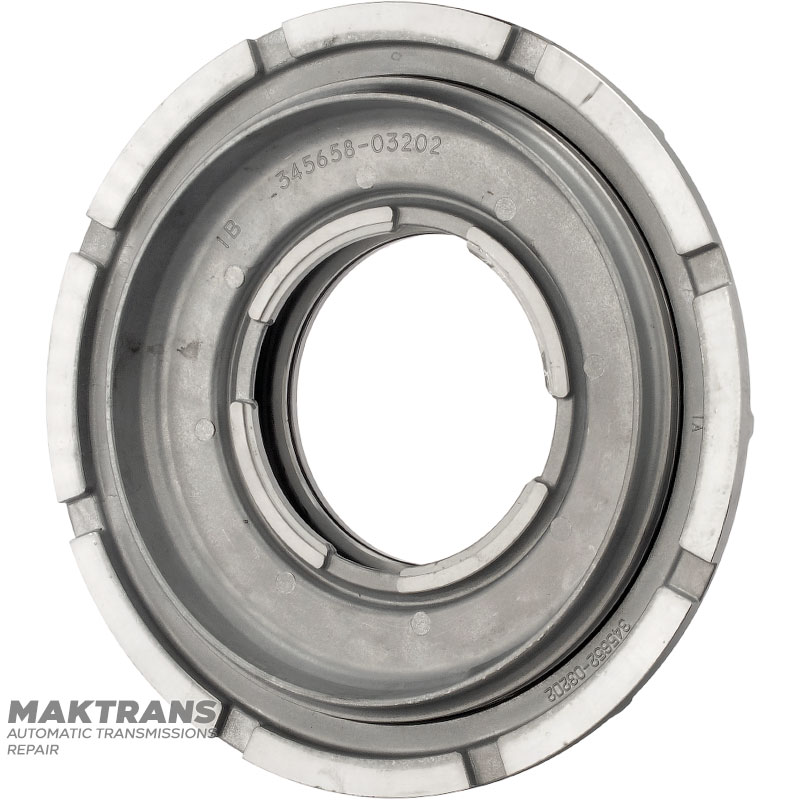

Piston 345658-03202:

• Overall height - 32.50 mm;
• Outer diameter - 165.35 mm;
• Inner diameter - 86.10 mm;

Return spring block:

• Overall height - 26.80 mm;
• Outer body diameter - 142.20 mm;
• Inner case diameter - 116 mm;
