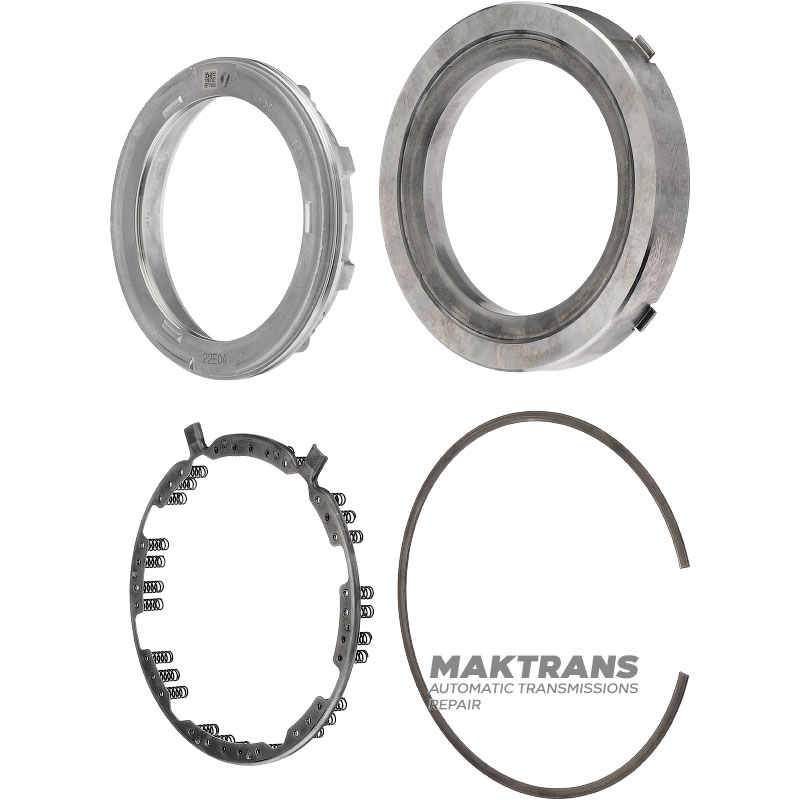

Piston with return spring No.1 Brake TOYOTA AC60E, AC60F 3560871010, 356210K010, 3569871010 — (aluminum piston height 27.65 mm, outer Ø 157.05 mm, inner Ø 118.25 mm)

Piston body, steel:

• Overall height - 22.05 mm;
• Outer diameter - 162.60 mm;
• Inner diameter - 112.50 mm;

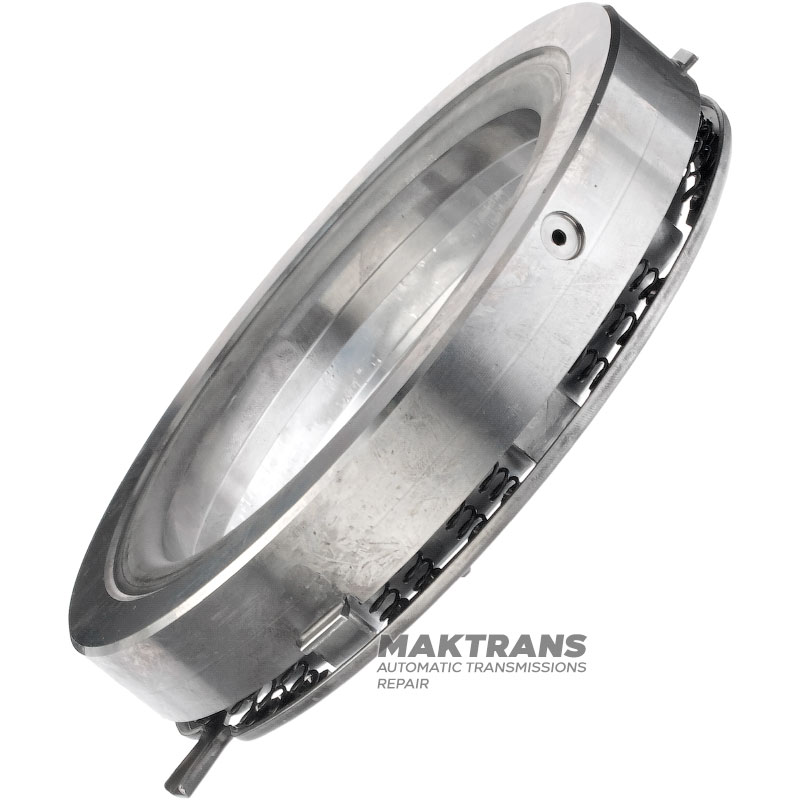

Aluminum piston:

• Overall height - 27.65 mm;
• Outer diameter - 157 mm;
• Inner diameter - 118.25 mm;

Return spring block:

• Overall height - 16.50 mm;
• Outer body diameter - 162.25 mm;

Tags: 90301T0078, 9030199115
