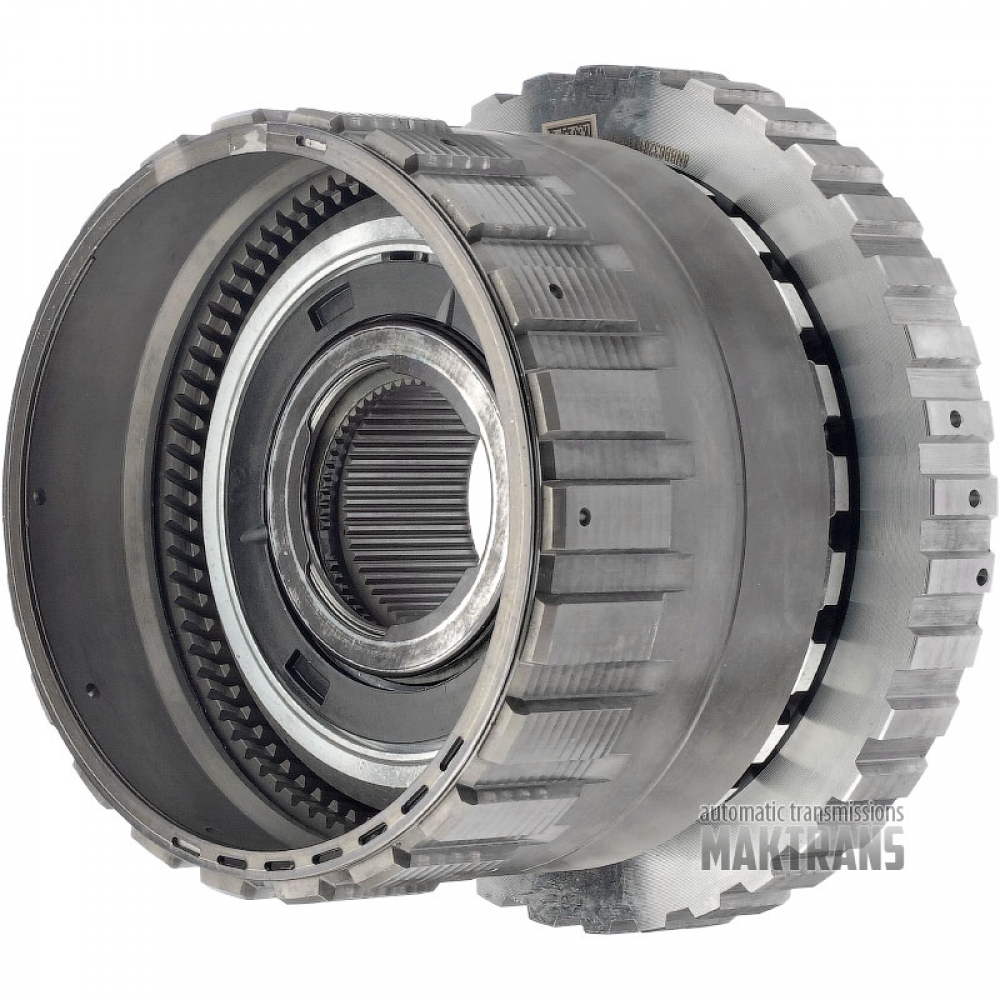

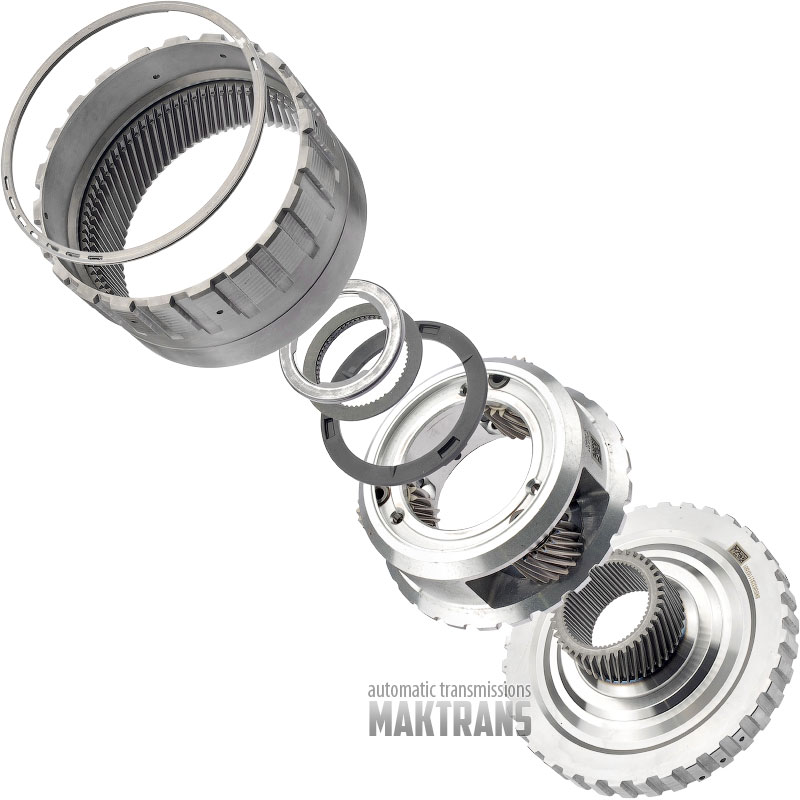

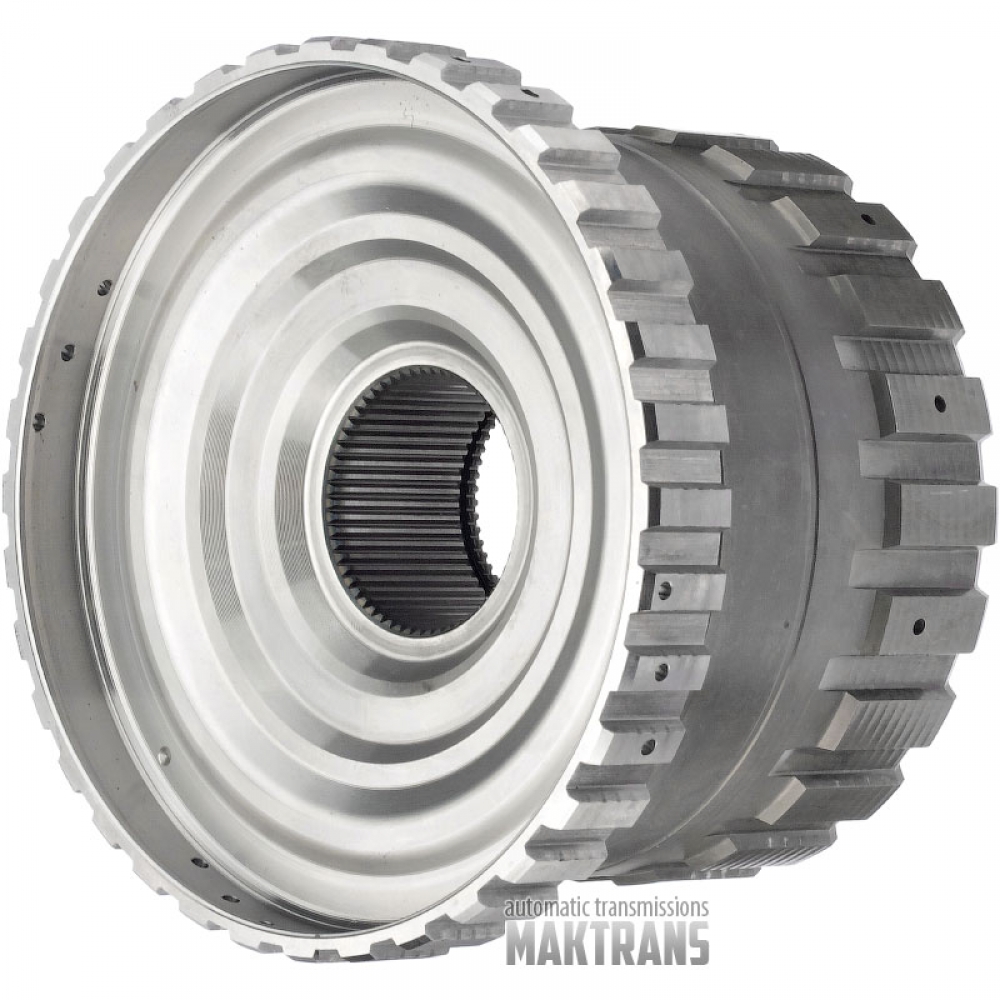

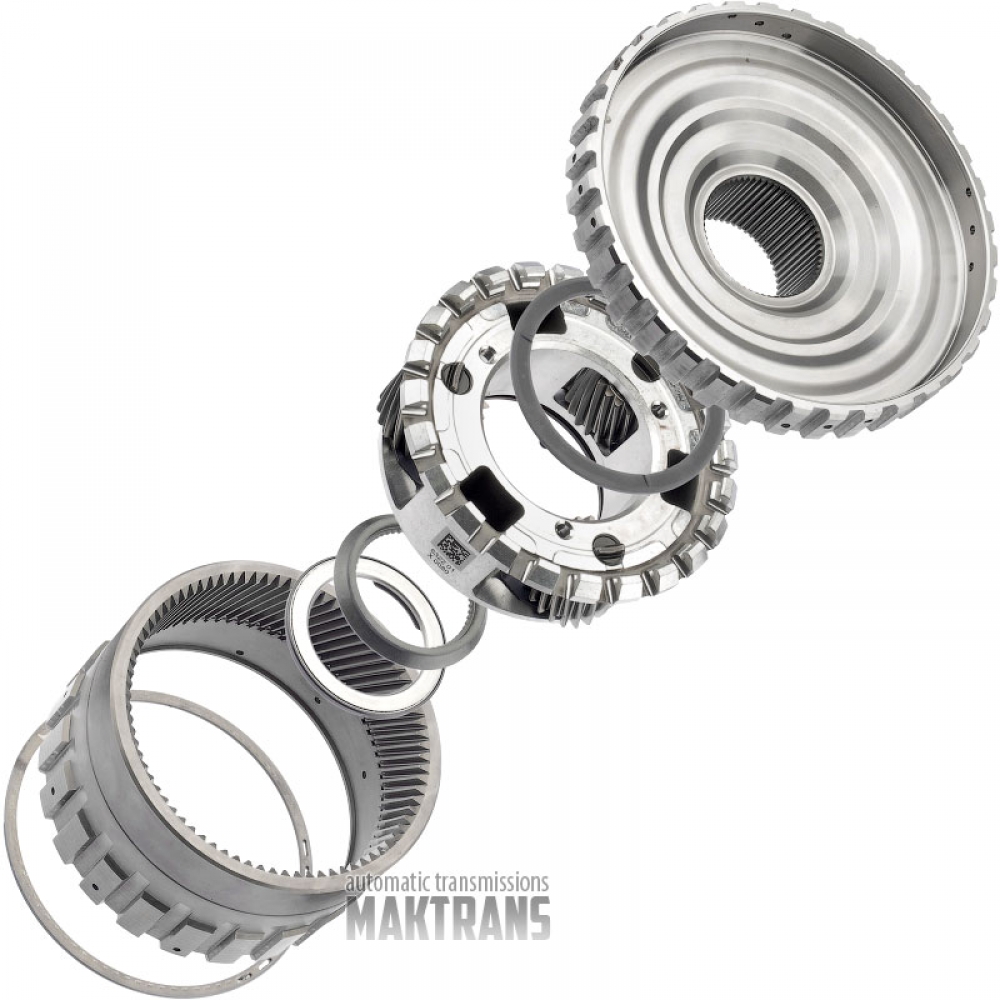

Input Planetary 8L45 / [3 pinions, sun gear 41 teeth (outer Ø 59.50 mm), ring gear 79 teeth]

Ring gear:

• Total height - 70 mm;
• Outer diameter - 128.05 mm;
• Number of teeth on the gear - 79 pcs.;
• The number of teeth on the outer part is 22 pcs.;

Planet:

• Total height - 50 mm;
• The number of teeth on the outer part is 24 pcs.;
• The outer diameter of the ring gear is 122.70 mm;
• The outer diameter of the planetary gear housing is 107.50 mm;
• Number of satellites - 3 pcs.;
• The number of teeth on the satellite is 19 pcs.;

Sun gear:

• Total height - 59 mm;
• Number of teeth on the gear - 41 pcs.;
• The outer diameter of the sun gear is 59.50 mm;
• The number of splines on the internal side 58 pcs.;
• The number of teeth on the outer side of the hub is 36 pcs.;
• The outer diameter of the hub is 152.75 mm;
