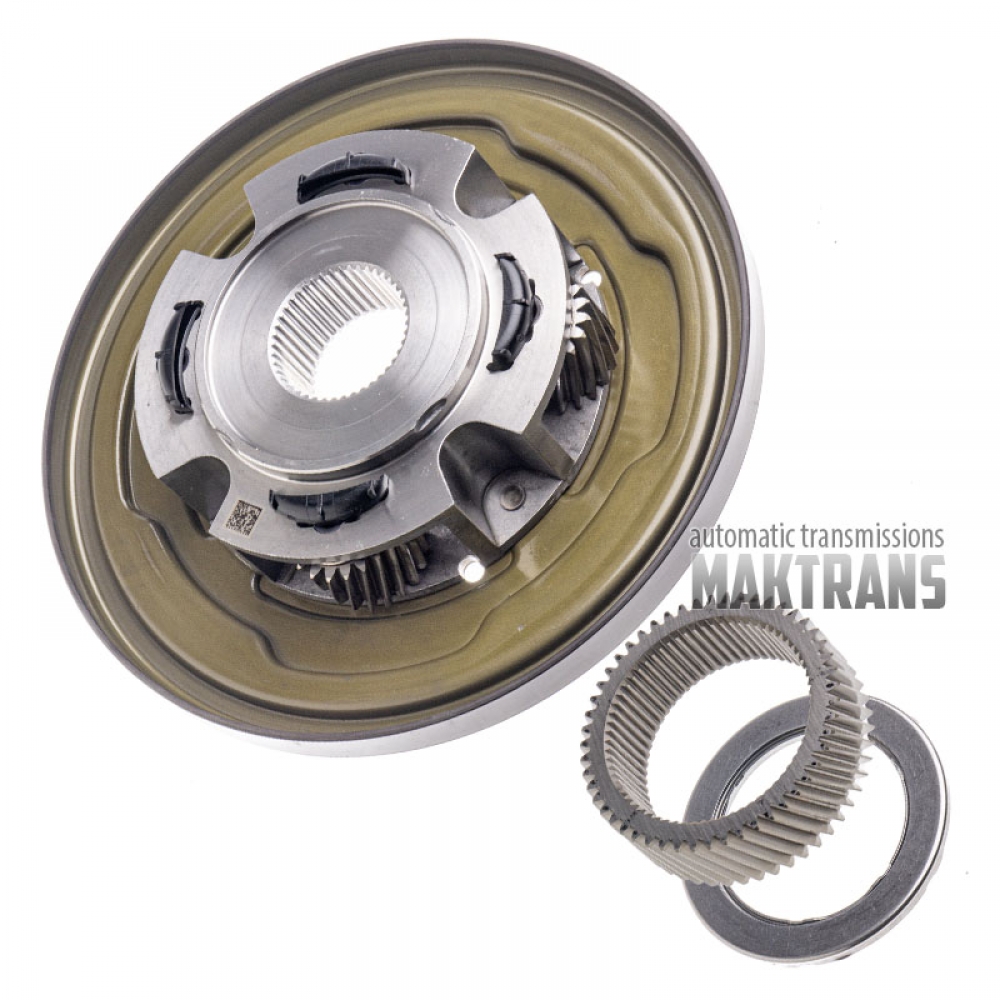

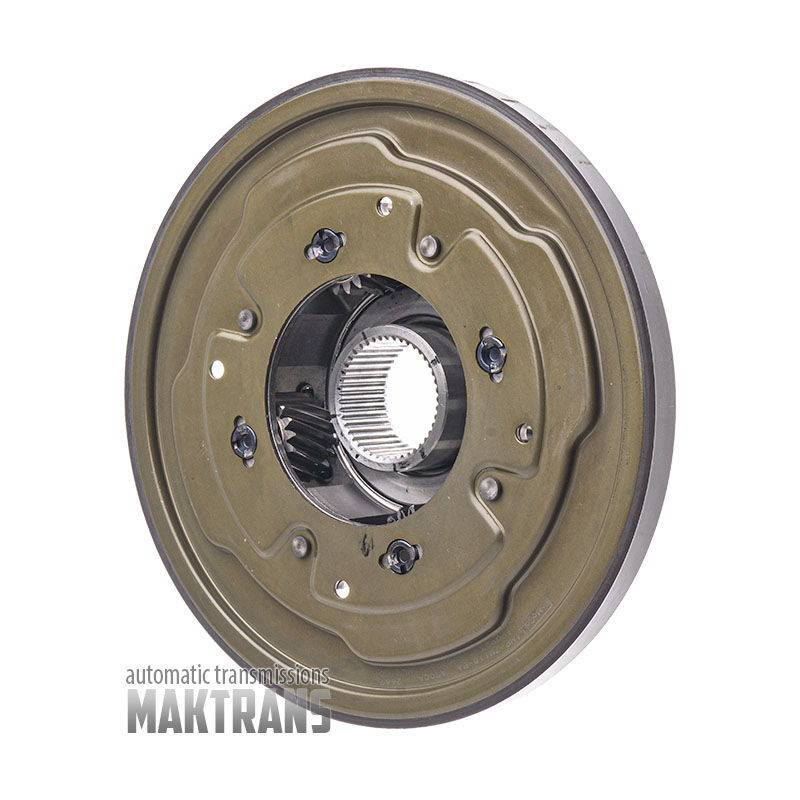

Planetary No.2 FORD 10R60 L1MP-7M118-BA [4 satellites / 19 teeth, sun gear 51 teeth]

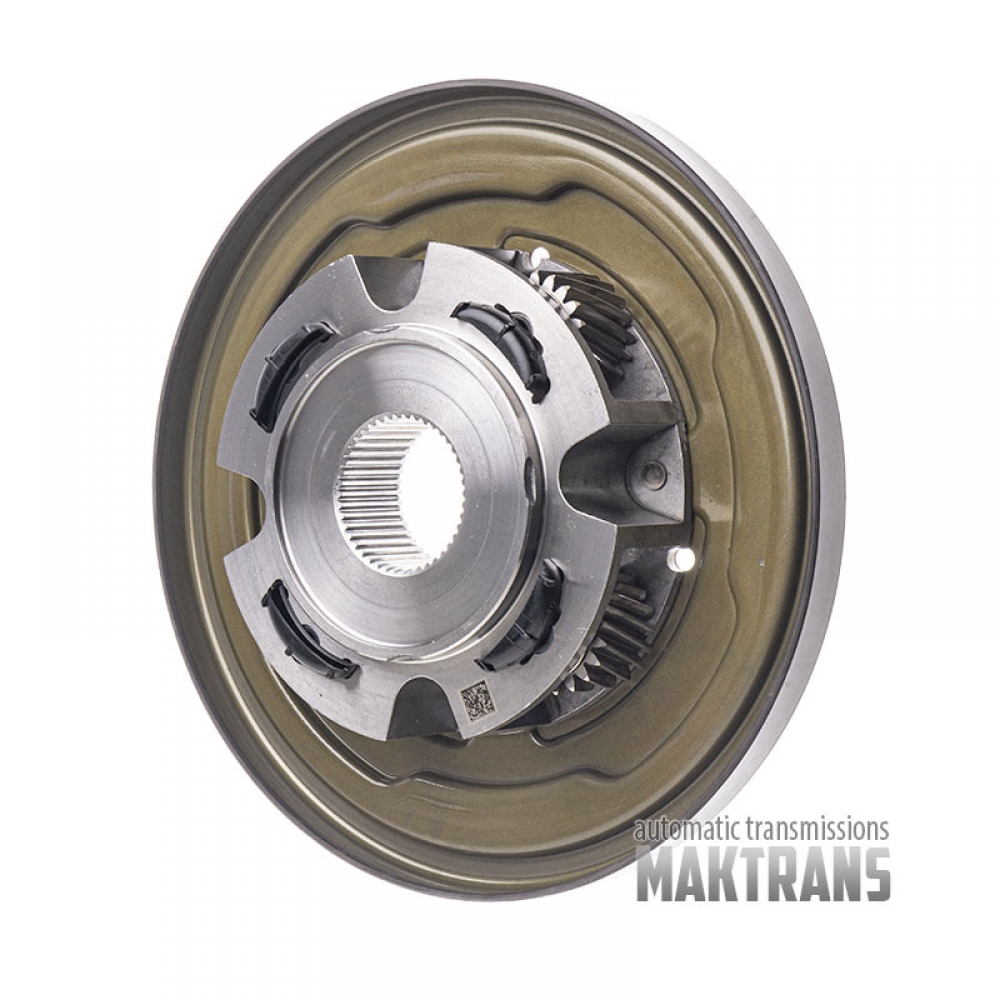

Planetary:

• Overall height - 37 mm;
• Outer diameter - 180 mm;
• Number of satellites - 4 pcs;
• The number of teeth on the satellite - 19 pieces;
• The number of splines on the internal side - 44 pieces;

Sun gear:

• Gear width - 22.25 mm;
• Number of teeth - 51 pcs;
• Outer diameter - 66.30 mm;
• Number of splines - 67 pcs;

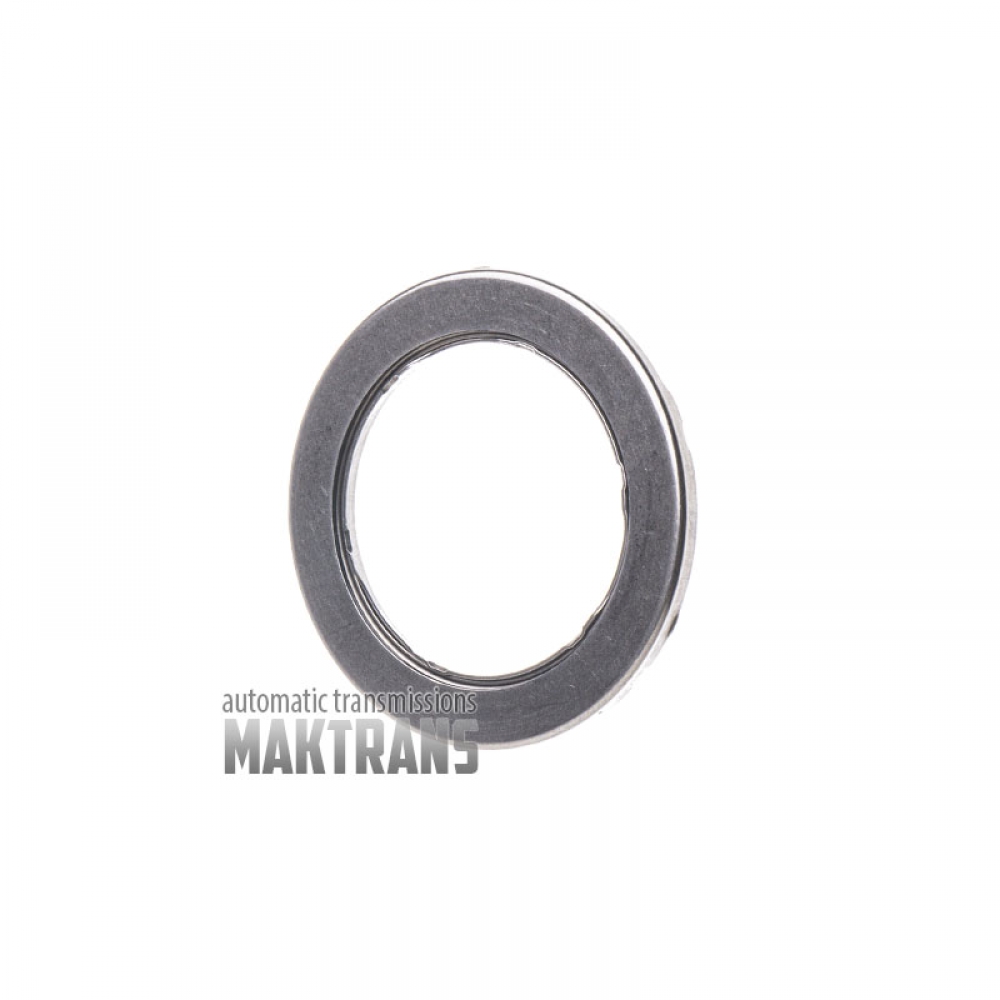

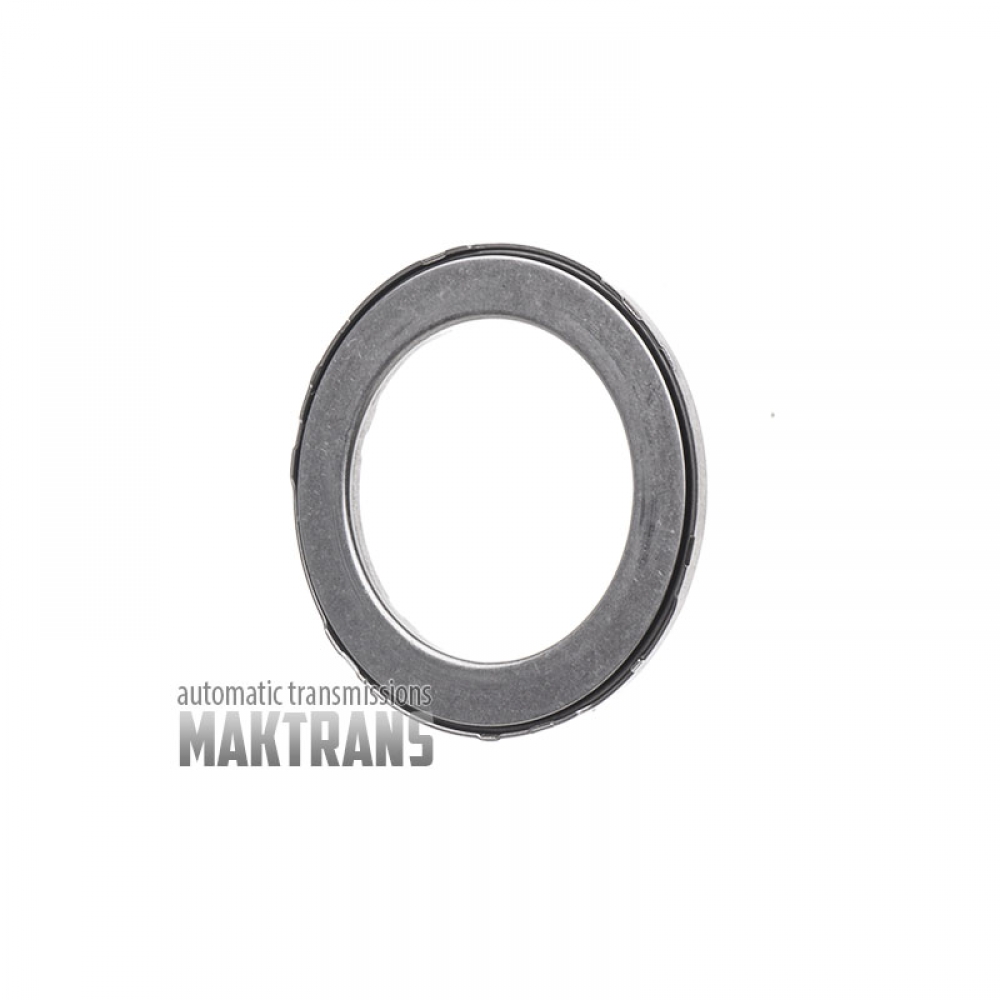

Thrust needle bearing:

• Outer diameter - 65.60 mm;
• Inner diameter - 44.85 mm;
• Thickness - 3.70 mm;
