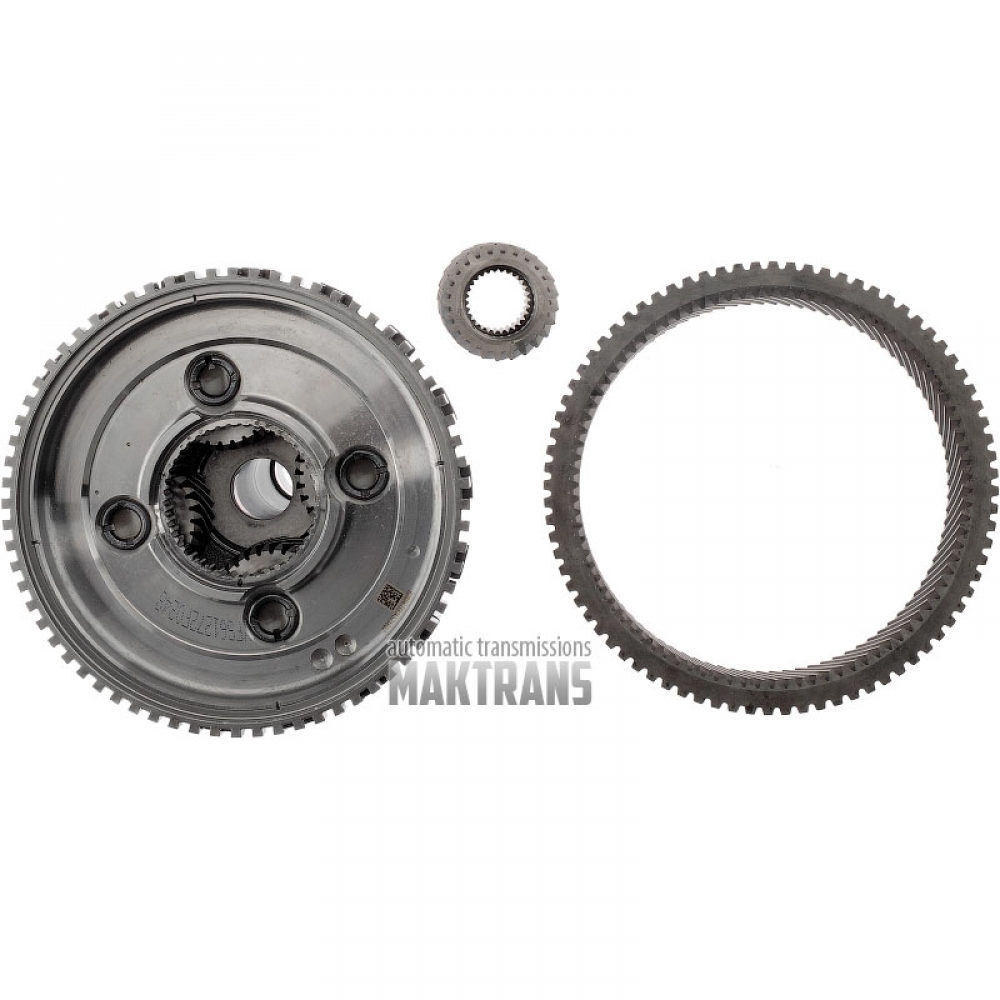

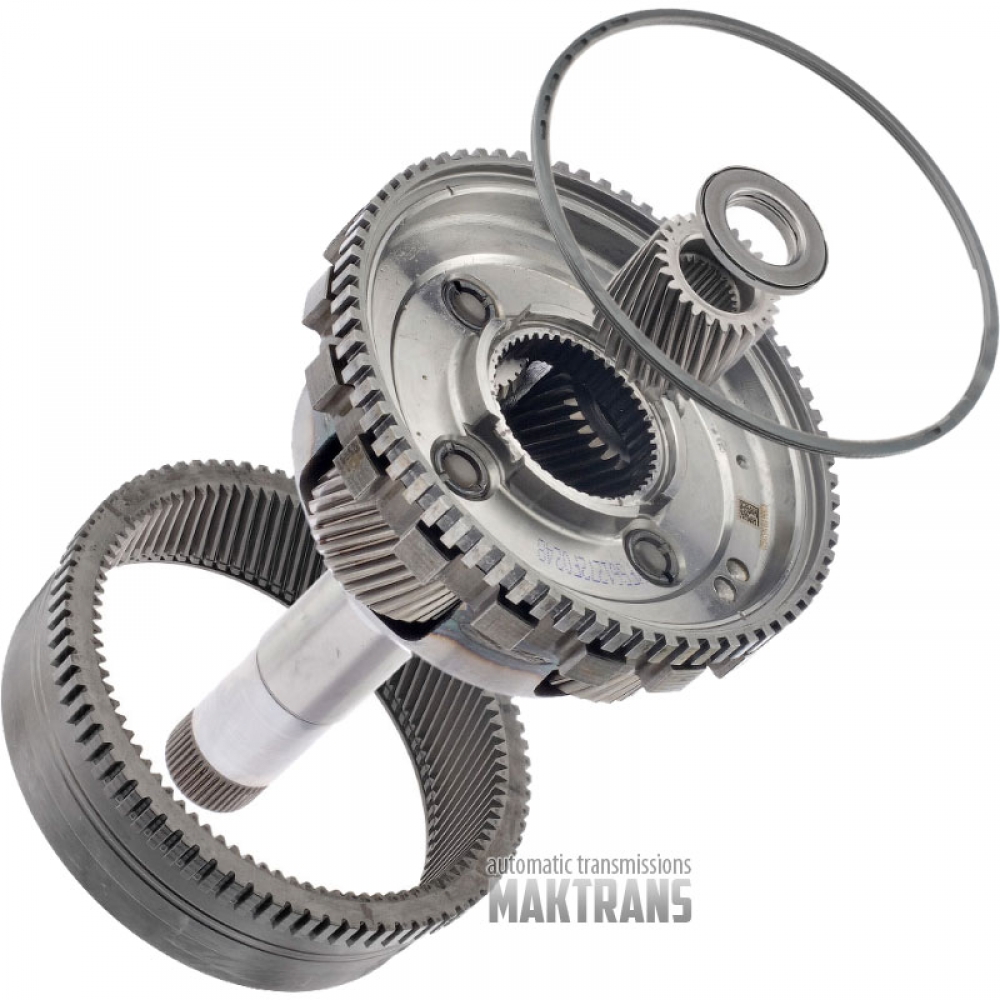

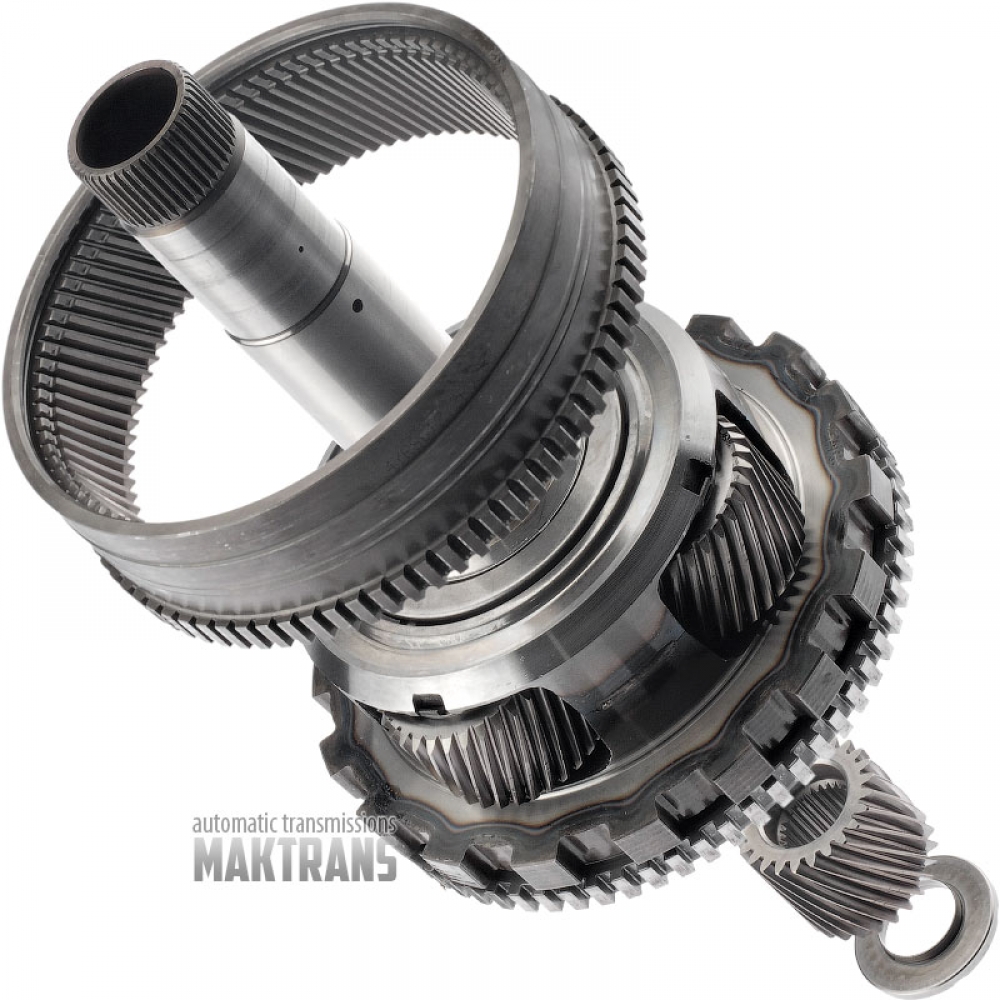

Output Planet GM 8L90 / [4 satellites (32 teeth per satellite), ring gear 89 teeth, sun gear 25 teeth (outer Ø 42 mm)]

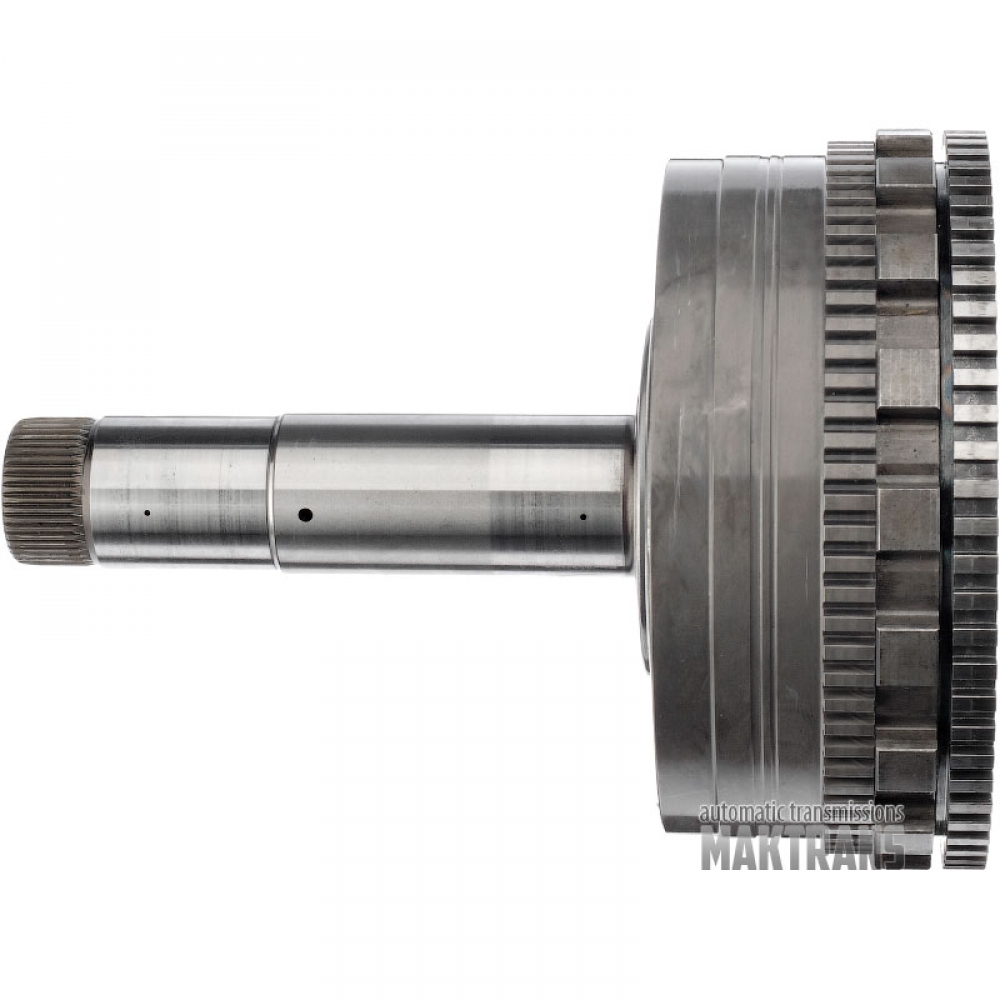

Planet:

• Overall height - 222 mm;
• Number of splines on the shaft - 45 pcs.;
• The outer diameter of the splined part of the shaft is 34.45mm;
• The outer diameters of the working parts of the shaft are 35.80 mm / 37.40 mm;
• The outer diameter of the satellite housing is 124 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellites is 32;
• The number of teeth on the parking gear is 18;
• The outer diameter of the parking gear is 165.80 mm;
• The number of splines on the rear side (for the output shaft) is 43 pcs.;

Ring gear:

• Overall height - 46 mm;
• The number of teeth on the gear is 89;
• The number of teeth on the outer ring gear is 80;
• The outer diameter of the outer ring gear is 160 mm;

Sun gear:

• Gear width - 35 mm;
• Number of teeth - 29 pcs.;
• Gear outer diameter - 42 mm;
• The number of splines on the inside is 28 pcs.;
