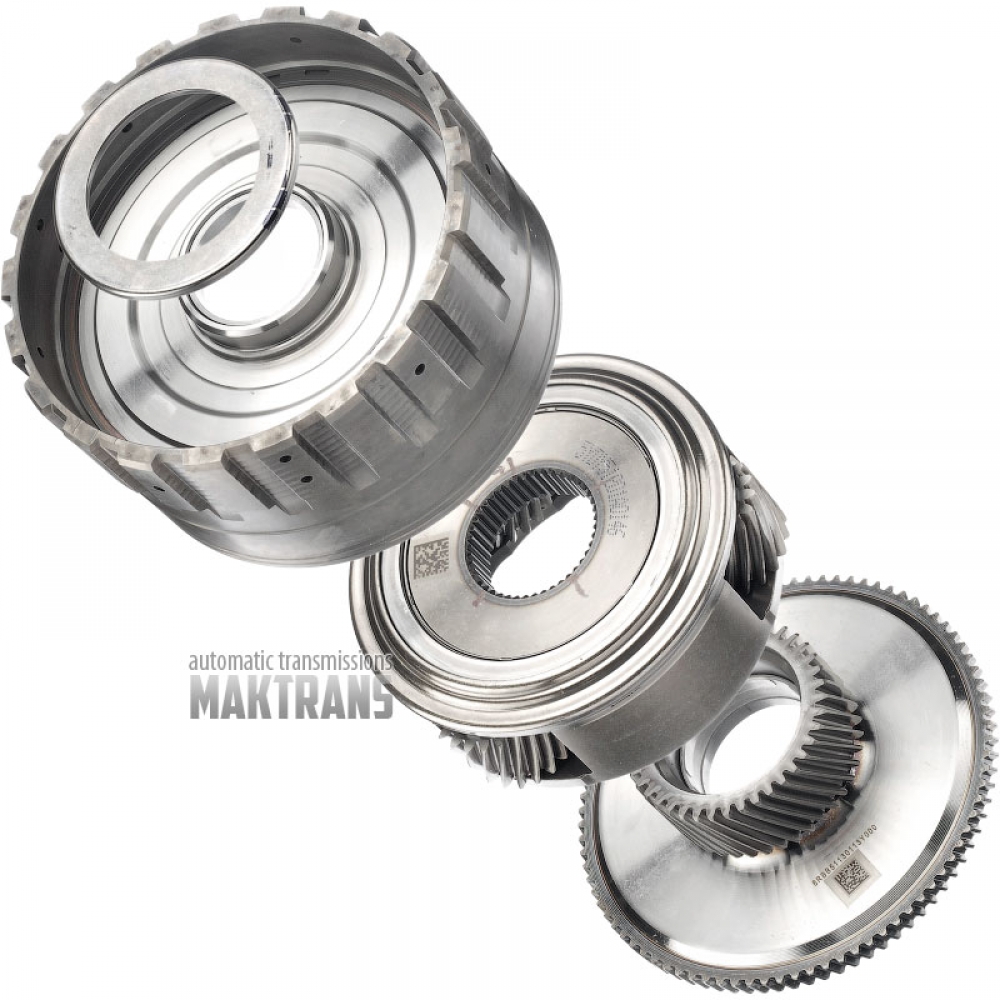

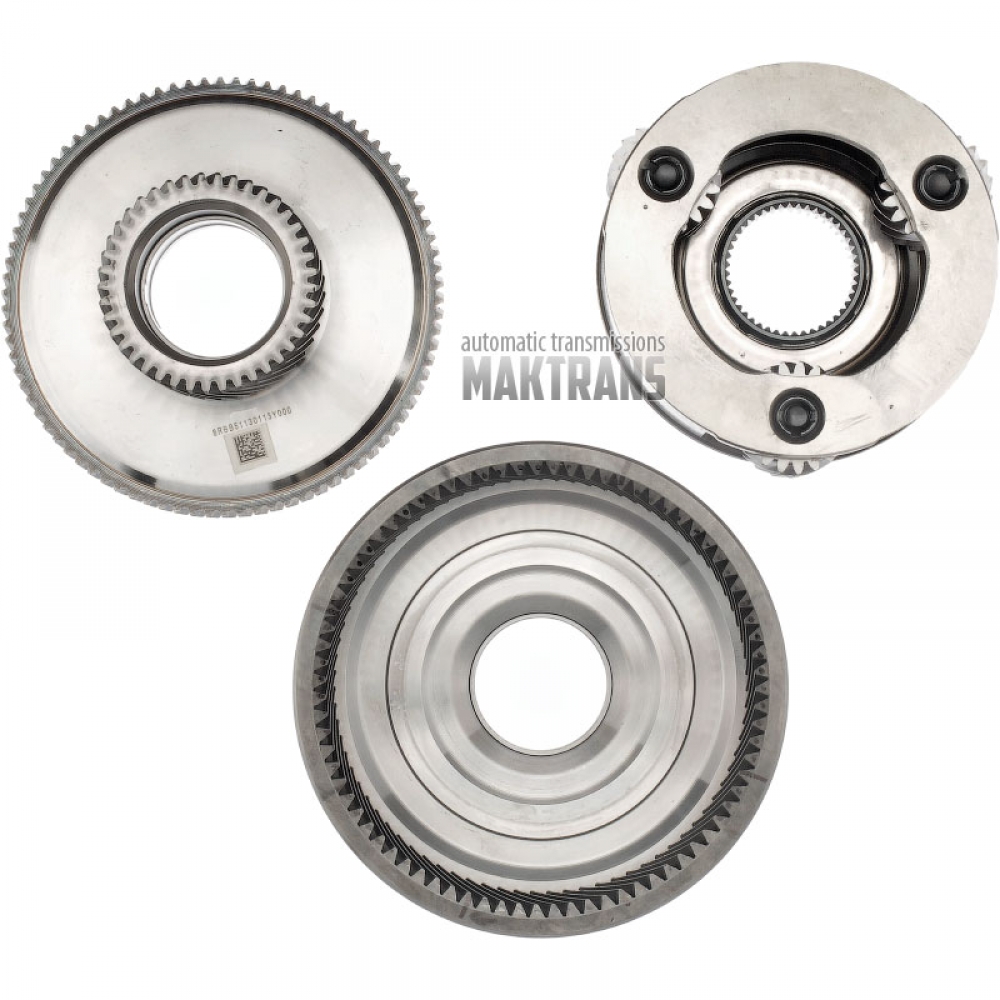

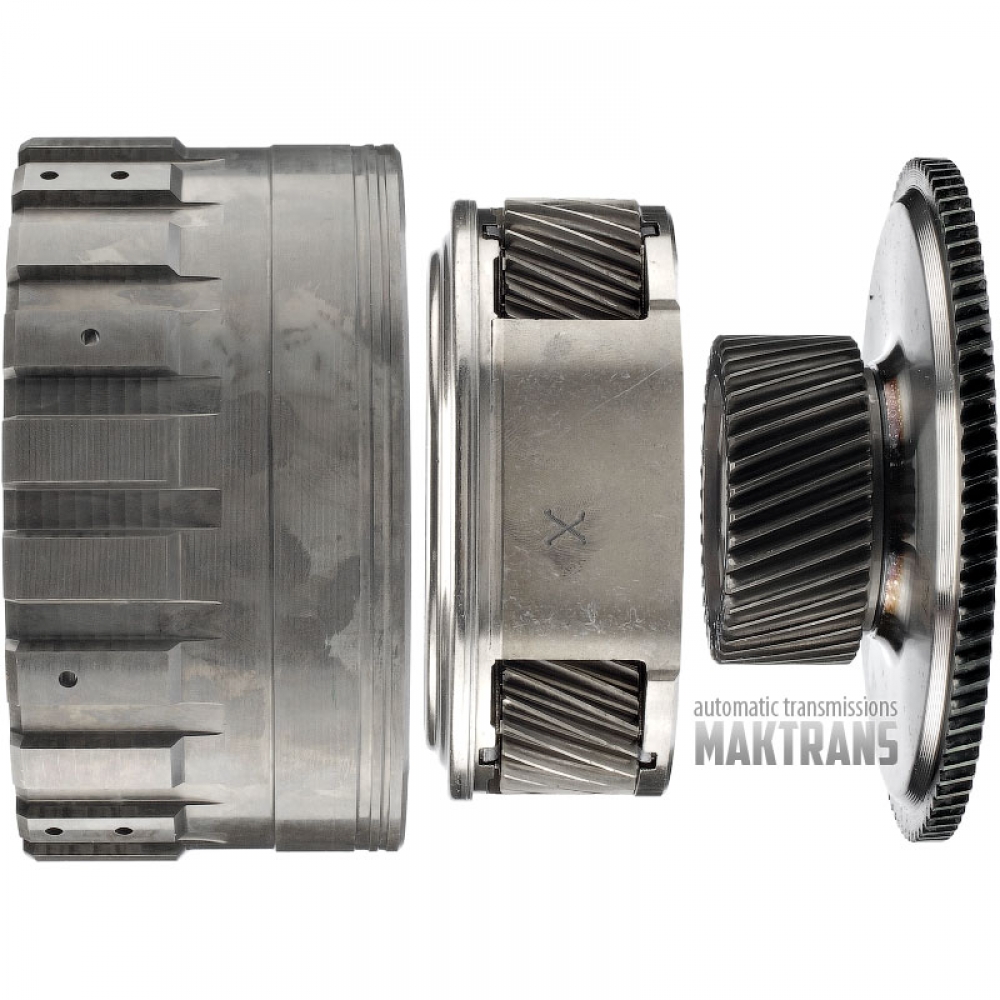

Overdrive Planet GM 8L90 / [3 satellitess (19 teeth on satellites), 41 teeth sun gear (outer Ø 57.75 mm), 79 teeth ring gear]

Thrust needle bearing:

• Outer diameter - 64.90 mm;
• Inner diameter - 46.15 mm;
• Thickness - 3.75 mm;

Ring gear:

• Overall height - 65 mm;
• Outer diameter - 123.55 mm;
• The inner diameter of the bushing is 34.40 mm;
• Number of teeth on the outer side - 21 pcs.;
• Number of teeth on the gear - 79 pcs.;

Planet:

• Overall height - 41.60 mm;
• The outer diameter of the case is 104.75 mm;
• The number of splines on the inside is 45 pcs.;
• Number of satellites - 3 pcs.;
• The number of teeth on the satellites is 19 pcs.;
• The outer diameter of the satellites is 29.75 mm;

Sun gear:

• Overall height - 40 mm;
• Number of teeth on the gear - 41 pcs.;
• The inner diameter of the bushing is 35.90 mm;
• Gear outer diameter - 57.70 mm;
• The outer diameter of the outer ring gear is 119.65 mm;
