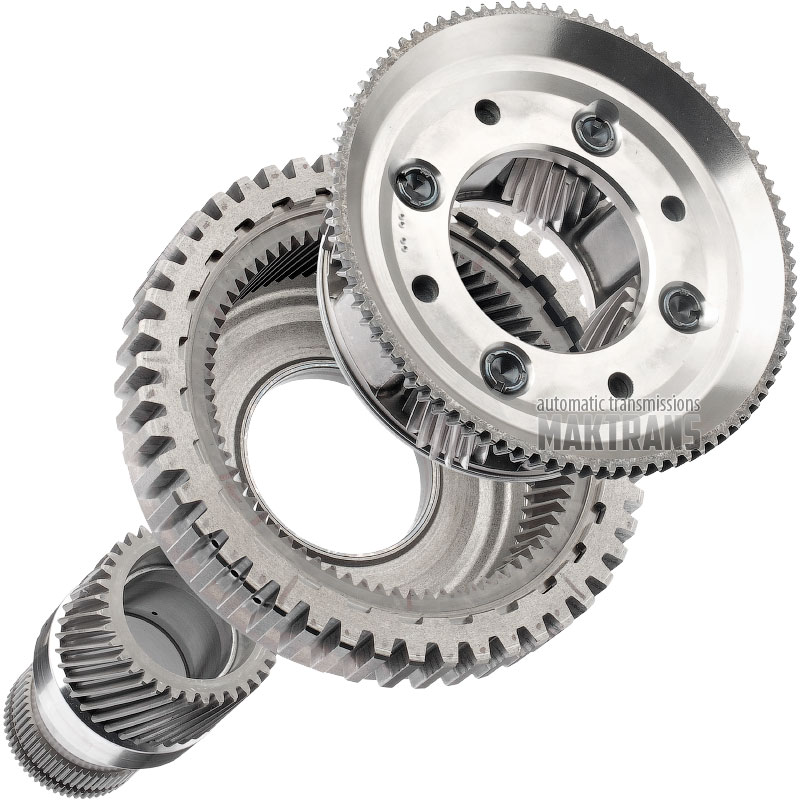

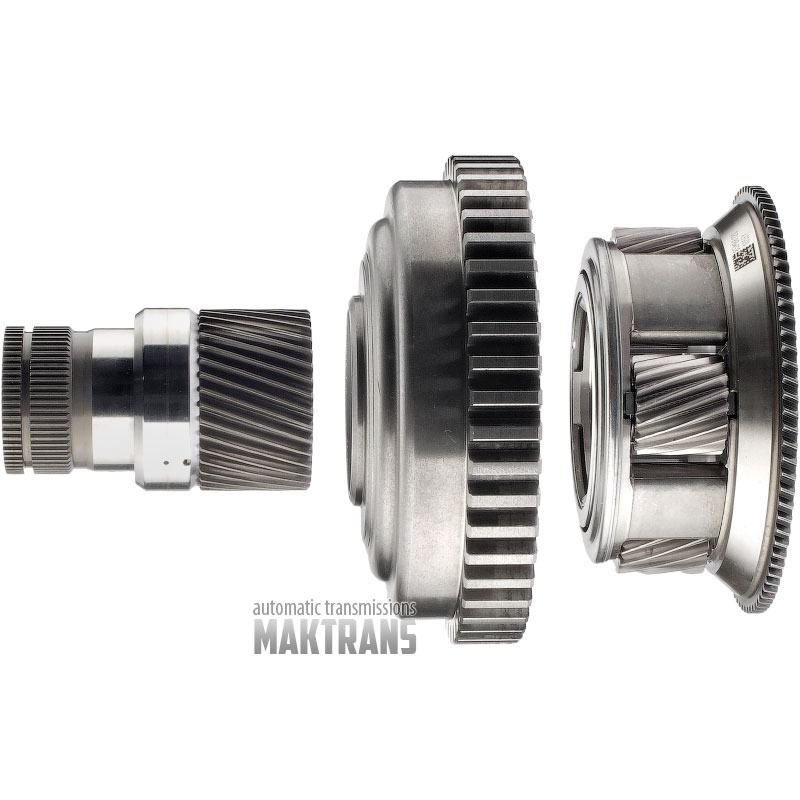

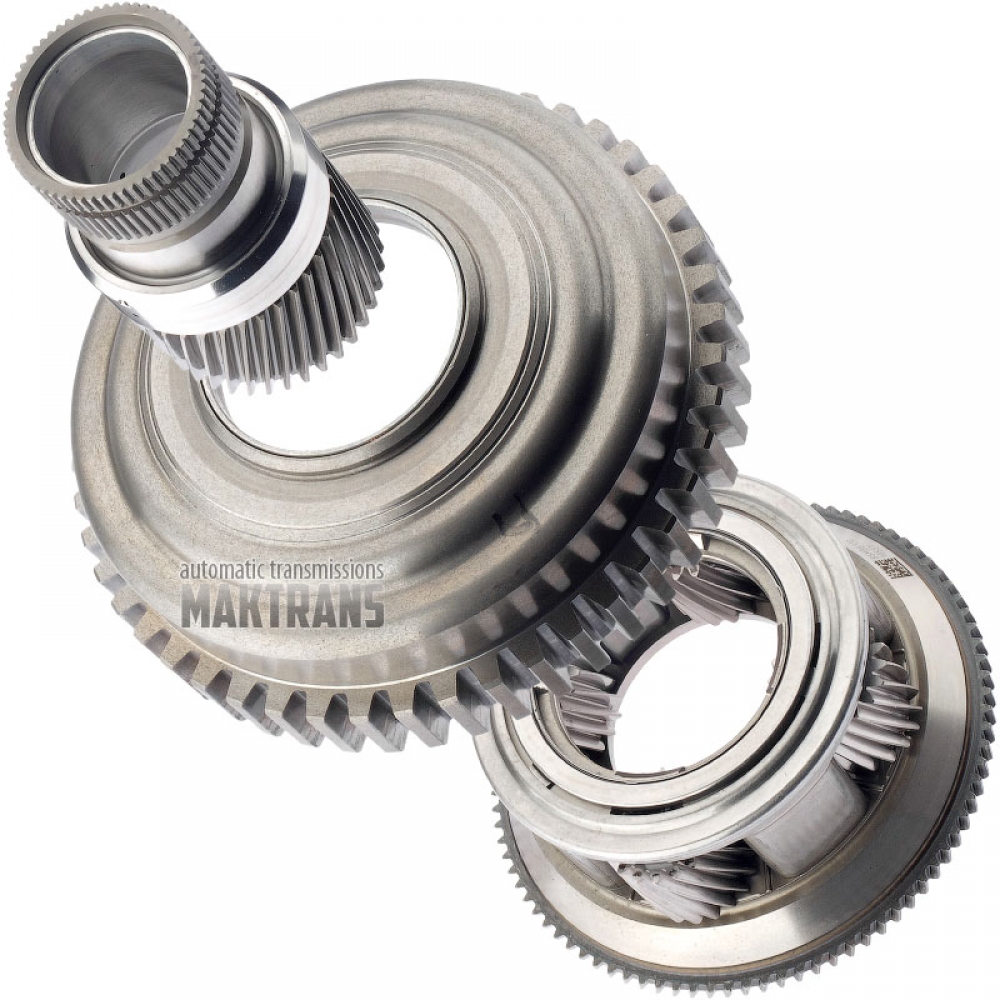

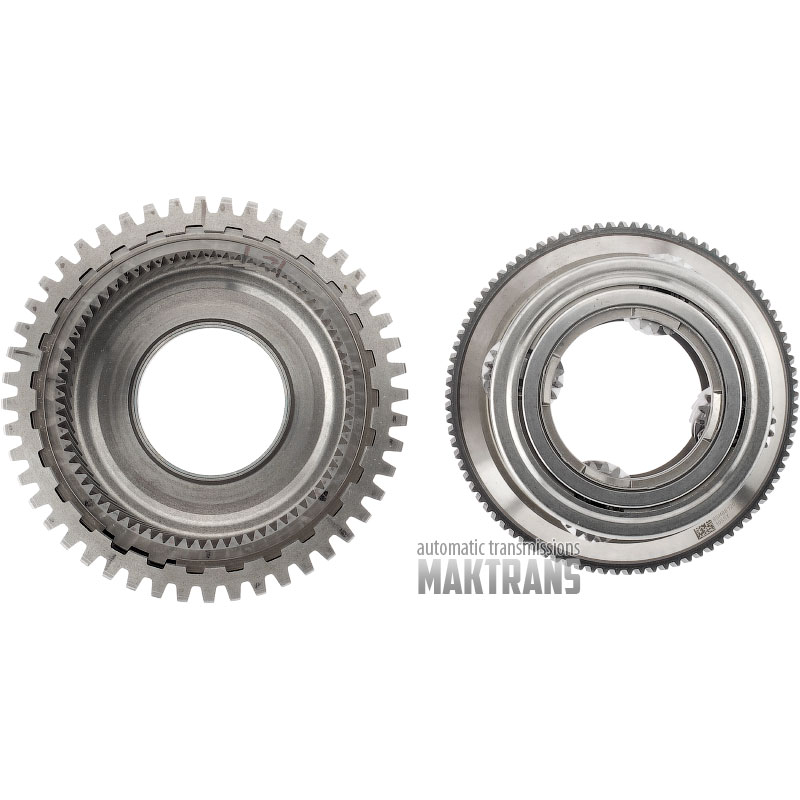

Planetary gear Reaction GM 8L90 / [4 satellites (18 teeth on satellites), sun gear 37 teeth (N.Ø 57.80 mm), ring gear 73 teeth].

Ring gear:

• Overall height - 53 mm;
• Inner diameter of the sleeve - 58.80 mm;
• Number of teeth on the outer ring gear - 48 pcs;
• Outer diameter of the outer ring gear - 157 mm;
• Number of teeth on the ring gear - 73;

Planetary gear:

• Total height - 59 mm;
• Outer diameter of satellite housing - 107.30 mm;
• Number of satellites - 4 pcs;
• Number of teeth on satellites - 18 pieces;
• Outer diameter of satellites - 31 mm;
• Outer diameter of the outer ring gear - 140.50 mm;

Sun gear:

• Total height - 96 mm;
• Outer diameter of the working part - 58.65 mm;
• Inner diameter of bushing - 37.15 mm (ring gear side) / 35.85 mm (spline side);
• Number of splines - 62 pcs;
• Outer diameter of the spline part - 47.10 mm;
• Number of teeth on the pinion - 37 pcs;
• Outer diameter of the sun gear - 57.80 mm;

Tags: 24278244 24259385 24259381 24273301 24291065
