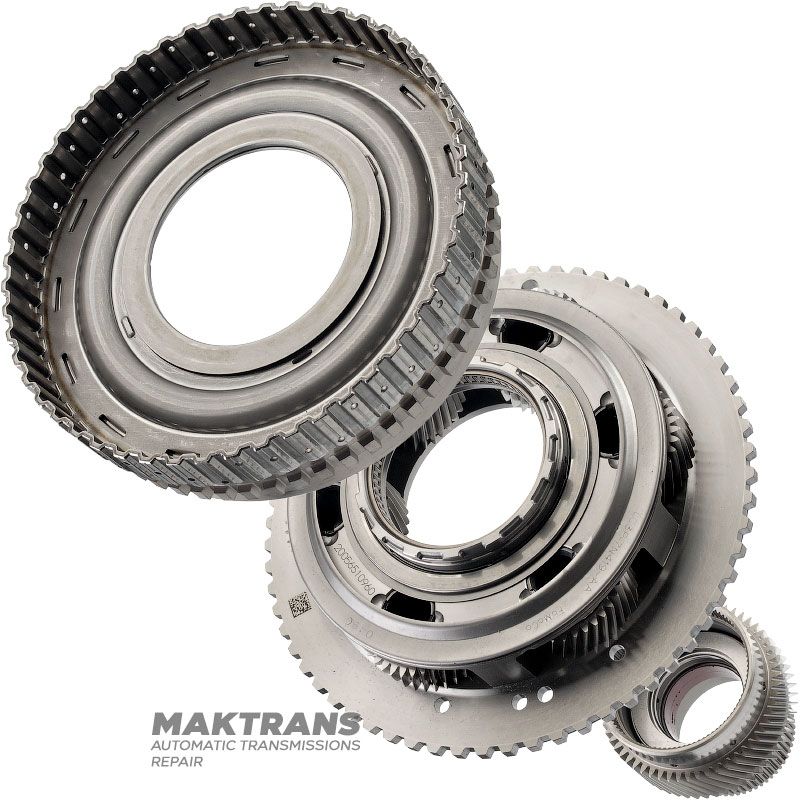

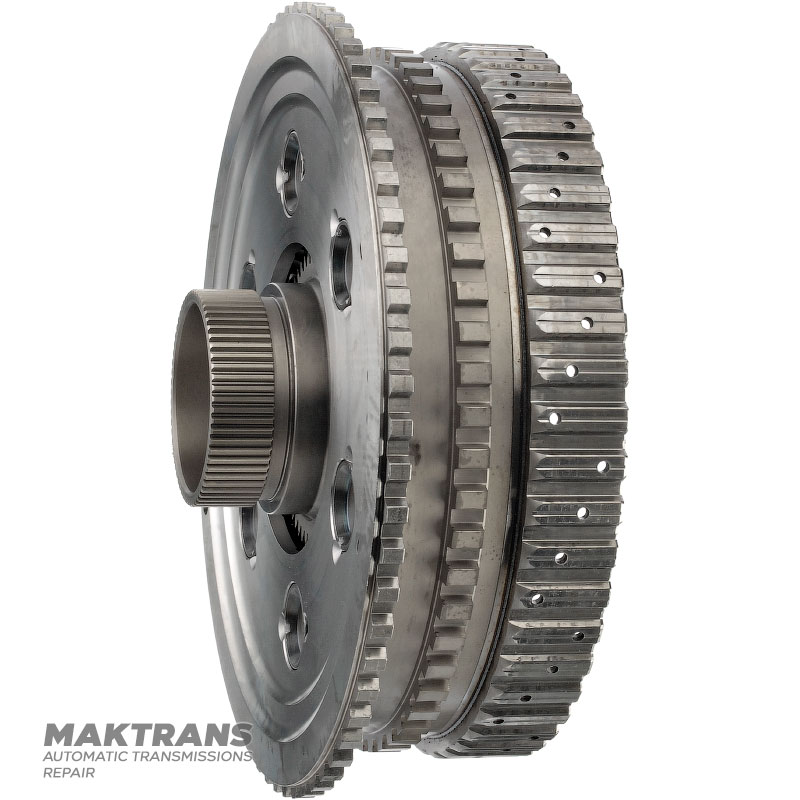

Planetary gear #1 (6 satellites, 32 teeth) FORD 10R140 — LC3P-7N419-AA, LC3P-7H500-AE

Planetary gear:

• Overall height - 58 mm;
• The inner diameter of the needle bearing is 78.10 mm;
• Number of satellites - 6 pcs.;
• Number of teeth on satellites - 32 pcs.;
• The outer diameter of the satellite housing is 176 mm;
• Number of teeth on the gear ring - 64 pcs.;
• The outer diameter of the outer gear ring is 233.30 mm;

Sun gear:

• Overall height - 84 mm;
• Number of teeth - 58 pcs.;
• Gear outer diameter - 89.50 mm;
• Gear width - 26.45 mm;
• The inner diameter of the sleeve is 42 mm;
• Number of splines on the outer side - 63 pcs.;
• Number of splines on the inner side - 94 pcs.;
• The outer diameter of the outer working part is 77.95 mm;

Ring gear:

• Overall height - 62 mm;
• Inner diameter - 95.65 mm;
• Number of teeth of the ring gear - 122 pcs.;
• Hub outer diameter - 213.15 mm;

Bearings:

No.1 (bearing:

• Thickness - 3.45 mm;
• Outer diameter - 120.70 mm / 113.25 mm;
• Inner diameter - 94.25 mm;
• Number of bearings in the set - 2 pcs.;

No.2 (sun gear bearing):

• Height - 7.35 mm;
• Outer diameter - 67.40 mm;
• Inner diameter - 44.20 mm;
• Quantity in the set - 1 pc.;
