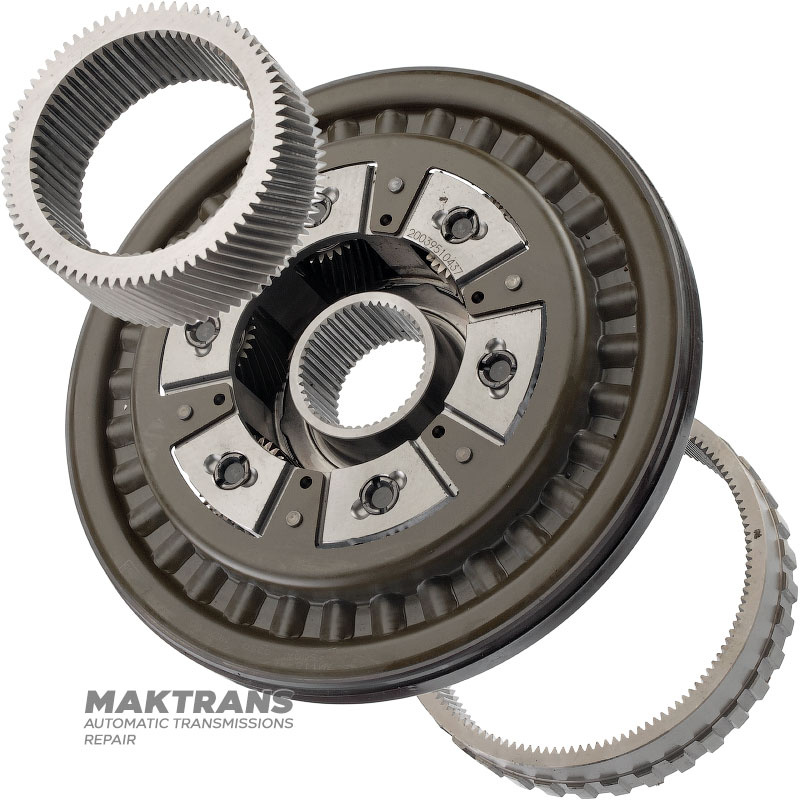

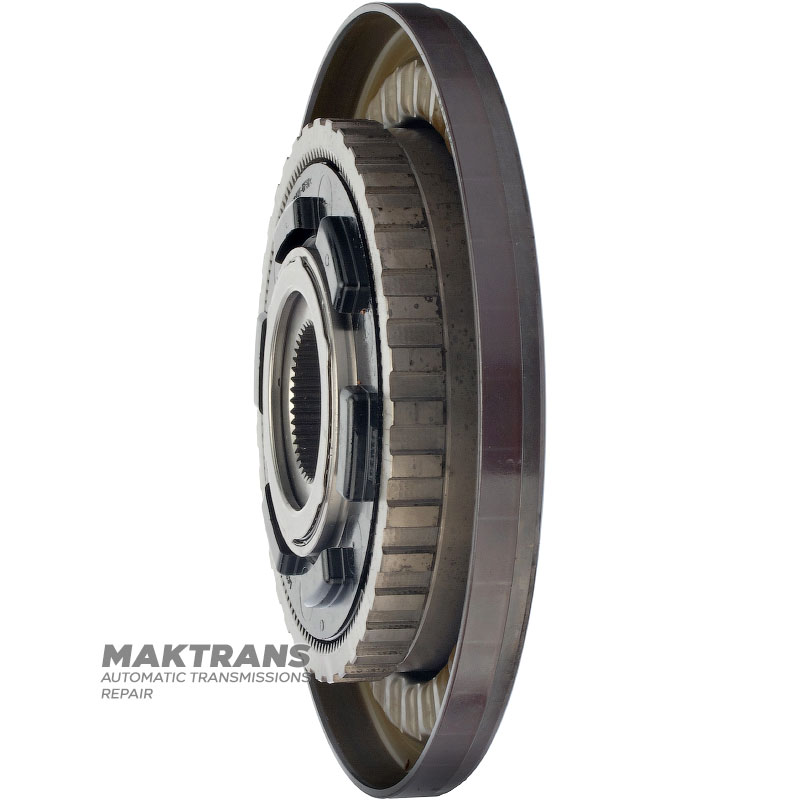

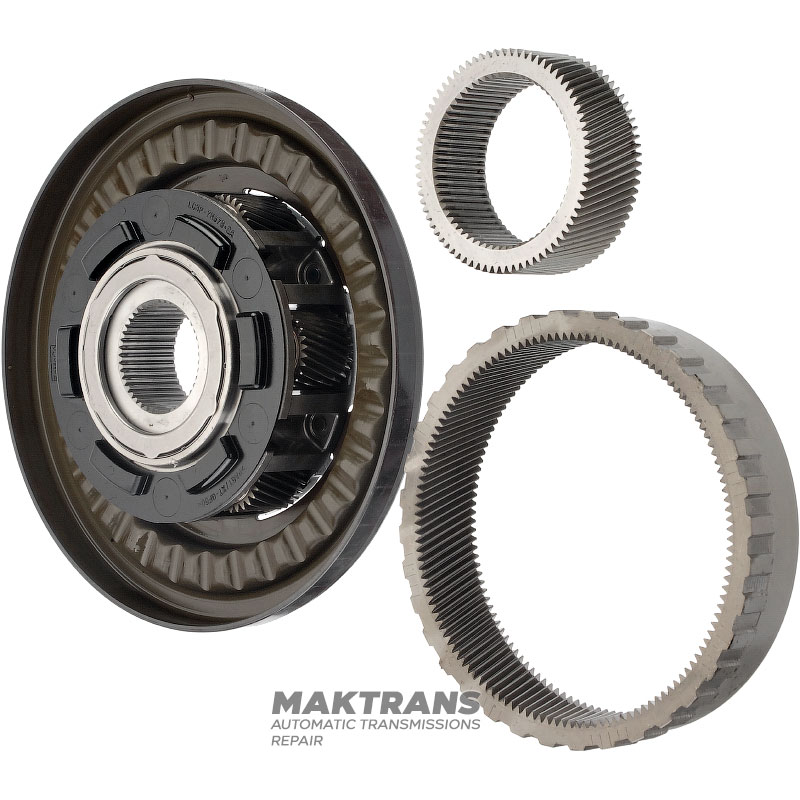

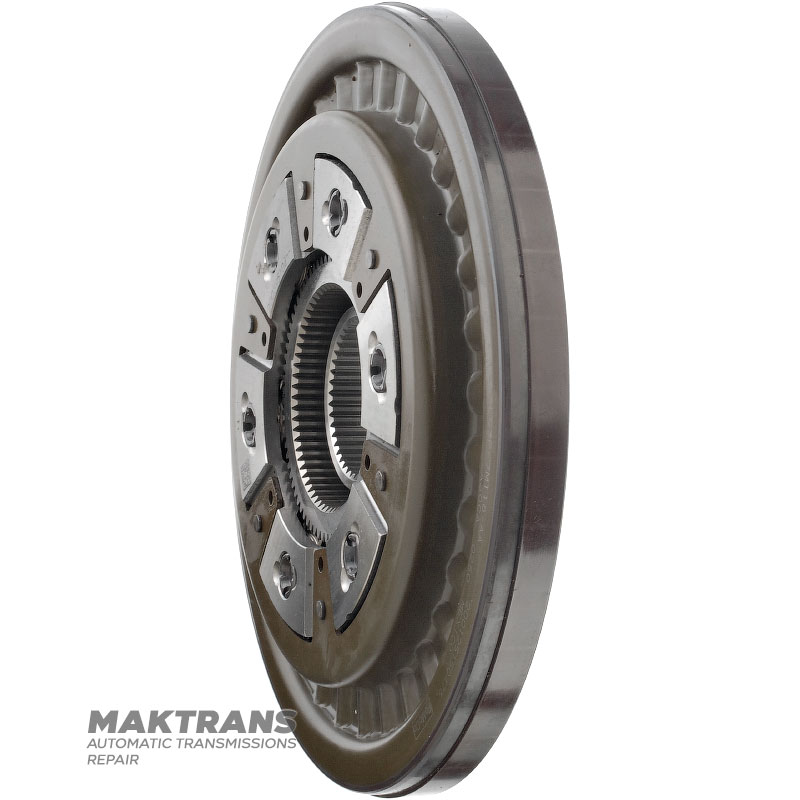

Planetary gear #2 (6 satellites, 27 teeth) FORD 10R140 — LC3P-7M118-AA, LC3P-7H578-BA

Planetary gear:

• Total height - 50 mm;
• Number of splines on the inner side - 44 pcs.;
• Outer diameter (by magnetic ring) - 225.50 mm;
• Number of satellites - 6 pcs.;
• Number of teeth on satellites - 27 pcs.;

Ring gear:

• Overall height - 34 mm;
• Number of teeth on the ring gear - 129 mm;
• Number of teeth on the outer side - 36 pcs.;
• Outside diameter of the gear ring - 159.25 mm;

Sun gear:

• Width - 32 mm;
• Number of teeth - 75 mm;
• Gear outer diameter - 82.80 mm;
• Number of splines on the inner side - 63 pcs.;
