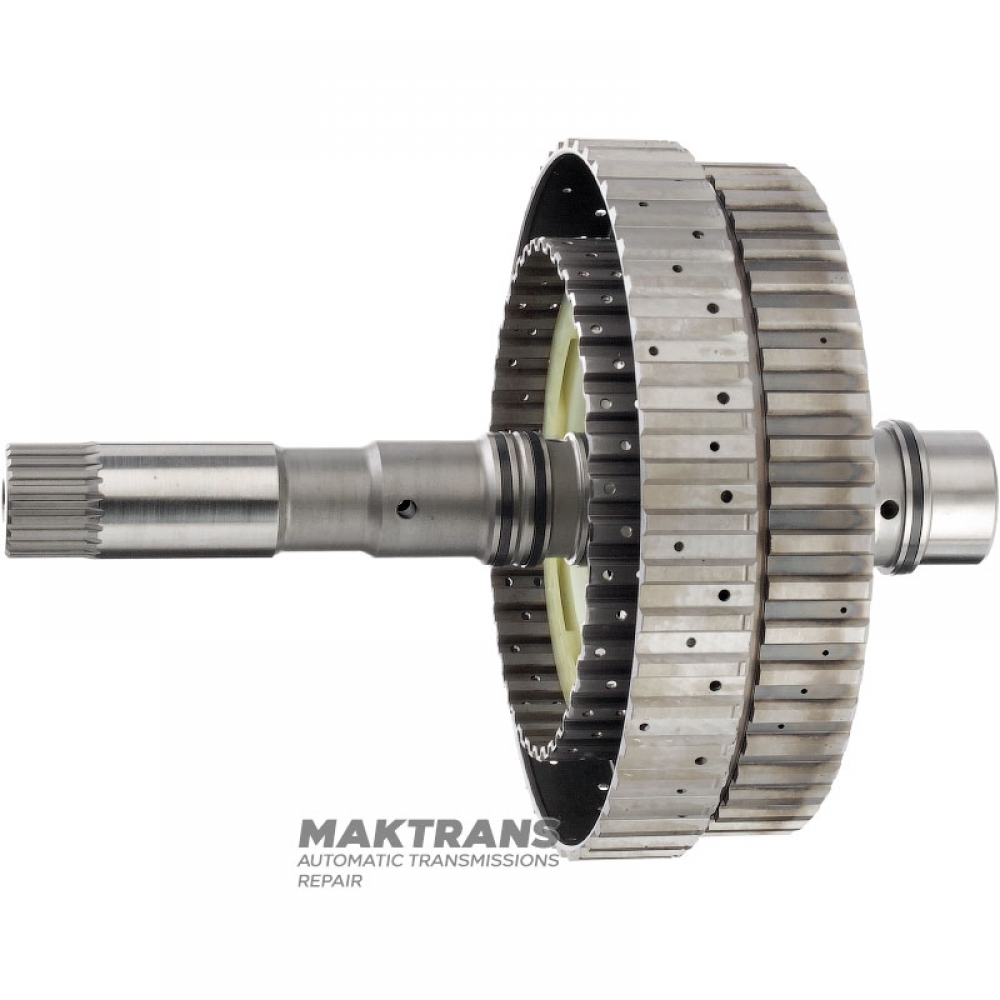

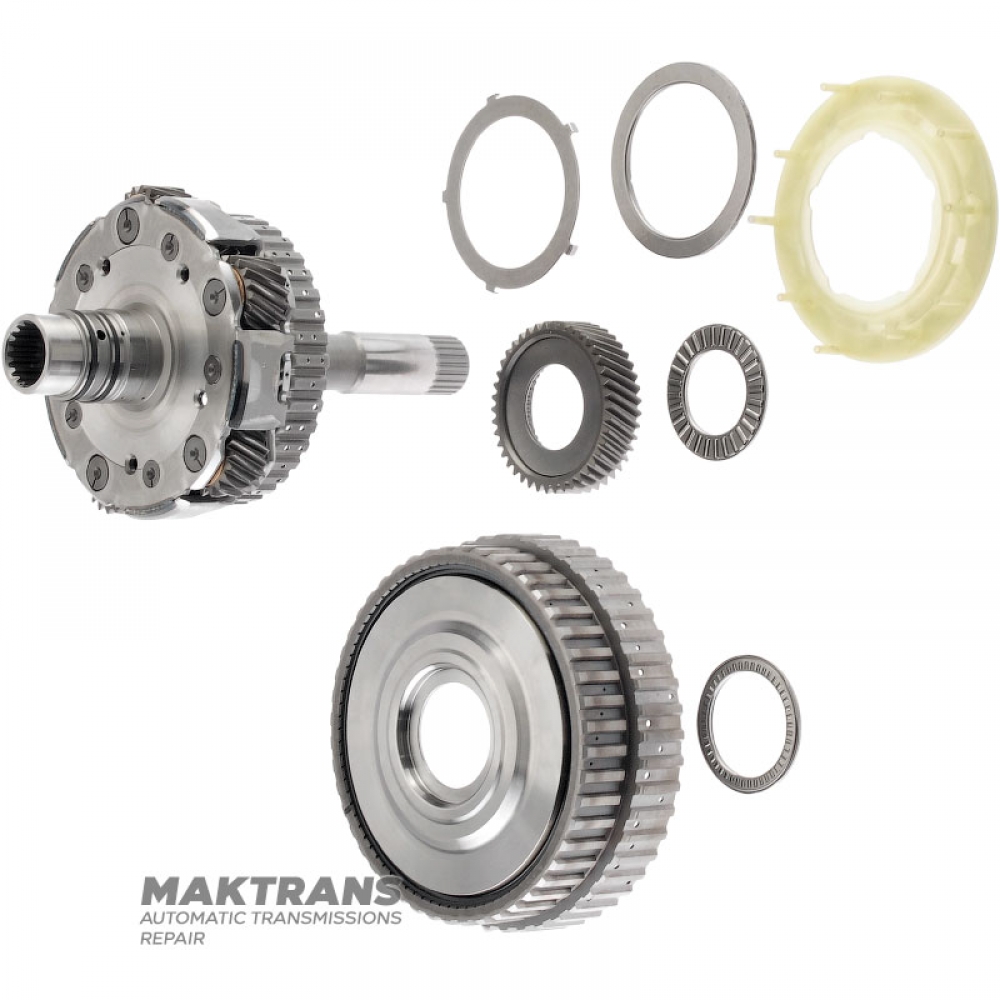

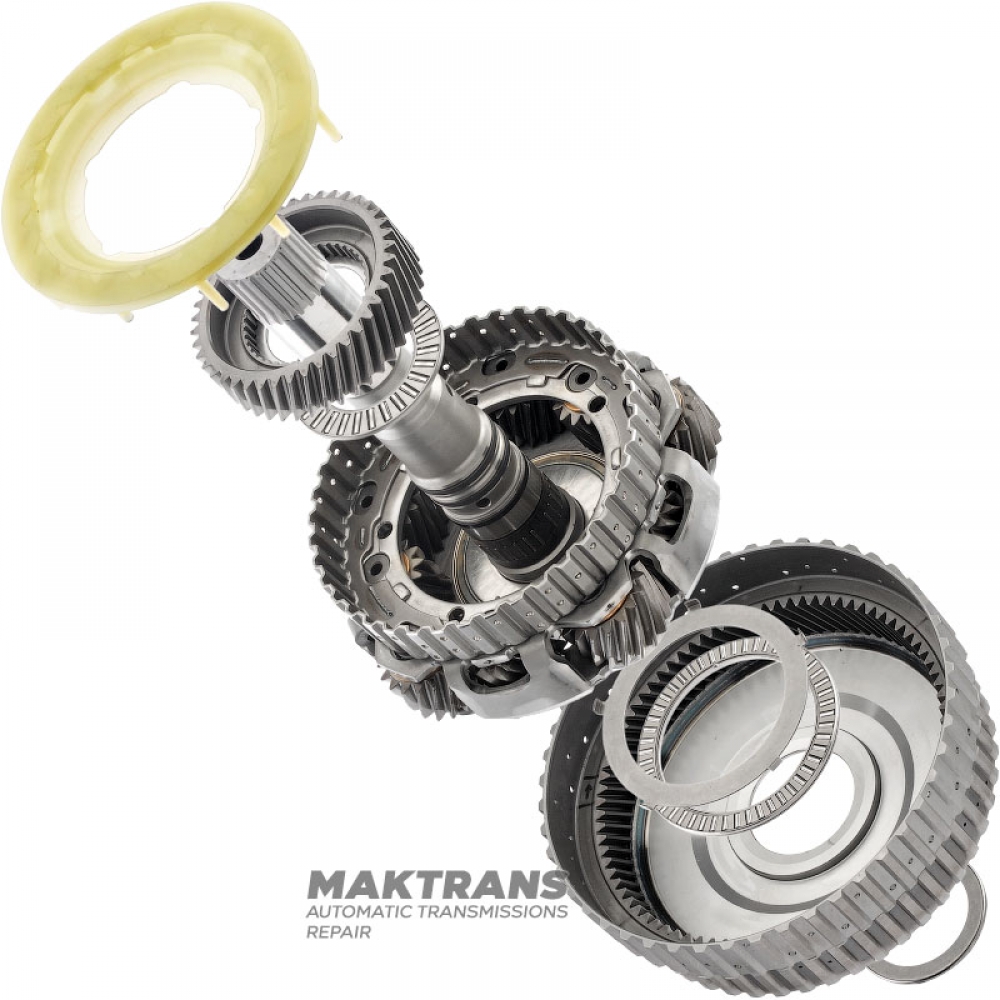

Planetary gear AISIN WARNER AWF8G45 - 23 splines (ext.Ø 24.30 mm), total shaft length 214 mm

• Total shaft length - 214 mm;

Front side of the shaft:

• Shaft length from base - 156 mm;
• Number of splines on the shaft - 23 pcs.;
• The outer diameter of the splined part of the shaft is 24.30 mm;
• The outer diameter of the working part of the shaft is 25.15 mm;
• Number of Teflon rings on the shaft - 3 pcs.;
• Outer diameter over Teflon rings - 28.85 mm;

Back side of the shaft:

• Length - 53 mm;
• Number of splines on the inner side of the shaft - 18 pcs.;
• Number of Teflon rings - 2 pcs.;
• Outer diameter by Teflon rings - 34 pcs.;

Outer diameter of working parts of the shaft:

• 30.10 mm;
• 35.75 mm;

Planetary gear:

• The height of the C4 Clutch hub is 18 mm;
• C4 Clutch Hub Outer Diameter - 112.60mm;
• Ring gear satellites - 18 pcs.;
• Sun gear satellites - 15 pcs.;

Sun gear:

• Height - 18 mm;
• Number of teeth - 42 pcs.;
• Gear outer diameter - 67.30 mm;
• Number of splines on the inner side - 40 pcs.;

Ring gear:

• Overall height - 53.50 mm;
• Number of teeth - 82 pcs.;
• The outer diameter of the C3 Clutch hub is 155.30 mm;
• C2 Clutch Hub Outer Diameter - 146.05mm;
