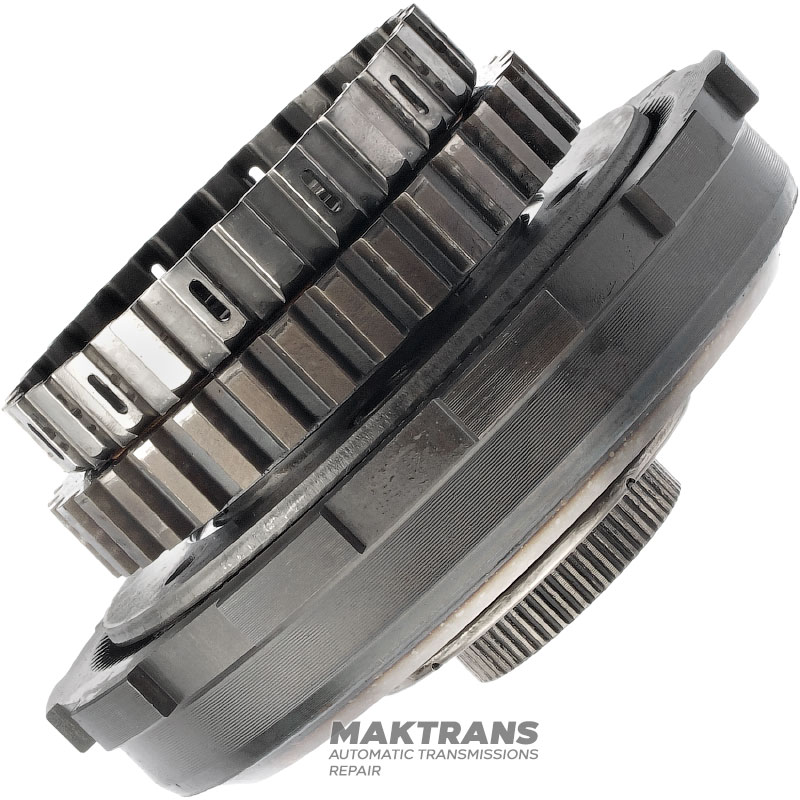

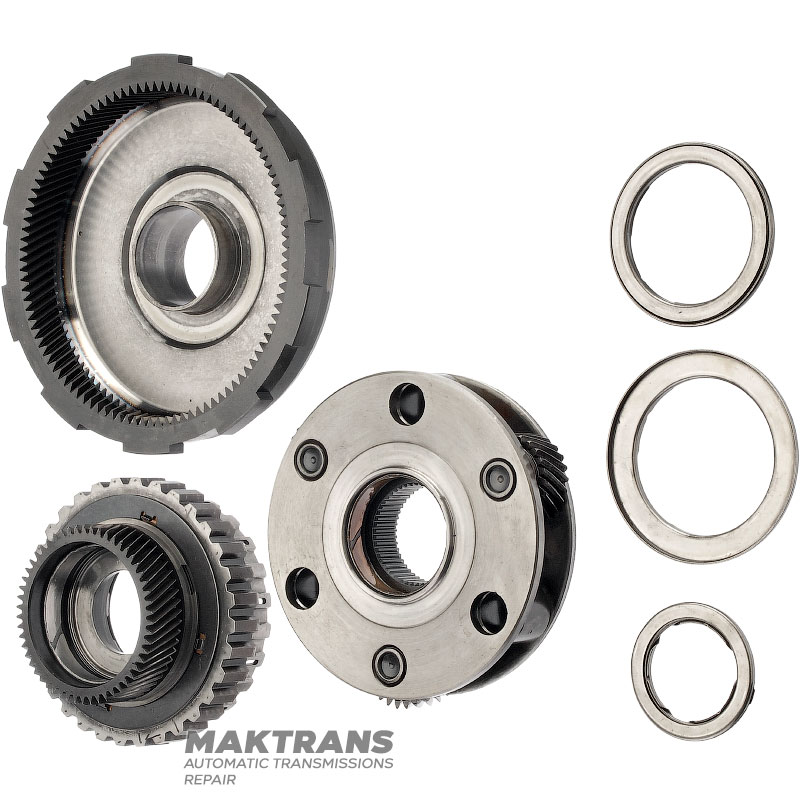

Planetary gear FORWARD CD4E FW5319651, FW5319301, FW5319301A — 3 satellites (24 teeth), ring gear 102 teeth, sun gear 54 teeth (outer Ø 69.50 mm)

Planetary gear:

• Overall height - 31 mm;
• Outer body diameter - 121.10 mm;
• Number of splines on the inner side - 49 pcs.;
• Inner diameter of the sleeve - 42.90 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 24 pcs.;

Ring gear:

• Overall height - 47 mm;
• The inner diameter of the central hole is 38.70 mm;
• Outer diameter - 143.85 mm;
• Outer diameter of gear ring - 153.85 mm;
• Number of teeth on the gear ring - 10 pcs.;
• Number of splines on the neck - 61 pcs.;
• The outer diameter of the splined part is 46.25 mm;

Sun gear, Forward overrunning clutch, Coast Clutch hub:

• Overall height - 59 mm;

Solar gear:

• Number of teeth - 54 pcs.;
• Outer diameter - 69.50 mm;
• Inner diameter of the sleeve - 52.30 mm;

Forward Clutch:

• Outer diameter - 105.80 mm;
• Number of teeth - 32 pcs.;
• Width - 15.75 mm;

Coast Clutch Hub:

• Number of teeth - 24 pcs.;
• Outer diameter - 93.65 mm;
