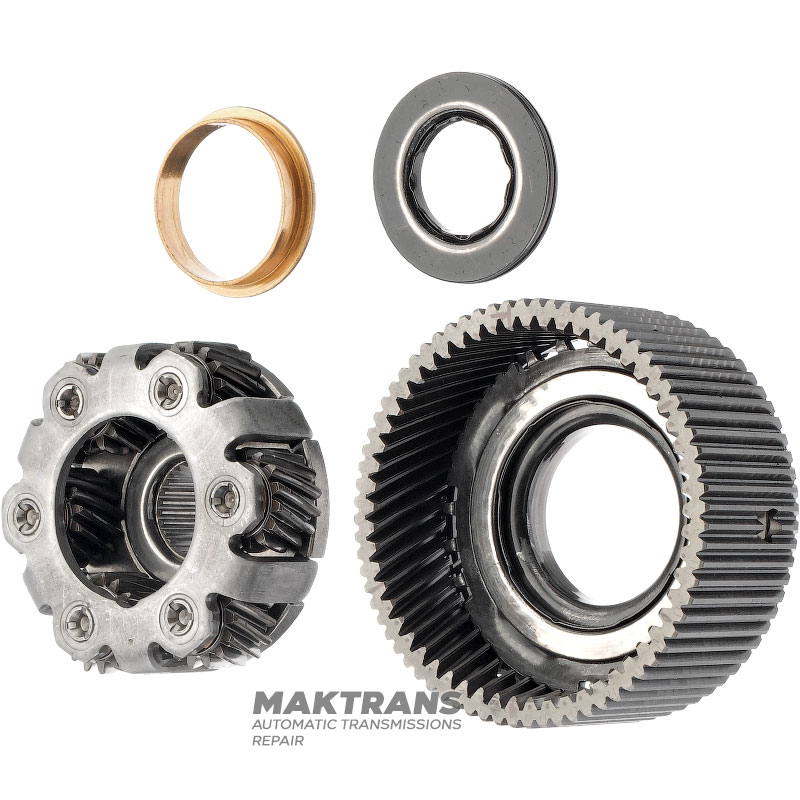

Planetary gear FORWARD FORD A4LD, 4R44E, 4R55E, 5R44E, 5R55E P92GT-7D055-AAR — 6 satellites (15 teeth per satellite, outer Ø 24.40 mm)

Planetary gear:

• Overall height - 46.50 mm;
• Outer diameter of the neck - 37.90 mm;
• Outer body diameter - 77.70 mm;
• Number of splines on the inner side - 27 pcs.;
• Number of satellites - 6 pcs.;
• Number of teeth on the satellite - 15 pcs.;

Ring gear:

• Overall height - 42 mm;
• Outer diameter - 93.90 mm;
• Number of teeth on the outer side - 72 pcs.;
• Number of teeth on the ring gear - 57 pcs.;
• The inner diameter of the sleeve is 38 mm.;
