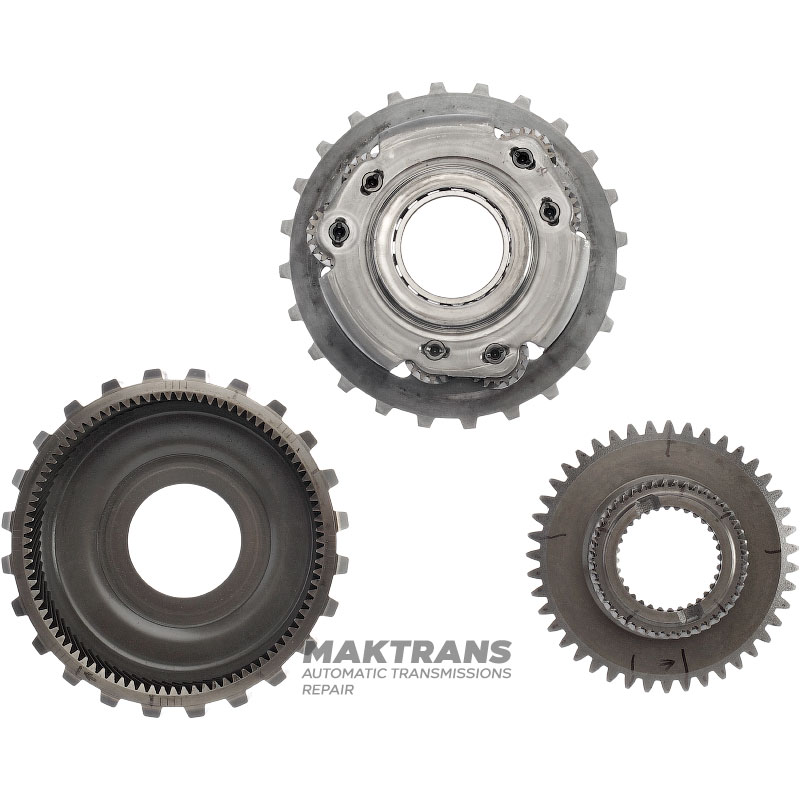

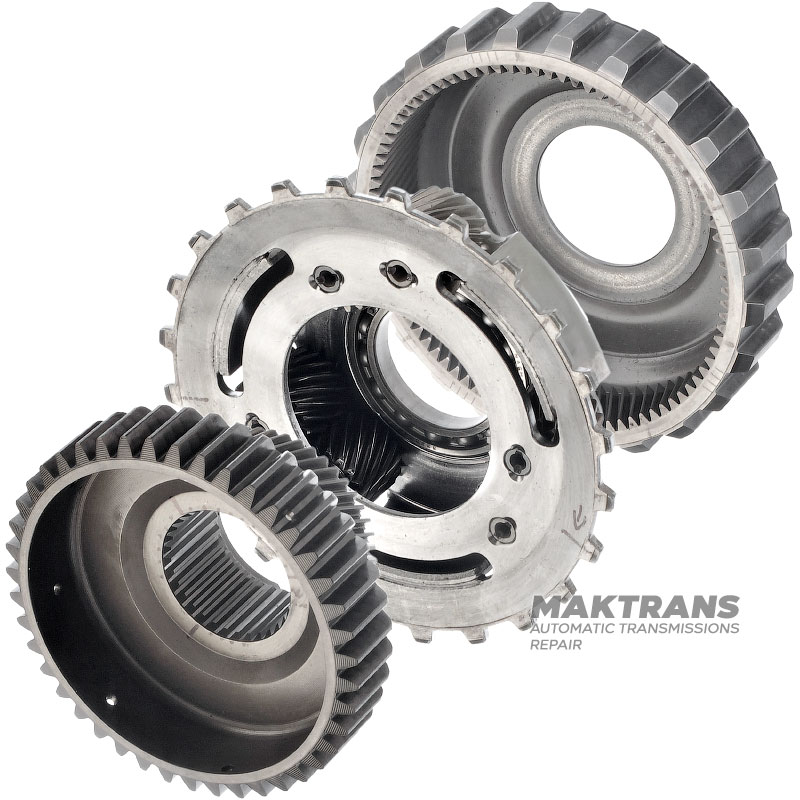

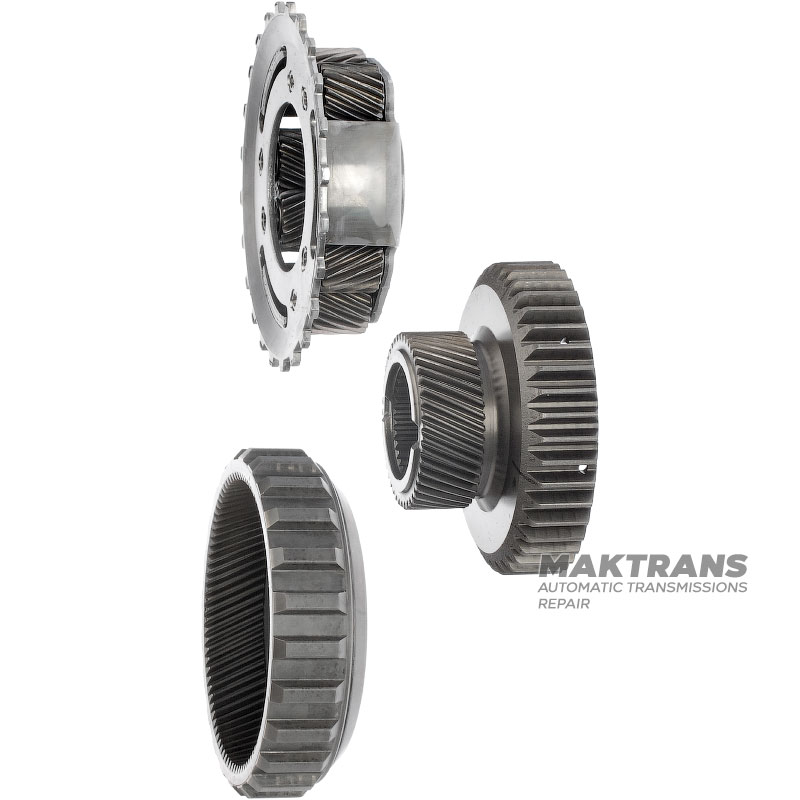

Planetary gear HONDA JDJC M3WC (3x3 pinions / 17 x 18 teeth, ring gear 87 teeth, sun gear 45 teeth (outer Ø 51.05 mm)

Planetary gear:

• Total height - 35 mm;
• Number of satellites - 3 / 3 pcs.;
• The number of teeth on the pinions is 17 teeth (sun gear side) / 18 teeth (ring gear side);
• Number of teeth on the ring gear - 24 pcs.;
• The outer diameter of the ring gear is 118.25 mm;
• The inner diameter of the central ball bearing is 33.05 mm;
• Bearing marking - NACHI 33BC04R1;

Sun gear:

• Total height - 47.40 mm;
• The number of teeth on the gear is 45 pcs.;
• Gear outer diameter - 51.05 mm;
• The number of slots on the inside is 32 pcs.;
• The outer diameter of the hub gear is 90.55 mm;
• Number of teeth on the hub - 43 pcs.;

Ring gear:

• Total height - 34.55 mm;
• Inner diameter - 38.15 mm;
• Number of teeth on the gear - 87 pcs.;
• Number of teeth on the outside - 24 pcs.;
• Gear outer diameter - 114.15 mm;

Tags: 235115T0000 23500R3W000 235205T0000
