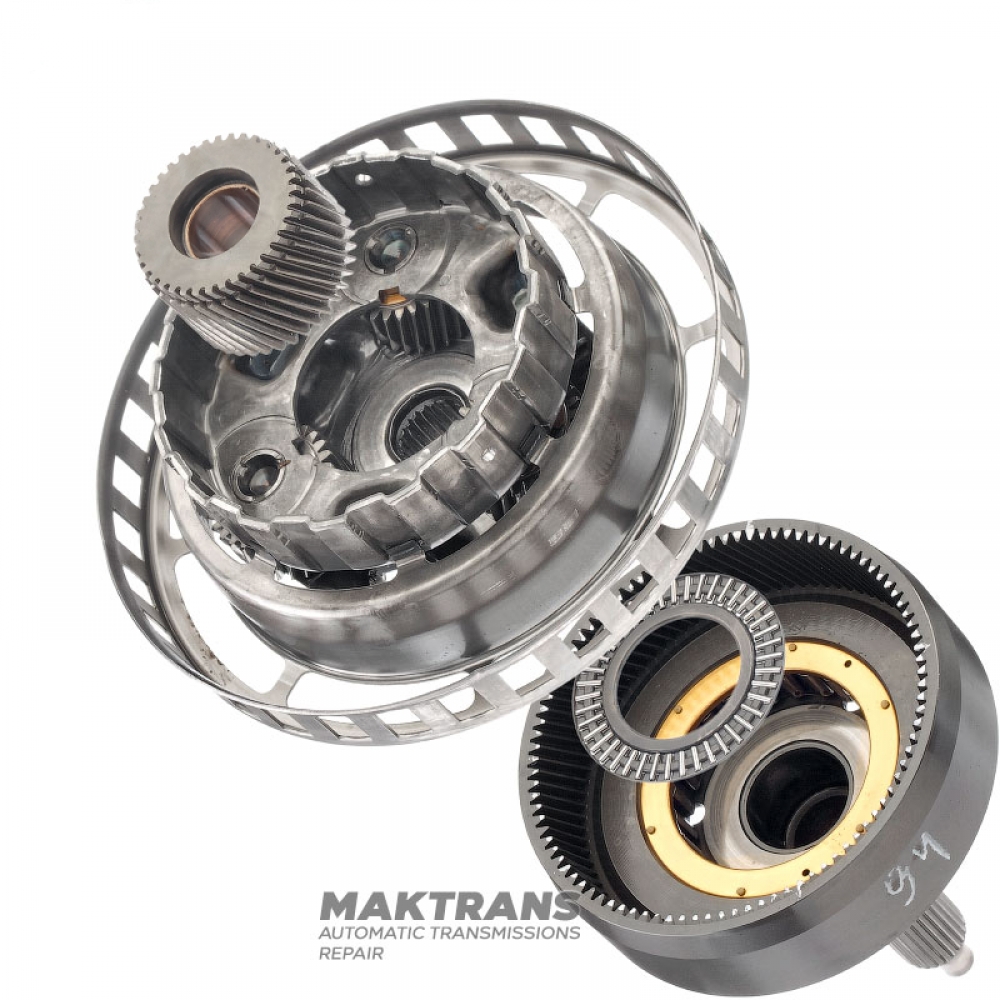

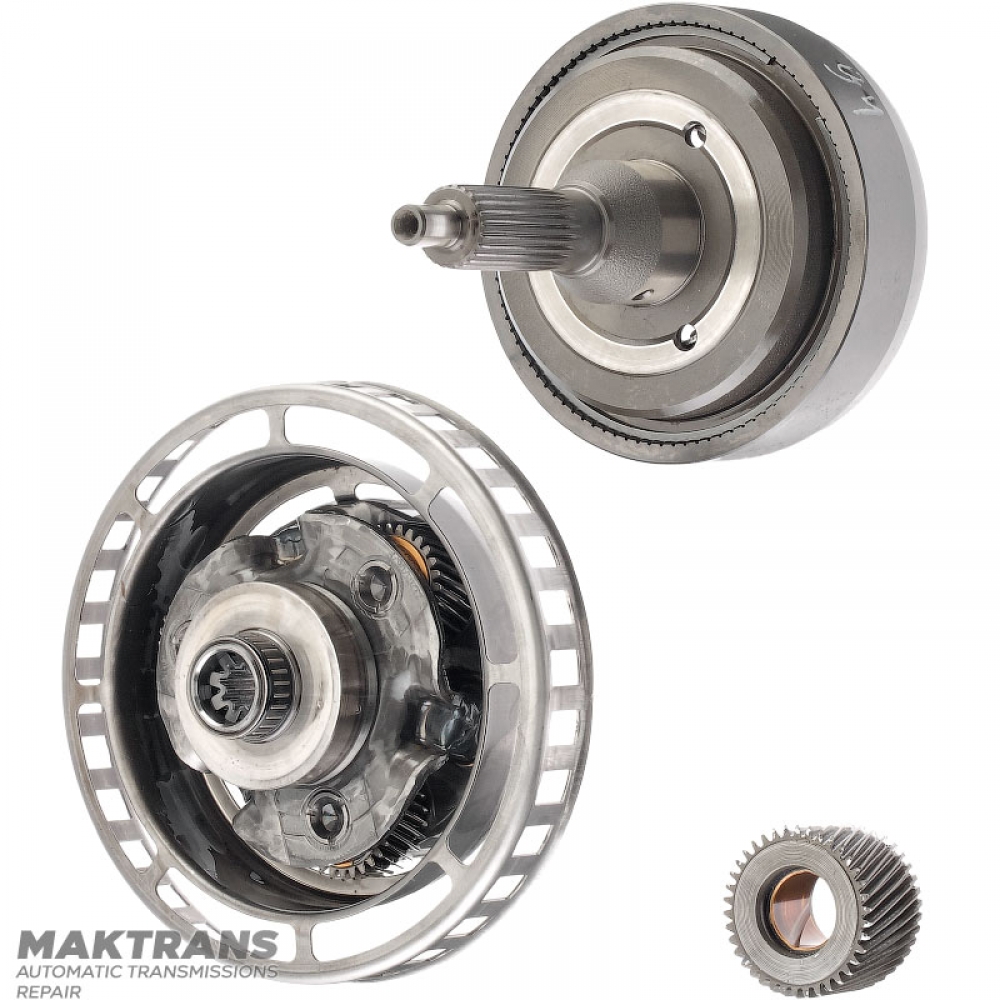

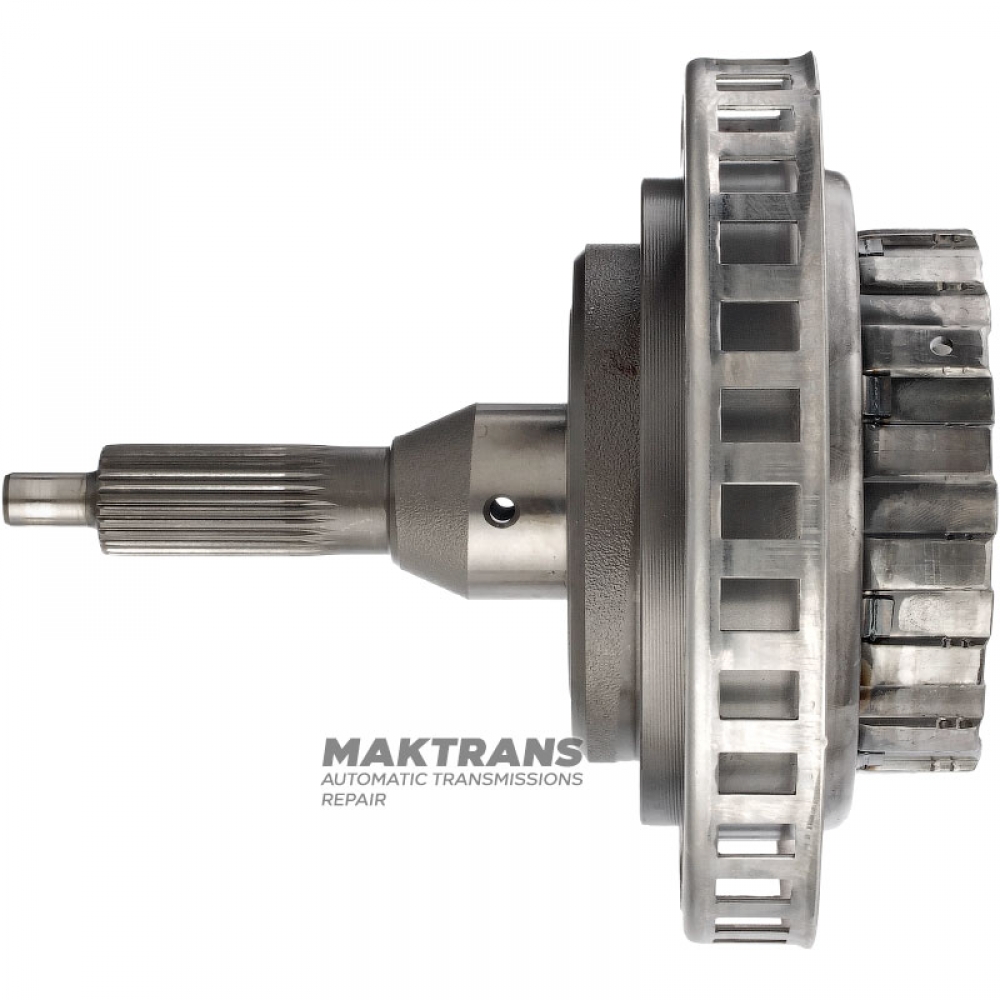

Planetary gear Intermediate FORD 5R55N, 5R55W, 5R55S — 3 satellites (28 teeth), sun gear 38 teeth (outer Ø 44.10 mm), ring gear 94 teeth (outer Ø 117.50 mm)

Planetary gear:

• Overall height - 82 mm;
• The outer diameter of the working part of the overrunning clutch is 54.75 mm;
• The outer diameter of the speed sensor ring is 159.75 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on the satellite - 28 pcs.;

Ring gear:

• Total height - 150 mm;
• Number of splines on the shaft - 25 pcs.;
• The outer diameter of the splined part is 20.50 mm;
• The outer diameter of the shaft nose is 10 mm;
• The outer diameter of the working part of the shaft at the base is 36 pcs.;
• Number of teeth on the ring gear - 94 pcs.;
• The outer diameter of the ring gear is 117.15 mm;

Sun gear:

• Overall height - 28/75 mm;
• Number of teeth - 38 pcs.;
• Gear outer diameter - 44.10 mm;
• The inner diameter of the sleeve is 19 mm;
