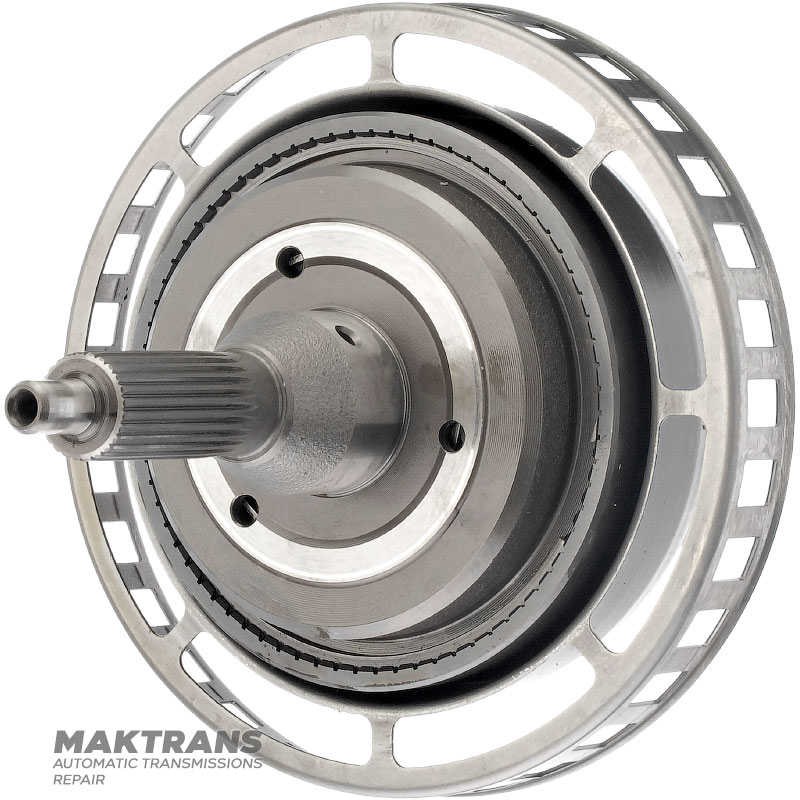

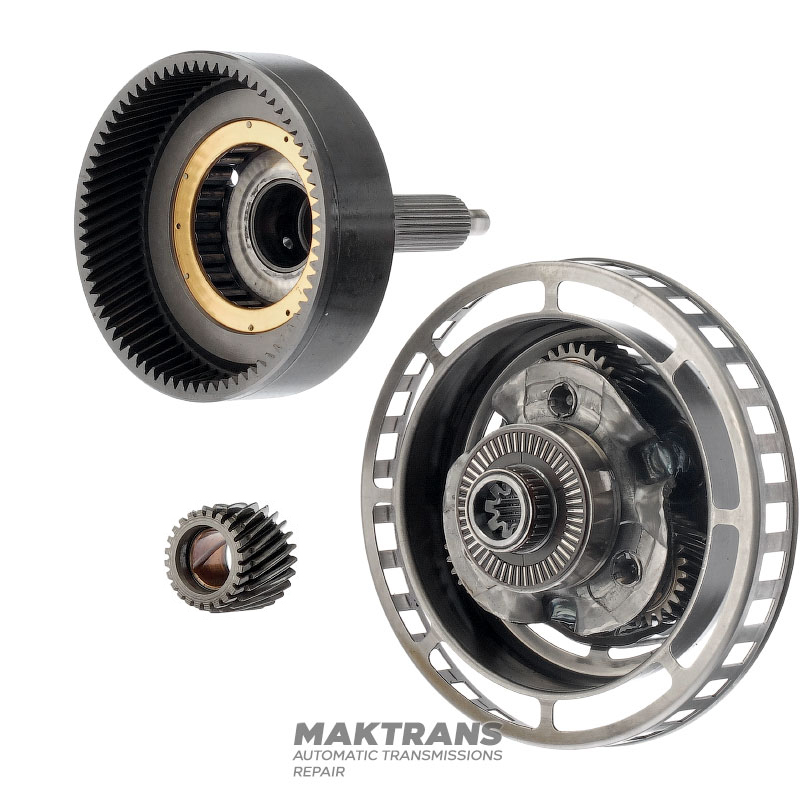

Planetary gear Intermediate FORD 5R55N, 5R55W, 5R55S — 3 satellites (25 teeth), sun gear 24 teeth (outer Ø 37.15 mm), ring gear 72 teeth (outer Ø 115.40 mm)

Planetary gear:

• Overall height - 82 mm;
• The outer diameter of the working part of the overrunning clutch is 54.80 mm;
• The outer diameter of the speed sensor ring is 159.75 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on the satellite - 25 pcs.;

Ring gear:

• Total height - 150 mm;
• Number of splines on the shaft - 25 pcs.;
• The outer diameter of the splined part is 20.45 mm;
• The outer diameter of the shaft nose is 10 mm;
• The outer diameter of the working part of the shaft at the base is 36 pcs.;
• Number of teeth on the ring gear - 72 pcs.;
• The outer diameter of the ring gear is 115.60 mm;

Sun gear:

• Total height - 30 mm;
• Number of teeth - 24 pcs.;
• Gear outer diameter - 37.15 mm;
• The inner diameter of the sleeve is 19 mm;

Tags: XW4Z-7L678-AB, 4L2Z-7L678-AA, F3TZ-7A153-A, 1W4Z-7L495-AA, XW4Z-7B446-BA, 2L2Z-7B446-AA, YW4Z-7660-AA, 2L2Z-7660-AA, F7RZ-7D063-AA, 9L2Z-7D063-A
