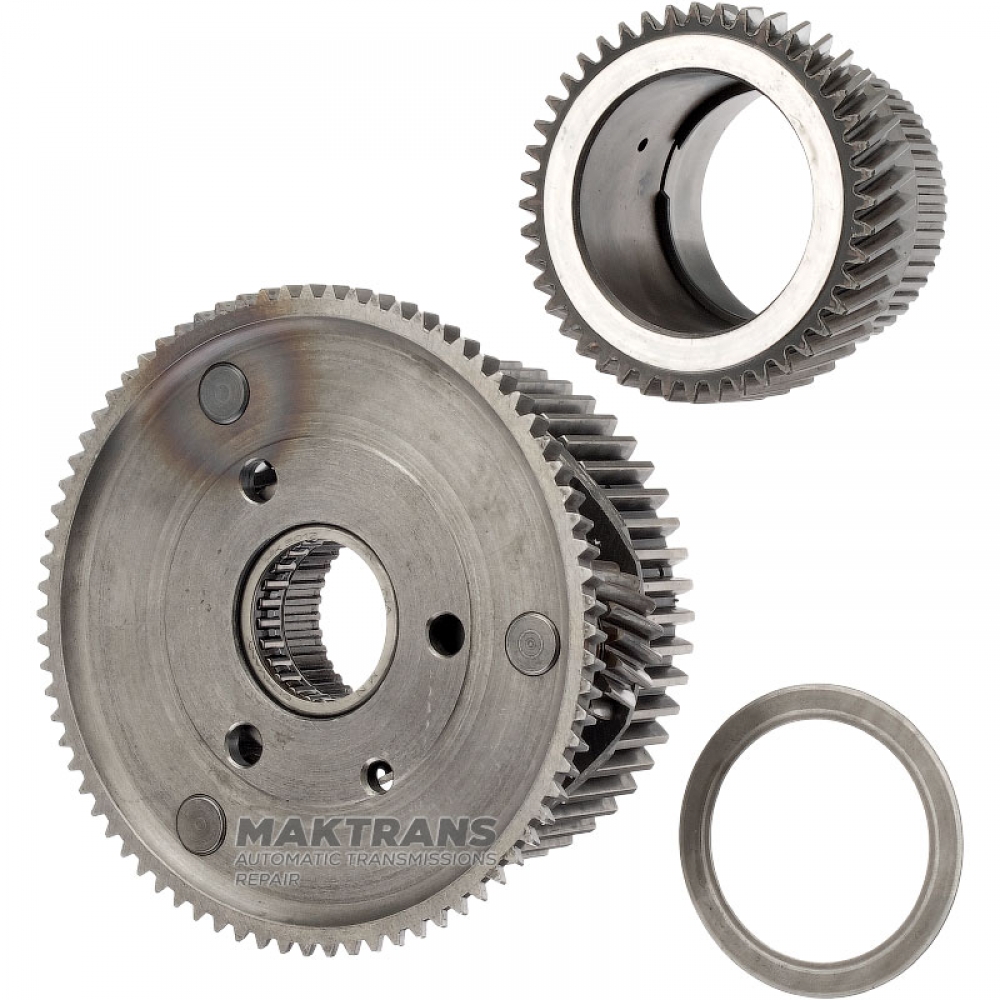

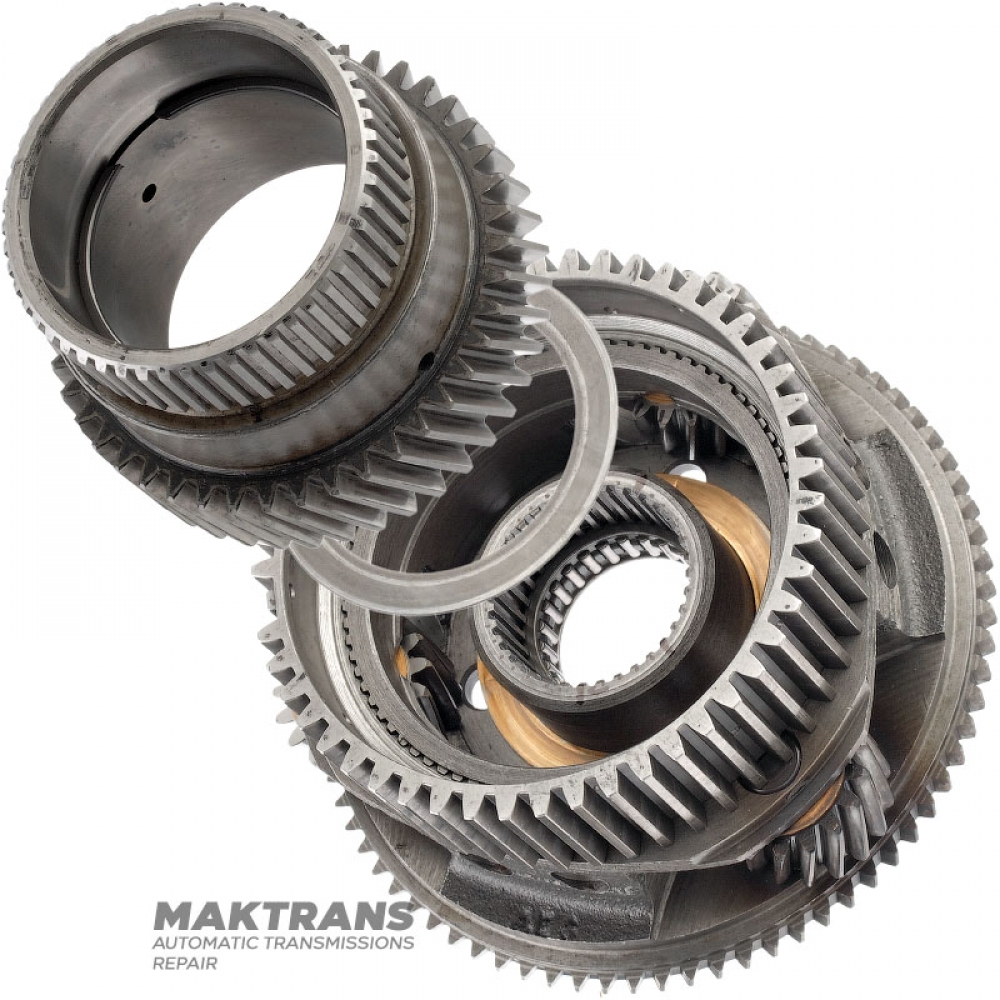

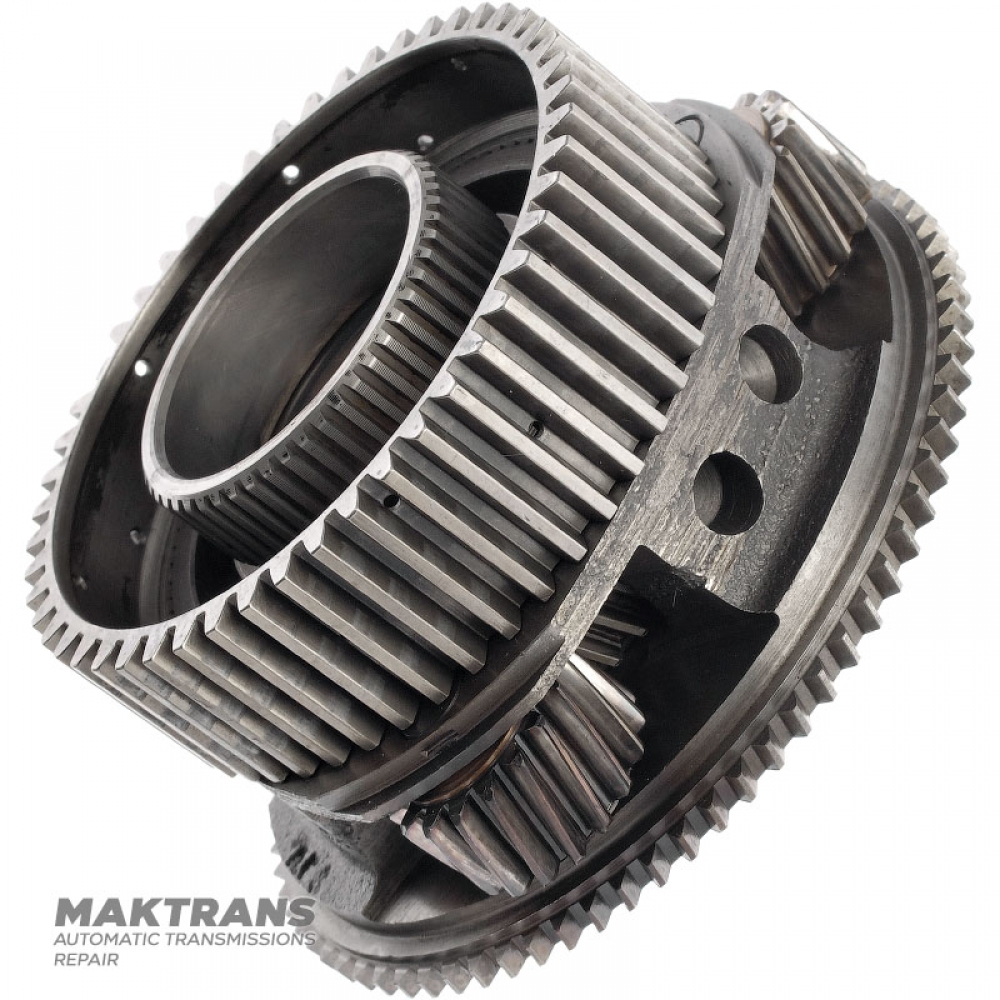

Planetary gear Intermediate Mercedes-Benz 722.0, 722.1, 722.2 — 3 satellites (17 teeth), sun gear 44 teeth (outer Ø 70.95 mm)

Planetary gear:

• Overall height - 59 mm;
• Number of splines on the inner side - 35 pcs.;
• Number of teeth on the hub - 51 pcs.;
• Hub outer diameter - 101.20 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 17 pcs.;
• The outer diameter of the gear ring is 126.25 mm;

Sun gear:

• Overall height - 50.35 mm;
• Number of splines - 53 pcs.;
• Outer diameter of spline part - 54.90 mm;
• Number of teeth on the gear - 44 pcs.;
• Gear outer diameter - 70.90 mm;

Tags: A 000 981 99 10, A 116 270 10 43, A 002 981 32 10, A0009819910, A1162701043, A0029813210
